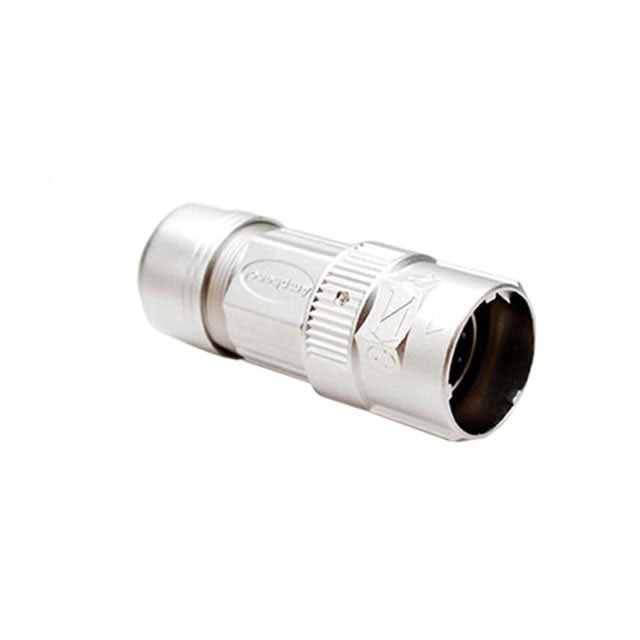

MA5CAE1200-S2

Active

Amphenol Sine Systems Corp

CONN PLUG HSNG F/M 12POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMotionGrade MotionGrade DIN M23/M40 +1

MA5CAE1200-S2

Active

Amphenol Sine Systems Corp

CONN PLUG HSNG F/M 12POS INLINE

Deep-Dive with AI

DocumentsMotionGrade MotionGrade DIN M23/M40 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MA5CAE1200-S2

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1 mm
Contact Type	Crimp
Fastening Type	Push-Twist
Features	Coupling Nut, Backshell
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-12
Shielding	Shielded
Type	For Female Sockets or Male Pins

MA5CAE Series

Part	Orientation	Contact Shape	Housing Color	Shell Finish	Shell Material	Contact Type	Connector Type	Insert Material	Shell Size - Insert	Ingress Protection	Material Flammability Rating	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Note	Type	Contact Size	Fastening Type	Primary Material	Termination	Voltage Rating	Color	Current Rating (Amps)	Number of Positions	Contact Finish - Mating	Number of Positions
Amphenol Sine Systems Corp MA5CAE1700-S2	N	Circular	Silver	Nickel	Zinc Die Cast	Crimp	Plug Housing	Polyamide (PA66) Nylon 6/6	M23-17	IP67 - Dust Tight Waterproof	UL94 V-0	Backshell Coupling Nut	Free Hanging (In-Line)	-20 C	130 °C	Shielded	Contacts Not Included	For Female Sockets or Male Pins	1 mm	Push-Twist
Amphenol Sine Systems Corp MA5CAE1200S-S1-KIT	N			Nickel	Zinc Die Cast		Female Sockets Plug		M23-12	IP67 - Dust Tight Waterproof		Backshell Coupling Nut	Free Hanging (In-Line)	-20 C	130 °C	Shielded				Push-Twist	Metal	Crimp	160 V	Silver	10 A	12	Gold
Amphenol Sine Systems Corp MA5CAE1200S-S3-KIT	N			Nickel	Zinc Die Cast		Female Sockets Plug		M23-12	IP67 - Dust Tight Waterproof		Backshell Coupling Nut	Free Hanging (In-Line)	-20 C	130 °C	Shielded				Push-Twist	Metal	Crimp	160 V	Silver	10 A	12	Gold
Amphenol Sine Systems Corp MA5CAE1200S-S2-KIT	N			Nickel	Zinc Die Cast		Female Sockets Plug		M23-12	IP67 - Dust Tight Waterproof		Backshell Coupling Nut	Free Hanging (In-Line)	-20 C	130 °C	Shielded				Push-Twist	Metal	Crimp	160 V	Silver	10 A	12	Gold
Amphenol Sine Systems Corp MA5CAE1200-S2	N	Circular	Silver	Nickel	Zinc Die Cast	Crimp	Plug Housing	Polyamide (PA66) Nylon 6/6	M23-12	IP67 - Dust Tight Waterproof	UL94 V-0	Backshell Coupling Nut	Free Hanging (In-Line)	-20 C	130 °C	Shielded	Contacts Not Included	For Female Sockets or Male Pins	1 mm	Push-Twist						12
Amphenol Sine Systems Corp MA5CAE1600-S1	N	Circular	Silver	Nickel	Zinc Die Cast	Crimp	Plug Housing	Polyamide (PA66) Nylon 6/6	M23-16	IP67 - Dust Tight Waterproof	UL94 V-0	Backshell Coupling Nut	Free Hanging (In-Line)	-20 C	130 °C	Shielded	Contacts Not Included	For Female Sockets or Male Pins	1 mm	Push-Twist								16
Amphenol Sine Systems Corp MA5CAE1200-S2-KIT	N			Nickel	Zinc Die Cast		Male Pins Plug		M23-12	IP67 - Dust Tight Waterproof		Backshell Coupling Nut	Free Hanging (In-Line)	-20 C	130 °C	Shielded				Push-Twist	Metal	Crimp	160 V	Silver	10 A	12	Gold
Amphenol Sine Systems Corp MA5CAE1700-S3-KIT	N			Nickel	Zinc Die Cast		Male Pins Plug		M23-17	IP67 - Dust Tight Waterproof		Backshell Coupling Nut	Free Hanging (In-Line)	-20 C	130 °C	Shielded				Push-Twist	Metal	Crimp	125 VAC	Silver	9 A		Gold
Amphenol Sine Systems Corp MA5CAE1700S-S2-KIT	N			Nickel	Zinc Die Cast		Female Sockets Plug		M23-17	IP67 - Dust Tight Waterproof		Backshell Coupling Nut	Free Hanging (In-Line)	-20 C	130 °C	Shielded				Push-Twist	Metal	Crimp	125 VAC	Silver	9 A		Gold
Amphenol Sine Systems Corp MA5CAE1200-S1-KIT	N			Nickel	Zinc Die Cast		Male Pins Plug		M23-12	IP67 - Dust Tight Waterproof		Backshell Coupling Nut	Free Hanging (In-Line)	-20 C	130 °C	Shielded				Push-Twist	Metal	Crimp	160 V	Silver	10 A	12	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 16.94
		300	$ 16.01
		500	$ 15.54

Description

General part information

MA5CAE Series

12 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
