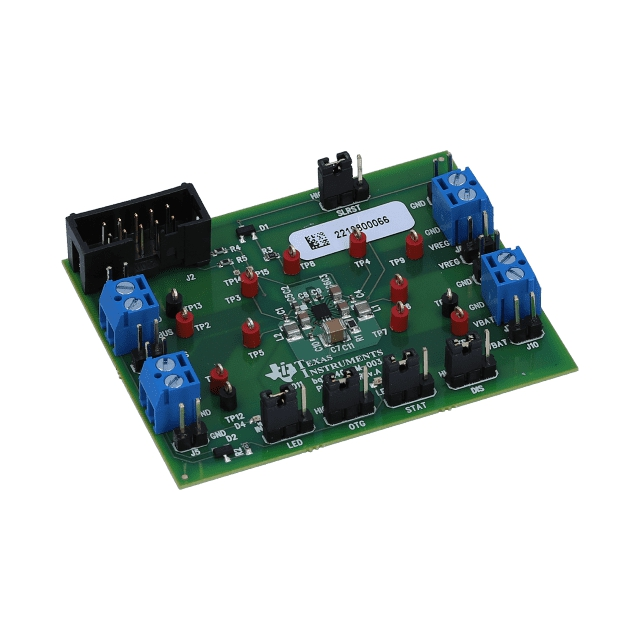

BQ24140EVM-003
ActiveEVAL MODULE FOR BQ24140-003
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ24140EVM-003 | BQ24140 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion/Polymer |
| Battery Pack Voltage | - | 4.44 V |
| Charge Current - Max | - | 1.5 A |
| Contents | Board(s) | Board(s) |
| Current - Charging | - | Constant - Programmable |
| Embedded | False | False |
| Fault Protection | - | Over Voltage, Over Temperature |
| Function | Battery Charger | Battery Charger |
| Interface | - | I2C |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 1 |
| Operating Temperature | - | -30 °C |
| Operating Temperature | - | 85 C |
| Package / Case | - | 30-UFBGA, DSBGA |
| Primary Attributes | Li-Ion / Li-Pol (1 Cell) | Li-Ion / Li-Pol (1 Cell) |
| Programmable Features | - | Current, Timer |
| Secondary Attributes | On-Board LEDs | On-Board LEDs |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 30-DSBGA |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ24140 | BQ24140 |
| Voltage - Supply (Max) | - | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 118.80 | |
BQ24140 Series
1.5-A Dual input Switchmode charger with USB-OTG Support
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Current - Charging | Charge Current - Max [Max] | Package / Case | Battery Pack Voltage | Number of Cells | Mounting Type | Fault Protection | Supplier Device Package | Battery Chemistry | Interface | Programmable Features | Voltage - Supply (Max) [Max] | Contents | Embedded | Type | Function | Secondary Attributes | Supplied Contents | Primary Attributes | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ24140YFFT | -30 °C | 85 C | Constant - Programmable | 1.5 A | 30-UFBGA, DSBGA | 4.44 V | 1 | Surface Mount | Over Temperature, Over Voltage | 30-DSBGA | Lithium Ion/Polymer | I2C | Current, Timer | 9 V | ||||||||
Texas Instruments BQ24140YFFR | -30 °C | 85 C | Constant - Programmable | 1.5 A | 30-UFBGA, DSBGA | 4.44 V | 1 | Surface Mount | Over Temperature, Over Voltage | 30-DSBGA | Lithium Ion/Polymer | I2C | Current, Timer | 9 V | ||||||||
Texas Instruments BQ24140EVM-003 | Board(s) | Power Management | Battery Charger | On-Board LEDs | Board(s) | Li-Ion / Li-Pol (1 Cell) | BQ24140 |
Description
General part information
BQ24140 Series
The bq24140 is a compact, flexible, high-efficiency, USB-friendly switch-mode charge management device for single-cell Li-ion and Li-polymer batteries used in a wide range of portable applications. The charge parameters can be programmed through an I2C interface. The IC integrates two synchronous PWM chargers, power MOSFETs, input current sensing, high-accuracy current and voltage regulation, and charge termination, into a small WCSP package.
The IC charges the battery in three phases: conditioning, constant current and constant voltage. The input current is automatically limited to the value set by the host. Charge is terminated based on user-selectable minimum current level. A safety timer with reset control provides a safety backup for I2C interface. During normal operation, the IC automatically restarts the charge cycle if the battery voltage falls below an internal threshold and automatically enters sleep mode or high impedance mode when the input supply is removed. The charge status can be reported to the host using the I2C interface. During the charging process, the IC monitors its junction temperature (TJ) and reduces the charge current once TJincreases to 125°C typical. To support USB OTG device, the IC can provide VBUS (5.05V typical) by boosting the battery voltage. The IC is available in 30-pin WCSP package.
The bq24140 is a compact, flexible, high-efficiency, USB-friendly switch-mode charge management device for single-cell Li-ion and Li-polymer batteries used in a wide range of portable applications. The charge parameters can be programmed through an I2C interface. The IC integrates two synchronous PWM chargers, power MOSFETs, input current sensing, high-accuracy current and voltage regulation, and charge termination, into a small WCSP package.
