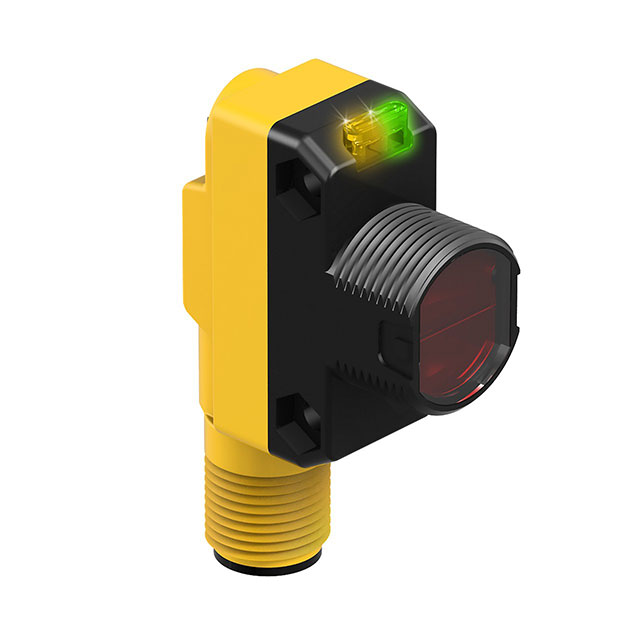

QS18K6AF120Q8

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, WORLD-BEAM QS18, BACKGROUND SUPPRESSION, 120 MM, PUSH PULL, 10 TO 30 VDC

Search across all available documentation for this part.

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, WORLD-BEAM QS18, BACKGROUND SUPPRESSION, 120 MM, PUSH PULL, 10 TO 30 VDC

Technical Specifications

Parameters and characteristics for this part

Part	Connection Method	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Ingress Protection	Response Time	Light Source	Light Source	Output Configuration	Sensing Distance	Sensing Distance
BANNER ENGINEERING QS18K6AF250Q5	Connector	55 °C	-20 C	Background Suppression	30 VDC	10 VDC	IP67 NEMA 6P	2.8 ms	Red	640 nm	NPN/PNP - Dark-ON/Light-ON
BANNER ENGINEERING QS18K6AF120Q8	Connector	55 °C	-20 C	Background Suppression	30 VDC	10 VDC	IP67 NEMA 6P	2.8 ms	Red	640 nm	NPN/PNP - Dark-ON/Light-ON	120 mm	4.724 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Background Suppression Optical Sensor 4.724" (120mm) NPN/PNP - Dark-ON/Light-ON
