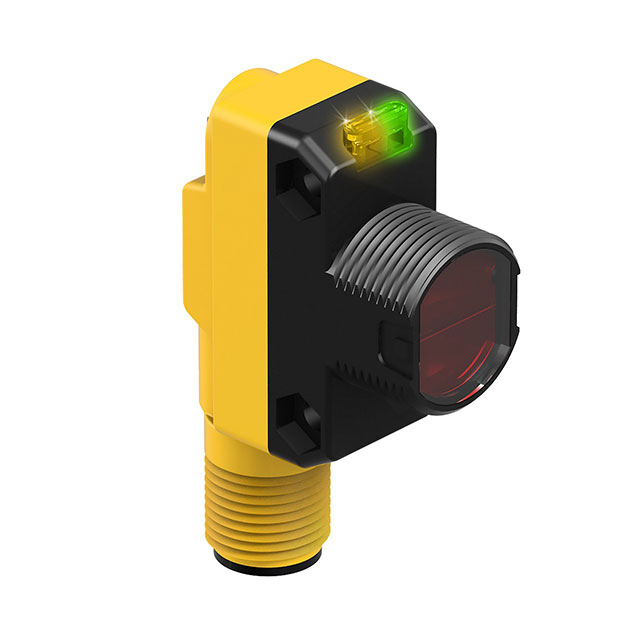

QS18K6AF250Q5
ActiveBANNER ENGINEERING
PHOTO SEN 250MM PNP/NPN IO-LINK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QS18K6AF250Q5
ActiveBANNER ENGINEERING
PHOTO SEN 250MM PNP/NPN IO-LINK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QS18K6AF250Q5 |
|---|---|
| Connection Method | Connector |
| Ingress Protection | NEMA 6P, IP67 |
| Light Source | Red |
| Light Source | 640 nm |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Output Configuration | NPN/PNP - Dark-ON/Light-ON |
| Response Time | 2.8 ms |
| Sensing Method | Background Suppression |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 138.00 | |
Description
General part information
QS18K6 Series
Background Suppression Optical Sensor 9.843" (250mm) NPN/PNP - Dark-ON/Light-ON
