305-052-556-568
ActiveEDAC Inc.

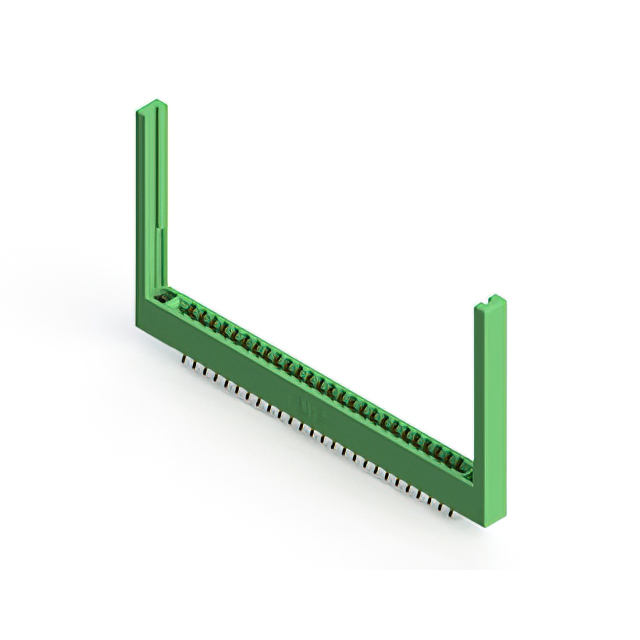

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 52 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
305-052-556-568
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 52 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 305-052-556-568 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 52 |
| Number of Positions/Bay/Row [custom] | 26 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
305-052 Series
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Number of Rows | Termination | Termination Rows | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row [custom] | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Contact Material | Contact Type | Features | Card Type | Pitch [x] | Pitch [x] | Number of Positions | Read Out | Mounting Type | Gender | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 2 | Solder | 2 | Gold | -40 °C | 105 ░C | 26 | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Copper Alloy | Semi Bellows | Card Extender | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 52 | Dual | Board Edge Straddle Mount | Female | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 2 | Solder | 2 | Gold | -40 °C | 105 ░C | 26 | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Copper Alloy | Semi Bellows | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 52 | Dual | Board Edge Straddle Mount | Female | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 2 | Solder | 2 | Gold | -40 °C | 105 ░C | 26 | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Copper Alloy | Semi Bellows | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 52 | Dual | Panel Mount Through Hole | Female | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 2 | Solder | 2 | Gold | -40 °C | 105 ░C | 26 | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Copper Alloy | Semi Bellows | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 52 | Dual | Panel Mount Through Hole | Female | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 2 | Solder | 2 | Gold | -40 °C | 105 ░C | 26 | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Copper Alloy | Semi Bellows | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 52 | Dual | Panel Mount Through Hole | Female | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 2 | Solder | 2 | Gold | -40 °C | 105 ░C | 26 | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Copper Alloy | Semi Bellows | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 52 | Dual | Panel Mount Through Hole | Female | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 2 | Solder | 2 | Gold | -40 °C | 105 ░C | 26 | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Copper Alloy | Semi Bellows | Card Extender | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 52 | Dual | Board Edge Straddle Mount | Female | 3.96 mm | 0.156 in |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 2 | Solder Eyelet(s) | 2 | Gold | -40 °C | 105 ░C | 26 | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Copper Alloy | Semi Bellows | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 52 | Dual | Female | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 2 | Solder | 2 | Gold | -40 °C | 105 ░C | 26 | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Copper Alloy | Semi Bellows | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 52 | Dual | Panel Mount Through Hole | Female | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 2 | Solder | 2 | Gold | -40 °C | 105 ░C | 26 | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Copper Alloy | Semi Bellows | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 52 | Dual | Panel Mount Through Hole | Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
305-052 Series
52 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
