305-052-500-507

Active

EDAC Inc.

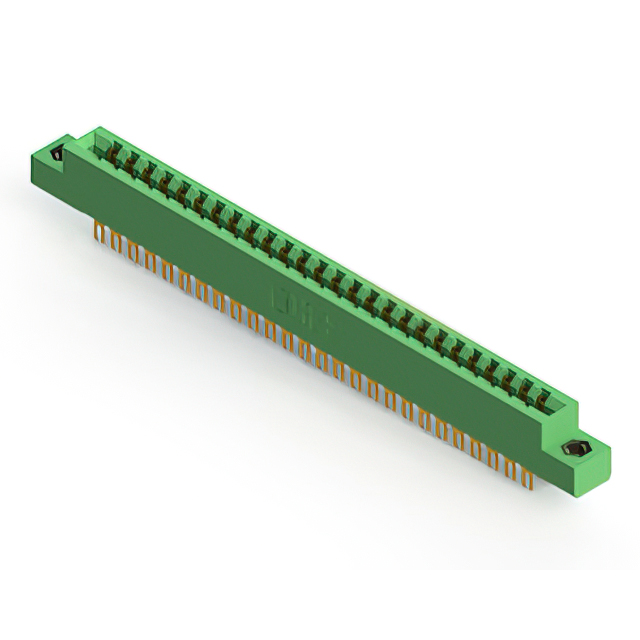

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 52 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

305-052-500-507

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 52 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	305-052-500-507

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Number of Positions	52
Number of Positions/Bay/Row [custom]	26
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

305-052 Series

Part	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Number of Rows	Termination	Termination Rows	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row [custom]	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation	Contact Material	Contact Type	Features	Card Type	Pitch [x]	Pitch [x]	Number of Positions	Read Out	Mounting Type	Gender	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 305-052-555-208	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	2	Solder	2	Gold	-40 °C	105 ░C	26	4-40 Flush Mount Threaded Insert Top Opening	10 Áin	0.25 Ám	Polyester Thermoplastic	Copper Alloy	Semi Bellows	Card Extender	Non Specified - Dual Edge	0.156 in	3.96 mm	52	Dual	Board Edge Straddle Mount	Female
EDAC Inc. 305-052-556-568	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	2	Solder	2	Gold	-40 °C	105 ░C	26	4-40 Flush Mount Threaded Insert Top Opening	10 Áin	0.25 Ám	Polyester Thermoplastic	Copper Alloy	Semi Bellows		Non Specified - Dual Edge	0.156 in	3.96 mm	52	Dual	Board Edge Straddle Mount	Female
EDAC Inc. 305-052-521-558	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	2	Solder	2	Gold	-40 °C	105 ░C	26	4-40 Flush Mount Threaded Insert Top Opening	10 Áin	0.25 Ám	Polyester Thermoplastic	Copper Alloy	Semi Bellows		Non Specified - Dual Edge	0.156 in	3.96 mm	52	Dual	Panel Mount Through Hole	Female
EDAC Inc. 305-052-521-507	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	2	Solder	2	Gold	-40 °C	105 ░C	26	Flush Mount M3 Threaded Insert Top Opening	10 Áin	0.25 Ám	Polyester Thermoplastic	Copper Alloy	Semi Bellows		Non Specified - Dual Edge	0.156 in	3.96 mm	52	Dual	Panel Mount Through Hole	Female
EDAC Inc. 305-052-520-558	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	2	Solder	2	Gold	-40 °C	105 ░C	26	4-40 Flush Mount Threaded Insert Top Opening	10 Áin	0.25 Ám	Polyester Thermoplastic	Copper Alloy	Semi Bellows		Non Specified - Dual Edge	0.156 in	3.96 mm	52	Dual	Panel Mount Through Hole	Female
EDAC Inc. 305-052-521-207	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	2	Solder	2	Gold	-40 °C	105 ░C	26	Flush Mount M3 Threaded Insert Top Opening	10 Áin	0.25 Ám	Polyester Thermoplastic	Copper Alloy	Semi Bellows		Non Specified - Dual Edge	0.156 in	3.96 mm	52	Dual	Panel Mount Through Hole	Female
EDAC Inc. 305-052-555-204	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	2	Solder	2	Gold	-40 °C	105 ░C	26	Flush Mount Top Opening Unthreaded	10 Áin	0.25 Ám	Polyester Thermoplastic	Copper Alloy	Semi Bellows	Card Extender	Non Specified - Dual Edge	0.156 in	3.96 mm	52	Dual	Board Edge Straddle Mount	Female	3.96 mm	0.156 in
EDAC Inc. 305-052-500-507	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	2	Solder Eyelet(s)	2	Gold	-40 °C	105 ░C	26	Flush Mount M3 Threaded Insert Top Opening	10 Áin	0.25 Ám	Polyester Thermoplastic	Copper Alloy	Semi Bellows		Non Specified - Dual Edge	0.156 in	3.96 mm	52	Dual		Female
EDAC Inc. 305-052-521-568	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	2	Solder	2	Gold	-40 °C	105 ░C	26	4-40 Flush Mount Threaded Insert Top Opening	10 Áin	0.25 Ám	Polyester Thermoplastic	Copper Alloy	Semi Bellows		Non Specified - Dual Edge	0.156 in	3.96 mm	52	Dual	Panel Mount Through Hole	Female
EDAC Inc. 305-052-520-208	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	2	Solder	2	Gold	-40 °C	105 ░C	26	4-40 Flush Mount Threaded Insert Top Opening	10 Áin	0.25 Ám	Polyester Thermoplastic	Copper Alloy	Semi Bellows		Non Specified - Dual Edge	0.156 in	3.96 mm	52	Dual	Panel Mount Through Hole	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 14.69
Newark	Each	1	$ 13.57
		100	$ 11.31
		250	$ 9.92
		500	$ 8.96
		1000	$ 7.08

Description

General part information

305-052 Series

52 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
