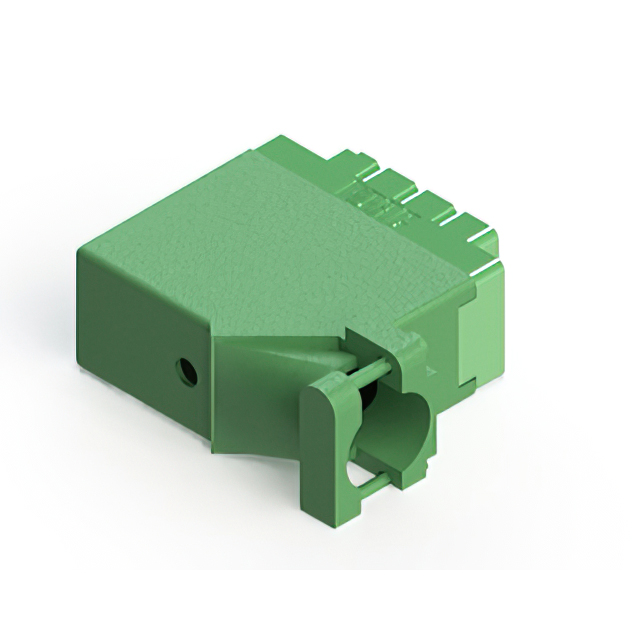

516-038-500-646
ActiveEDAC Inc.
RACK & PANEL CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
516-038-500-646
ActiveEDAC Inc.
RACK & PANEL CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 516-038-500-646 |
|---|---|
| Color | Green |
| Connector Style | Rack and Panel |
| Connector Type | Housing for Non-Gendered Contacts |
| Connector Usage | Receptacle |
| Features | Backshell, Jackscrew Socket |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 38 |
| Number of Rows | 9 |
| Pitch [x] | 0.15 in |
| Pitch [x] | 3.81 mm |
516-038 Series
...
| Part | Features | Pitch [x] | Pitch [x] | Connector Style | Mounting Type | Color | Connector Type | Note | Number of Positions | Number of Rows | Connector Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Backshell Jackscrew Mating Guide | 0.15 in | 3.81 mm | Rack and Panel | Free Hanging (In-Line) | Green | Housing for Non-Gendered Contacts | Contacts Not Included | 38 | 9 | Receptacle |
EDAC Inc. | Backshell Guide Pin Jackscrew Socket | 0.15 in | 3.81 mm | Rack and Panel | Free Hanging (In-Line) | Green | Housing for Non-Gendered Contacts | Contacts Not Included | 38 | 9 | Plug |
EDAC Inc. | Backshell Guide Pin Jackscrew Socket | 0.15 in | 3.81 mm | Rack and Panel | Free Hanging (In-Line) | Gray | Housing for Non-Gendered Contacts | Contacts Not Included | 38 | 9 | Plug |
EDAC Inc. | Backshell Jackscrew Socket Mating Guide | 0.15 in | 3.81 mm | Rack and Panel | Free Hanging (In-Line) | Green | Housing for Non-Gendered Contacts | Contacts Not Included | 38 | 9 | Receptacle |
EDAC Inc. | Backshell Jackscrew | 0.15 in | 3.81 mm | Rack and Panel | Free Hanging (In-Line) | Green | Housing for Non-Gendered Contacts | Contacts Not Included | 38 | 9 | Receptacle |
EDAC Inc. | Backshell Jackscrew Socket | 0.15 in | 3.81 mm | Rack and Panel | Free Hanging (In-Line) | Green | Housing for Non-Gendered Contacts | Contacts Not Included | 38 | 9 | Receptacle |
EDAC Inc. | Backshell | 0.15 in | 3.81 mm | Rack and Panel | Free Hanging (In-Line) | Green | Housing for Non-Gendered Contacts | Contacts Not Included | 38 | 9 | Receptacle |
EDAC Inc. | Backshell Jackscrew | 0.15 in | 3.81 mm | Rack and Panel | Free Hanging (In-Line) | Green | Housing for Non-Gendered Contacts | Contacts Not Included | 38 | 9 | Receptacle |
EDAC Inc. | Backshell Jackscrew Socket | 0.15 in | 3.81 mm | Rack and Panel | Free Hanging (In-Line) | Green | Housing for Non-Gendered Contacts | Contacts Not Included | 38 | 9 | Plug |
EDAC Inc. | Backshell Jackscrew Socket Mating Guide | 0.15 in | 3.81 mm | Rack and Panel | Free Hanging (In-Line) | Gray | Housing for Non-Gendered Contacts | Contacts Not Included | 38 | 9 | Receptacle |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
516-038 Series
38 Position Housing for Non-Gendered Contacts Connector Green Free Hanging (In-Line) Rack and Panel
