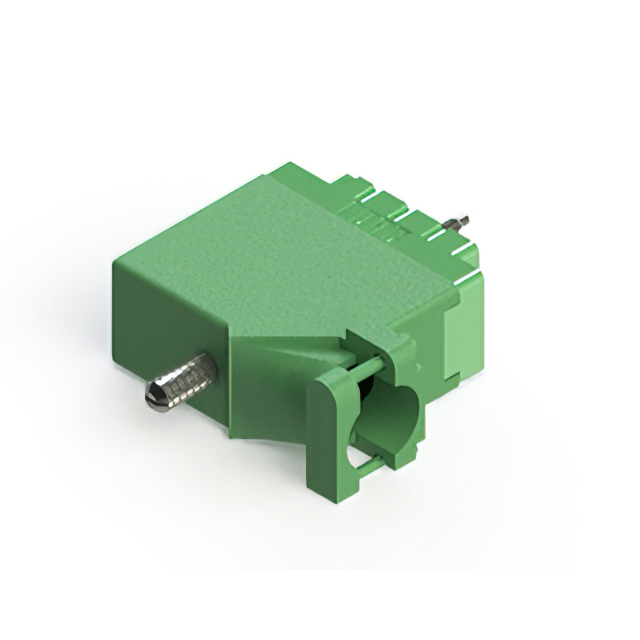

516-038-520-645

Active

EDAC Inc.

516 SERIES RACK & PANEL CONNECTO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

516-038-520-645

Active

EDAC Inc.

516 SERIES RACK & PANEL CONNECTO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	516-038-520-645

Color	Green
Connector Style	Rack and Panel
Connector Type	Housing for Non-Gendered Contacts
Connector Usage	Receptacle
Features	Jackscrew, Backshell
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	38
Number of Rows	9
Pitch [x]	0.15 in
Pitch [x]	3.81 mm

516-038 Series

...

Part	Features	Pitch [x]	Pitch [x]	Connector Style	Mounting Type	Color	Connector Type	Note	Number of Positions	Number of Rows	Connector Usage
EDAC Inc. 516-038-500-641	Backshell Jackscrew Mating Guide	0.15 in	3.81 mm	Rack and Panel	Free Hanging (In-Line)	Green	Housing for Non-Gendered Contacts	Contacts Not Included	38	9	Receptacle
EDAC Inc. 516-038-000-512	Backshell Guide Pin Jackscrew Socket	0.15 in	3.81 mm	Rack and Panel	Free Hanging (In-Line)	Green	Housing for Non-Gendered Contacts	Contacts Not Included	38	9	Plug
EDAC Inc. 516-038-542-342	Backshell Guide Pin Jackscrew Socket	0.15 in	3.81 mm	Rack and Panel	Free Hanging (In-Line)	Gray	Housing for Non-Gendered Contacts	Contacts Not Included	38	9	Plug
EDAC Inc. 516-038-540-262	Backshell Jackscrew Socket Mating Guide	0.15 in	3.81 mm	Rack and Panel	Free Hanging (In-Line)	Green	Housing for Non-Gendered Contacts	Contacts Not Included	38	9	Receptacle
EDAC Inc. 516-038-520-645	Backshell Jackscrew	0.15 in	3.81 mm	Rack and Panel	Free Hanging (In-Line)	Green	Housing for Non-Gendered Contacts	Contacts Not Included	38	9	Receptacle
EDAC Inc. 516-038-500-646	Backshell Jackscrew Socket	0.15 in	3.81 mm	Rack and Panel	Free Hanging (In-Line)	Green	Housing for Non-Gendered Contacts	Contacts Not Included	38	9	Receptacle
EDAC Inc. 516-038-500-630	Backshell	0.15 in	3.81 mm	Rack and Panel	Free Hanging (In-Line)	Green	Housing for Non-Gendered Contacts	Contacts Not Included	38	9	Receptacle
EDAC Inc. 516-038-520-225	Backshell Jackscrew	0.15 in	3.81 mm	Rack and Panel	Free Hanging (In-Line)	Green	Housing for Non-Gendered Contacts	Contacts Not Included	38	9	Receptacle
EDAC Inc. 516-038-541-166	Backshell Jackscrew Socket	0.15 in	3.81 mm	Rack and Panel	Free Hanging (In-Line)	Green	Housing for Non-Gendered Contacts	Contacts Not Included	38	9	Plug
EDAC Inc. 516-038-000-432	Backshell Jackscrew Socket Mating Guide	0.15 in	3.81 mm	Rack and Panel	Free Hanging (In-Line)	Gray	Housing for Non-Gendered Contacts	Contacts Not Included	38	9	Receptacle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 59.98

Description

General part information

516-038 Series

38 Position Housing for Non-Gendered Contacts Connector Green Free Hanging (In-Line) Rack and Panel
