DMP3013SFK-13

Active

Diodes Inc

P-CHANNEL ENHANCEMENT MODE MOSFET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Recommended Soldering Techniques +2

DMP3013SFK-13

Active

Diodes Inc

P-CHANNEL ENHANCEMENT MODE MOSFET

Deep-Dive with AI

DocumentsDatasheet Recommended Soldering Techniques +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DMP3013SFK-13

Current - Continuous Drain (Id) @ 25°C	10.5 A
Drain to Source Voltage (Vdss)	30 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	P-Channel
Gate Charge (Qg) (Max) @ Vgs	33.7 nC
Input Capacitance (Ciss) (Max) @ Vds	1674 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C

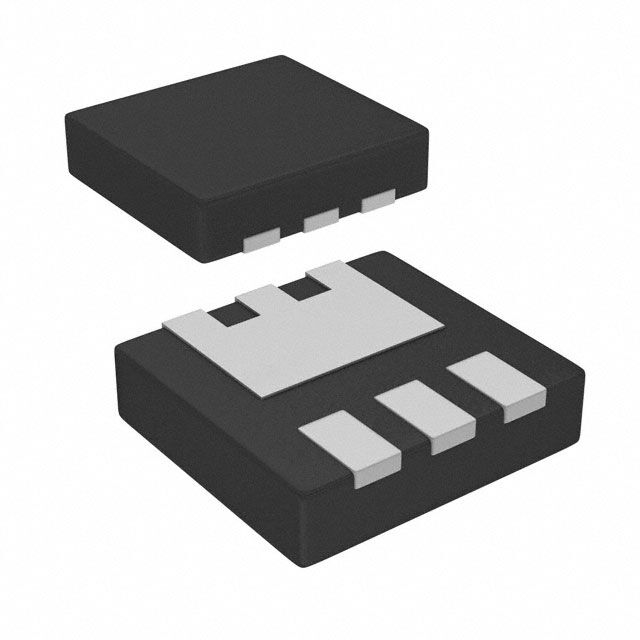

Package / Case	6-PowerUDFN
Power Dissipation (Max)	19.5 W, 1 W
Rds On (Max) @ Id, Vgs [Max]	14 mOhm
Supplier Device Package	U-DFN2523-6
Technology	MOSFET (Metal Oxide)
Vgs (Max)	25 V
Vgs(th) (Max) @ Id	3 V

DMP3013SFV Series

30V P-Channel Enhancement Mode MOSFET

Part	Operating Temperature [Min]	Operating Temperature [Max]	Input Capacitance (Ciss) (Max) @ Vds	Technology	Vgs (Max)	Supplier Device Package	Package / Case	Drain to Source Voltage (Vdss)	Mounting Type	Rds On (Max) @ Id, Vgs [Max]	Power Dissipation (Max)	FET Type	Gate Charge (Qg) (Max) @ Vgs	Drive Voltage (Max Rds On, Min Rds On)	Current - Continuous Drain (Id) @ 25°C	Vgs(th) (Max) @ Id	Power Dissipation (Max) [Max]	Rds On (Max) @ Id, Vgs
Diodes Inc DMP3013SFK-13	-55 °C	150 °C	1674 pF	MOSFET (Metal Oxide)	25 V	U-DFN2523-6	6-PowerUDFN	30 V	Surface Mount	14 mOhm	1 W 19.5 W	P-Channel	33.7 nC	4.5 V 10 V	10.5 A	3 V
Diodes Inc DMP3013SFV-13	-55 °C	150 °C	1674 pF	MOSFET (Metal Oxide)	25 V	PowerDI3333-8 (Type UX)	8-PowerVDFN	30 V	Surface Mount			P-Channel	33.7 nC	4.5 V 10 V	12 A 35 A	3 V	940 mW	9.5 mOhm
Diodes Inc DMP3013SFV-7	-55 °C	150 °C	1674 pF	MOSFET (Metal Oxide)	25 V	PowerDI3333-8 (Type UX)	8-PowerVDFN	30 V	Surface Mount			P-Channel	33.7 nC	4.5 V 10 V	12 A 35 A	3 V	940 mW	9.5 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10000	$ 0.21
		20000	$ 0.21

Description

General part information

DMP3013SFV Series

This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power management applications.
