333-020-524-203
ActiveEDAC Inc.

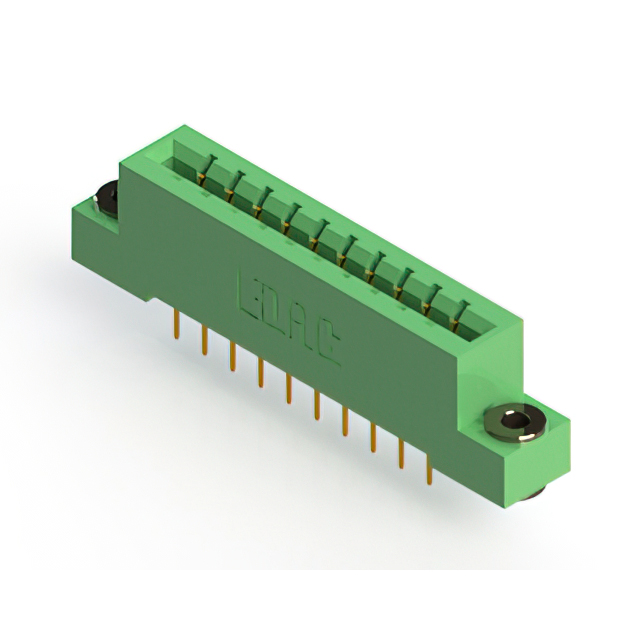

CONN EDGE DUAL FMALE 20POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
333-020-524-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 20POS 0.156
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 333-020-524-203 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Number of Positions/Bay/Row [custom] | 10 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
333-020 Series
...
| Part | Pitch [x] | Pitch [x] | Mounting Type | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Features | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Color | Termination | Contact Type | Number of Positions/Bay/Row [custom] | Number of Rows | Number of Positions | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Gender | Termination Rows | Read Out | Material - Insulation | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.156 in | 3.96 mm | Board Edge Straddle Mount | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Extender | Non Specified - Dual Edge | -40 °C | 105 ░C | Green | Solder | Cantilever | 10 | 2 | 20 | Gold | 10 Áin | 0.25 Ám | Female | 2 | Dual | Polyester Thermoplastic | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | |||||
EDAC Inc. | 0.156 in | 3.96 mm | Through Hole | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | -40 °C | 105 ░C | Green | Solder | Cantilever | 10 | 2 | 20 | Gold | 10 Áin | 0.25 Ám | Female | 2 | Dual | Polyester Thermoplastic | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | ||||||
EDAC Inc. | 0.156 in | 3.96 mm | Through Hole | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | -40 °C | 105 ░C | Green | Solder | Cantilever | 1 | 20 | Gold | 10 Áin | 0.25 Ám | Female | 1 | Single | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | 20 | 20 | 20 | ||||||
EDAC Inc. | 0.156 in | 3.96 mm | Through Hole | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | -40 °C | 105 ░C | Green | Solder | Cantilever | 1 | 20 | Gold | 10 Áin | 0.25 Ám | Female | 1 | Single | Polyester Thermoplastic | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | 20 | 20 | 20 | ||||
EDAC Inc. | 0.156 in | 3.96 mm | Through Hole | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | -40 °C | 105 ░C | Green | Solder | Cantilever | 1 | 20 | Gold | 10 Áin | 0.25 Ám | Female | 1 | Single | Polyester Thermoplastic | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | 20 | 20 | 20 | ||||
EDAC Inc. | 0.156 in | 3.96 mm | Through Hole | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | -40 °C | 105 ░C | Green | Solder | Cantilever | 1 | 20 | Gold | 10 Áin | 0.25 Ám | Female | 1 | Single | Polyester Thermoplastic | 20 | 20 | 20 | |||||||
EDAC Inc. | 0.156 in | 3.96 mm | Through Hole Right Angle | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | -40 °C | 105 ░C | Green | Solder | Cantilever | 10 | 2 | 20 | Gold | 10 Áin | 0.25 Ám | Female | 2 | Dual | Polyester Thermoplastic | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | ||||||
EDAC Inc. | 0.156 in | 3.96 mm | Through Hole Right Angle | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | -40 °C | 105 ░C | Green | Solder | Cantilever | 1 | 20 | Gold | 10 Áin | 0.25 Ám | Female | 1 | Single | Polyester Thermoplastic | 20 | 20 | 20 | 3.25 mm | 0.128 in | |||||
EDAC Inc. | 0.156 in | 3.96 mm | Through Hole | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | -40 °C | 105 ░C | Green | Wire Wrap | Cantilever | 1 | 20 | Gold | 10 Áin | 0.25 Ám | Female | 1 | Single | Polyester Thermoplastic | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | 20 | 20 | 20 | ||||
EDAC Inc. | 0.156 in | 3.96 mm | Through Hole | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | -40 °C | 105 ░C | Green | Wire Wrap | Cantilever | 1 | 20 | Gold | 10 Áin | 0.25 Ám | Female | 1 | Single | Polyester Thermoplastic | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 20 | 20 | 20 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 8.52 | |
Description
General part information
333-020 Series
20 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
