EDAC Inc.

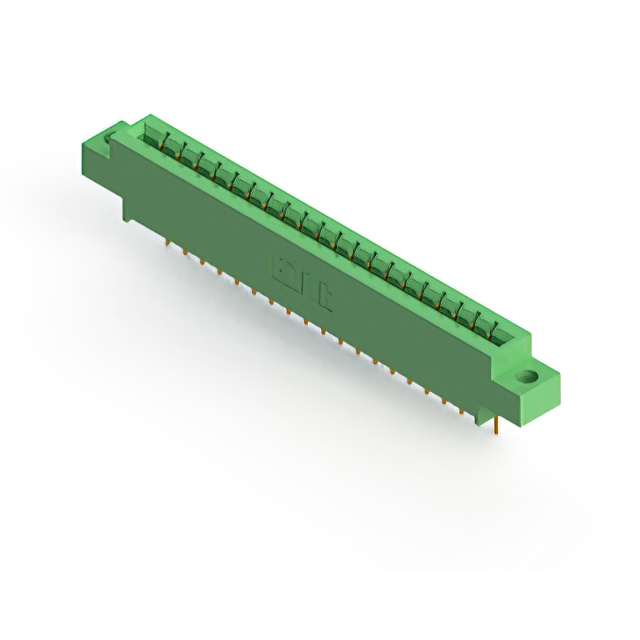

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 20 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEnhanced Product Overview EN Drawing EN +1

333-020-541-604

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 20 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsEnhanced Product Overview EN Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	333-020-541-604

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Unthreaded
Flange Feature [diameter]	0.156 in
Flange Feature [diameter]	3.96 mm
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	20
Number of Positions/Bay/Row [custom]	20
Number of Positions/Bay/Row [custom]	20
Number of Positions/Bay/Row [custom]	20
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

333-020 Series

...

Part	Pitch [x]	Pitch [x]	Mounting Type	Contact Material	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Features	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Termination	Contact Type	Number of Positions/Bay/Row [custom]	Number of Rows	Number of Positions	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Gender	Termination Rows	Read Out	Material - Insulation	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Flange Feature	Flange Feature
EDAC Inc. 333-020-556-203	0.156 in	3.96 mm	Board Edge Straddle Mount	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Extender	Non Specified - Dual Edge	-40 °C	105 ░C	Green	Solder	Cantilever	10	2	20	Gold	10 Áin	0.25 Ám	Female	2	Dual	Polyester Thermoplastic	0.116 in	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 333-020-524-203	0.156 in	3.96 mm	Through Hole	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in		Non Specified - Dual Edge	-40 °C	105 ░C	Green	Solder	Cantilever	10	2	20	Gold	10 Áin	0.25 Ám	Female	2	Dual	Polyester Thermoplastic	0.116 in	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 333-020-520-608	0.156 in	3.96 mm	Through Hole	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in		Non Specified - Single Edge	-40 °C	105 ░C	Green	Solder	Cantilever		1	20	Gold	10 Áin	0.25 Ám	Female	1	Single	Polyester Thermoplastic		4-40 Threaded Insert Top Mount Opening		20	20	20
EDAC Inc. 333-020-524-104	0.156 in	3.96 mm	Through Hole	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in		Non Specified - Single Edge	-40 °C	105 ░C	Green	Solder	Cantilever		1	20	Gold	10 Áin	0.25 Ám	Female	1	Single	Polyester Thermoplastic	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	20	20	20
EDAC Inc. 333-020-521-604	0.156 in	3.96 mm	Through Hole	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in		Non Specified - Single Edge	-40 °C	105 ░C	Green	Solder	Cantilever		1	20	Gold	10 Áin	0.25 Ám	Female	1	Single	Polyester Thermoplastic	0.156 in	Top Mount Opening Unthreaded	3.96 mm	20	20	20
EDAC Inc. 333-020-520-101	0.156 in	3.96 mm	Through Hole	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in		Non Specified - Single Edge	-40 °C	105 ░C	Green	Solder	Cantilever		1	20	Gold	10 Áin	0.25 Ám	Female	1	Single	Polyester Thermoplastic				20	20	20
EDAC Inc. 333-020-558-212	0.156 in	3.96 mm	Through Hole Right Angle	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in		Non Specified - Dual Edge	-40 °C	105 ░C	Green	Solder	Cantilever	10	2	20	Gold	10 Áin	0.25 Ám	Female	2	Dual	Polyester Thermoplastic	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm
EDAC Inc. 333-020-558-602	0.156 in	3.96 mm	Through Hole Right Angle	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in		Non Specified - Single Edge	-40 °C	105 ░C	Green	Solder	Cantilever		1	20	Gold	10 Áin	0.25 Ám	Female	1	Single	Polyester Thermoplastic				20	20	20	3.25 mm	0.128 in
EDAC Inc. 333-020-541-604	0.156 in	3.96 mm	Through Hole	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in		Non Specified - Single Edge	-40 °C	105 ░C	Green	Wire Wrap	Cantilever		1	20	Gold	10 Áin	0.25 Ám	Female	1	Single	Polyester Thermoplastic	0.156 in	Top Mount Opening Unthreaded	3.96 mm	20	20	20
EDAC Inc. 333-020-544-102	0.156 in	3.96 mm	Through Hole	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in		Non Specified - Single Edge	-40 °C	105 ░C	Green	Wire Wrap	Cantilever		1	20	Gold	10 Áin	0.25 Ám	Female	1	Single	Polyester Thermoplastic	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	20	20	20
