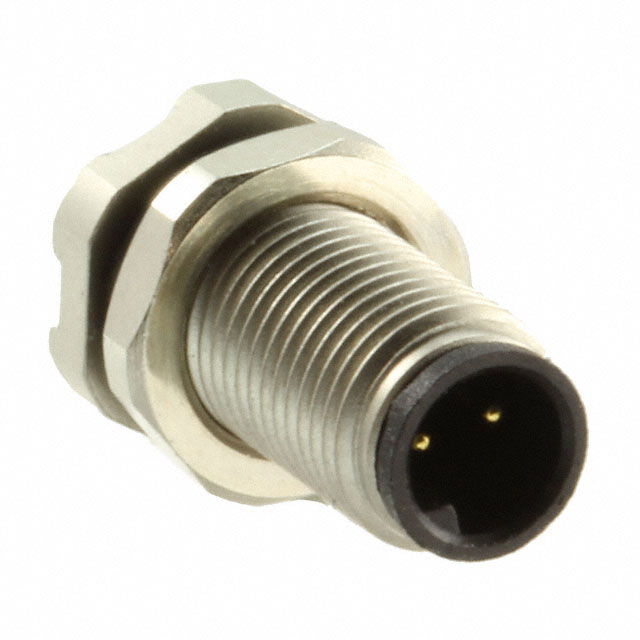

851-002-103R001 - M5 MALE 2POS

851-002-103R001

Active
MH Connectors

SENSOR CONNECTOR, VULCON SERIES, M5, MALE, 2 POSITIONS, SOLDER PIN, STRAIGHT PANEL MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN+4
851-002-103R001 - M5 MALE 2POS

851-002-103R001

Active
MH Connectors

SENSOR CONNECTOR, VULCON SERIES, M5, MALE, 2 POSITIONS, SOLDER PIN, STRAIGHT PANEL MOUNT

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN+4

Technical Specifications

Parameters and characteristics for this part

Specification851-002-103R001
ColorSilver
Connector TypeReceptacle, Male Pins
Contact Finish - MatingGold
Contact Finish Thickness - MatingFlash
Contact MaterialBrass
Ingress ProtectionIP67 - Dust Tight, Waterproof
Insert MaterialPolybutylene Terephthalate (PBT)
Material Flammability RatingUL94 V-0
Mounting FeatureBulkhead - Front Side Nut
Number of Positions2
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
OrientationKeyed
Primary MaterialMetal
Shell FinishNickel
Shell MaterialBrass
Shell Size - InsertM5-2
ShieldingShielded
Voltage Rating60 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 9.08
10$ 8.18
25$ 7.70
40$ 7.50
100$ 7.31
300$ 6.52
500$ 6.12
1000$ 5.41
NewarkEach 100$ 5.62
250$ 5.21
500$ 4.95

Description

General part information

851-002 Series

2 Position Circular Connector Receptacle, Male Pins Solder Cup
