STM32F334C8 Microcontroller Based 500W Fully Digital AC-DC Power Supply Board(D-SMPS)

STEVAL-ISA147V3

Active

STMicroelectronics

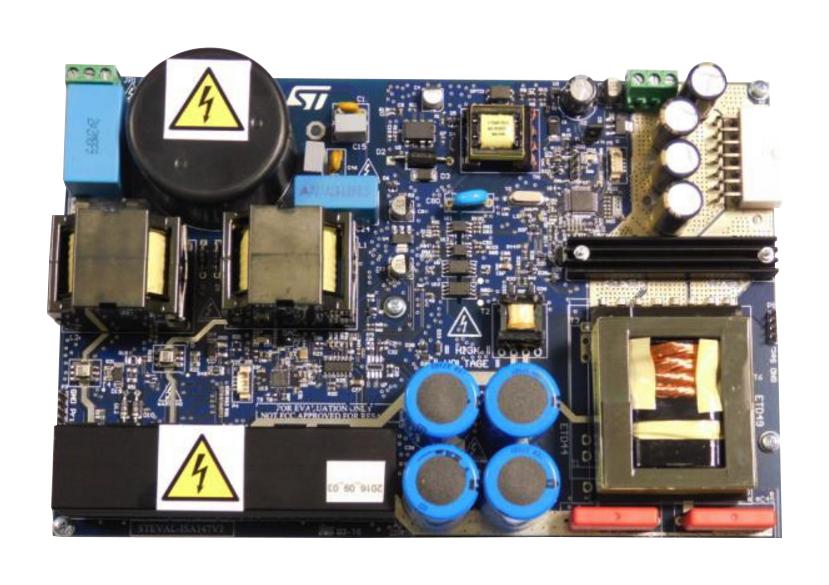

STM32F334C8 MICROCONTROLLER BASED 500W FULLY DIGITAL AC-DC POWER SUPPLY BOARD(D-SMPS)

Find alt

Alpha

STEVAL-ISA147V3

Active

STMicroelectronics

STM32F334C8 MICROCONTROLLER BASED 500W FULLY DIGITAL AC-DC POWER SUPPLY BOARD(D-SMPS)

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

STEVAL Series

The STEVAL-BFA001V1B is an industrial reference design kit designed for condition monitoring (CM) and predictive maintenance (PdM).

The hardware development kit consists of an industrial sensor board (STEVAL-IDP005V1), an adapter for the ST-LINK/V2-1 programming and debugging tool (STEVAL-UKI001V1), a 0.050" 10-pin flat cable, a 4-pole cable mount connector plug with male contacts and an M12 female connector with a 2 m cable.

The firmware package includes dedicated algorithms for advanced time and frequency domain signal processing and analysis of the 3D digital accelerometer with 3 kHz flat bandwidth. The package includes drivers for pressure, relative humidity and temperature sensor monitoring. Audio algorithms for acoustic emission (AE) are also part of the package.

Technical Specifications

Parameters and characteristics for this part

Specification	STEVAL-ISA147V3

Board Type	Fully Populated
Contents	Board
Isolated Output Count	1
Main Purpose	Primary and Secondary Side with PFC, AC/DC
Output Type	Isolated
Power - Output	500 W
Regulator Topology	Flyback
Supplied Contents	Board(s)
Total Output Count	1
Utilized IC / Part	STM32F051K8, STM32F334C8
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Output	12 V
