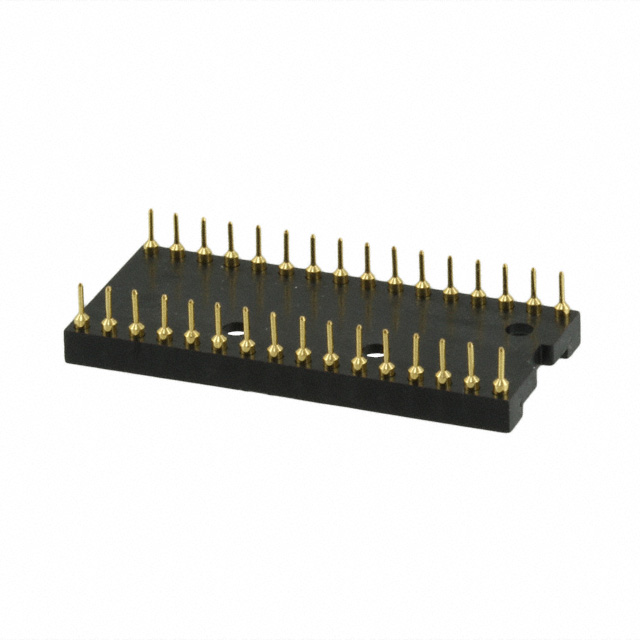

6-1437536-3
ObsoleteTE Connectivity Raychem Cable Protection
CONN IC DIP SOCKET 32POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6-1437536-3
ObsoleteTE Connectivity Raychem Cable Protection
CONN IC DIP SOCKET 32POS GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6-1437536-3 |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post [custom] | Brass |
| Contact Resistance | 10 mOhm |
| Features | Closed Frame |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) [custom] | 2 x 16 |
| Number of Positions or Pins (Grid) [custom] | 32 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Termination Post Length | 3.18 mm |
| Termination Post Length | 0.125 in |
| Type | DIP |
| Type | 0.6 in |
| Type | 15.24 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1437536 Series
32 (2 x 16) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Through Hole
