1-1437536-3

Obsolete

TE Connectivity Raychem Cable Protection

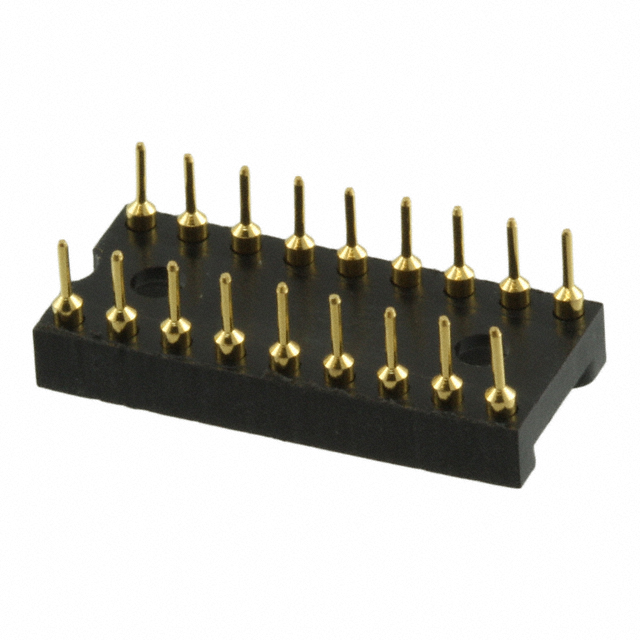

CONN IC DIP SOCKET 18POS GOLD

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

CONN IC DIP SOCKET 18POS GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	1-1437536-3

Contact Finish - Mating	Gold
Features	Closed Frame
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	18
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Type	0.3 "
Type	7.62 mm
Type	DIP

Part	Type	Type	Type	Pitch - Post	Pitch - Post	Contact Material - Post [custom]	Features	Termination Post Length	Termination Post Length	Contact Material - Mating	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Mounting Type	Contact Resistance	Number of Positions or Pins (Grid)	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
TE Connectivity Raychem Cable Protection 7-1437536-2	DIP	0.6 in	15.24 mm	2.54 mm	0.1 in	Brass	Closed Frame	3.18 mm	0.125 in	Beryllium Copper	0.1 in	2.54 mm	Gold	Through Hole	10 mOhm	36	Solder	-55 °C	125 °C
TE Connectivity Raychem Cable Protection 1-1437536-3	DIP	0.3 "	7.62 mm	2.54 mm	0.1 in		Closed Frame				0.1 in	2.54 mm	Gold	Through Hole		18
TE Connectivity Raychem Cable Protection 6-1437536-3	DIP	0.6 in	15.24 mm	2.54 mm	0.1 in	Brass	Closed Frame	3.18 mm	0.125 in	Beryllium Copper	0.1 in	2.54 mm	Gold	Through Hole	10 mOhm		Solder	-55 °C	125 °C	2 x 16	32

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

18 (2 x 9) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
