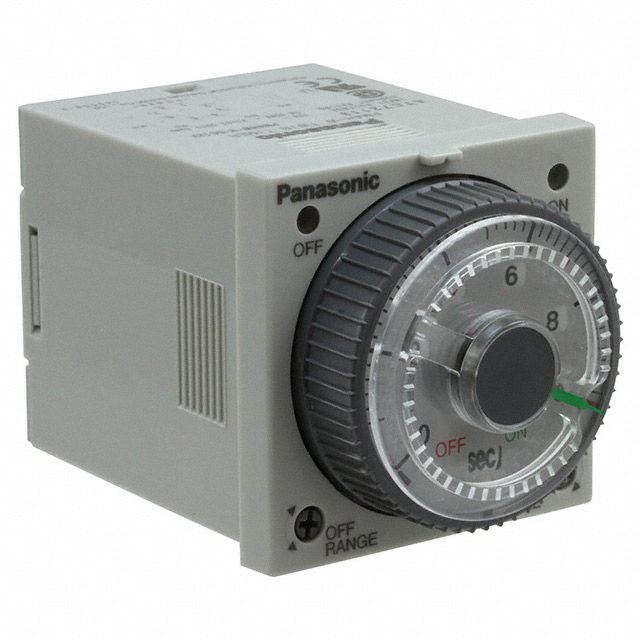

PM4HW-H-DC12V

Obsolete

Panasonic Industrial Automation Sales

RELAY TIME DELAY 500HR 5A 250V

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

RELAY TIME DELAY 500HR 5A 250V

Technical Specifications

Parameters and characteristics for this part

Part	Timing Adjustment Method	Voltage - Supply [Min]	Voltage - Supply [Max]	Contact Rating @ Voltage	Relay Type	Termination Style	Delay Time [Max]	Delay Time [Min]	Function	Circuit	Mounting Type	Timing Initiate Method	Voltage - Supply
Panasonic Industrial Automation Sales PM4HW-H-AC240V	Hand Dial	100 VAC	240 VAC	5 A 250 VAC	Mechanical Relay	Plug In 8 Pin (Octal)	500 Hrs	0.1 Sec	Repeat Cycle Twin Timer	DPDT (2 Form C)	Socketable	Input Voltage
Panasonic Industrial Automation Sales PM4HW-H-AC240VW	Hand Dial	100 VAC	240 VAC	5 A 250 VAC	Mechanical Relay	Plug In 8 Pin (Octal)	500 Hrs	0.1 Sec	Repeat Cycle Twin Timer	DPDT (2 Form C)	Socketable	Input Voltage
Panasonic Industrial Automation Sales PM4HW-H-DC12V	Hand Dial			5 A 250 VAC	Mechanical Relay	Plug In 8 Pin (Octal)	500 Hrs	0.1 Sec	Repeat Cycle Twin Timer	DPDT (2 Form C)	Socketable	Input Voltage	12 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Repeat Cycle, Twin Timer Time Delay Relay DPDT (2 Form C) 0.1 Sec ~ 500 Hrs Delay 5A @ 250VAC Socketable

Technical documentation and resources
