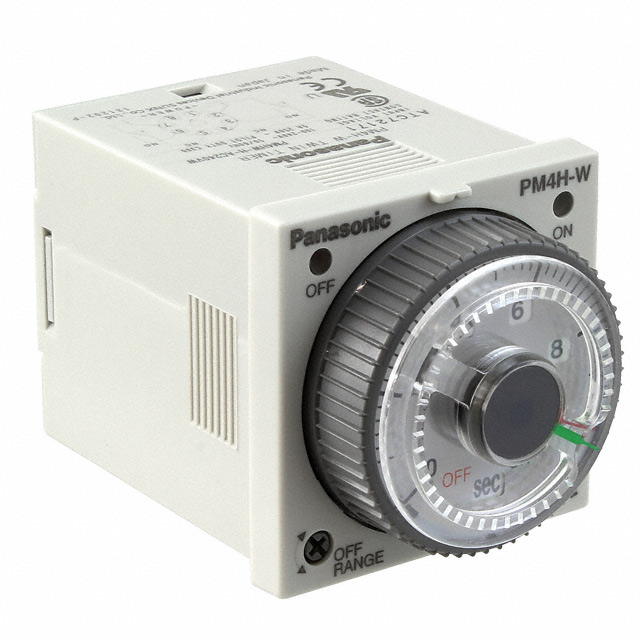

PM4HW-H-AC240VW
ObsoletePanasonic Industrial Automation Sales
RELAY TIME DELAY 500HR 5A 250V
Deep-Dive with AI
Search across all available documentation for this part.
PM4HW-H-AC240VW
ObsoletePanasonic Industrial Automation Sales
RELAY TIME DELAY 500HR 5A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PM4HW-H-AC240VW |
|---|---|
| Circuit | DPDT (2 Form C) |
| Contact Rating @ Voltage | 250 VAC, 5 A |
| Delay Time [Max] | 500 Hrs |
| Delay Time [Min] | 0.1 Sec |
| Function | Repeat Cycle, Twin Timer |
| Mounting Type | Socketable |
| Relay Type | Mechanical Relay |
| Termination Style | Plug In, 8 Pin (Octal) |
| Timing Adjustment Method | Hand Dial |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply [Max] | 240 VAC |
| Voltage - Supply [Min] | 100 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PM4HW Series
Repeat Cycle, Twin Timer Time Delay Relay DPDT (2 Form C) 0.1 Sec ~ 500 Hrs Delay 5A @ 250VAC Socketable
