Q20NDQ7
ActiveBANNER ENGINEERING
WORLD-BEAM Q20 SERIES: DIFFUSE (RED)
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

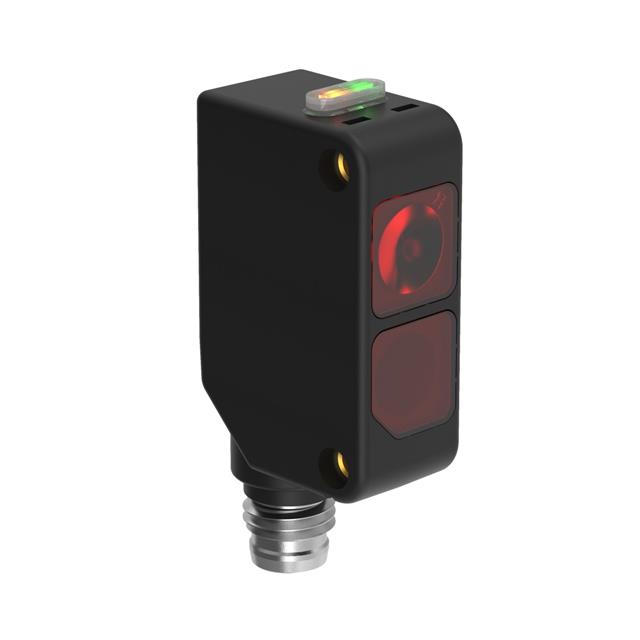

Q20NDQ7
ActiveBANNER ENGINEERING
WORLD-BEAM Q20 SERIES: DIFFUSE (RED)
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Q20NDQ7 |
|---|---|
| Connection Method | Connector |
| Ingress Protection | NEMA 6P, IEC IP67 |
| Light Source | Red (655nm) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Response Time | 800 µs |
| Sensing Method | Diffuse |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Q20N Series
| Part | Response Time | Ingress Protection | Sensing Distance | Sensing Distance | Connection Method | Cable Length | Cable Length | Output Configuration | Operating Temperature [Min] | Operating Temperature [Max] | Light Source | Light Source | Voltage - Supply [Max] | Voltage - Supply [Min] | Sensing Method | Adjustment Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BANNER ENGINEERING | 800 µs | NEMA 6P IEC IP67 | 4 m | 13.12 ft | Cable | 78.74 in | 2 m | NPN - Dark-ON/Light-ON | -20 C | 60 °C | Red | 645 nm | 30 VDC | 10 VDC | Polarized Retroreflective | |
BANNER ENGINEERING | 800 µs | NEMA 6P IEC IP67 | Connector | -20 C | 60 °C | Red (655nm) | 30 VDC | 10 VDC | Diffuse | |||||||
BANNER ENGINEERING | 800 µs | NEMA 6P IEC IP67 | 50 mm | 1.969 in | Connector | -20 C | 60 °C | Red (655nm) | 30 VDC | 10 VDC | Background Suppression | |||||
BANNER ENGINEERING | 2.8 ms | IP67 NEMA 6P | 200 mm | 7.874 " | Connector | NPN - Dark-ON/Light-ON | -20 C | 60 °C | Red LED | 30 VDC | 10 VDC | Background Suppression | ||||
BANNER ENGINEERING | 2.8 ms | IP67 NEMA 6P | 200 mm | 7.874 " | Cable | 78.74 in | 2 m | NPN - Dark-ON/Light-ON | -20 C | 60 °C | Red LED | 30 VDC | 10 VDC | Background Suppression | ||
BANNER ENGINEERING | 800 µs | NEMA 6P IEC IP67 | 1.5 m | 4.9 ft | Cable | 78.74 in | 2 m | NPN - Dark-ON/Light-ON | -20 C | 60 °C | Infrared (850nm) | 30 VDC | 10 VDC | Diffuse | ||
BANNER ENGINEERING | 800 µs | NEMA 6P IEC IP67 | 6 m | 236.22 in | Cable | 78.74 in | 2 m | -20 C | 60 °C | Red | 645 nm | 30 VDC | 10 VDC | NonPolarized Retroreflective | ||
BANNER ENGINEERING | 800 µs | NEMA 6P IEC IP67 | 800 mm | 31.496 " | Cable | 78.74 in | 2 m | NPN - Dark-ON/Light-ON | -20 C | 60 °C | Red (624nm) | 30 VDC | 10 VDC | Diffuse | ||
BANNER ENGINEERING | 1 ms | NEMA 6P IEC IP67 | 12 m | 472.441 in | Cable | 78.74 in | 2 m | NPN - Dark-ON/Light-ON | -20 C | 60 °C | Red (624nm) | 30 VDC | 10 VDC | Through-Beam | ||
BANNER ENGINEERING | 800 µs | IP67 | Cable | 78.74 in | 2 m | NPN - Dark-ON/Light-ON | -20 C | 60 °C | Red (624nm) | 30 VDC | 10 VDC | Diffuse | Adjustable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
Q20N Series
Diffuse Optical Sensor 9.843" (250mm) NPN - Dark-ON/Light-ON - Selectable
