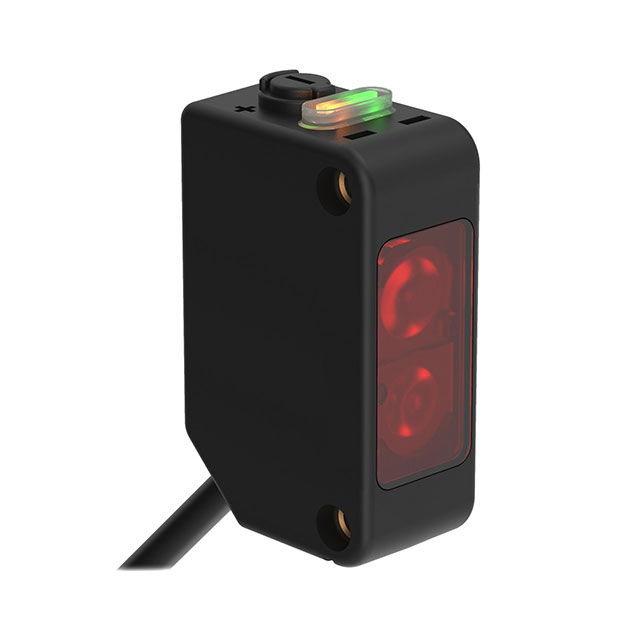

Q20NLP

Active

BANNER ENGINEERING

WORLD-BEAM Q20 SERIES: POLARIZED RETRO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Q20NLP

Active

BANNER ENGINEERING

WORLD-BEAM Q20 SERIES: POLARIZED RETRO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q20NLP

Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	NEMA 6P, IEC IP67
Light Source	Red
Light Source	645 nm
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Output Configuration	NPN - Dark-ON/Light-ON
Response Time	800 µs
Sensing Distance	4 m
Sensing Distance	13.12 ft
Sensing Method	Polarized, Retroreflective
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Q20N Series

Part	Response Time	Ingress Protection	Sensing Distance	Sensing Distance	Connection Method	Cable Length	Cable Length	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Light Source	Light Source	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Method	Adjustment Type
BANNER ENGINEERING Q20NLP	800 µs	NEMA 6P IEC IP67	4 m	13.12 ft	Cable	78.74 in	2 m	NPN - Dark-ON/Light-ON	-20 C	60 °C	Red	645 nm	30 VDC	10 VDC	Polarized Retroreflective
BANNER ENGINEERING Q20NDQ7	800 µs	NEMA 6P IEC IP67			Connector				-20 C	60 °C	Red (655nm)		30 VDC	10 VDC	Diffuse
BANNER ENGINEERING Q20NFF50	800 µs	NEMA 6P IEC IP67	50 mm	1.969 in	Connector				-20 C	60 °C	Red (655nm)		30 VDC	10 VDC	Background Suppression
BANNER ENGINEERING Q20NAF200Q	2.8 ms	IP67 NEMA 6P	200 mm	7.874 "	Connector			NPN - Dark-ON/Light-ON	-20 C	60 °C	Red LED		30 VDC	10 VDC	Background Suppression
BANNER ENGINEERING Q20NAF200	2.8 ms	IP67 NEMA 6P	200 mm	7.874 "	Cable	78.74 in	2 m	NPN - Dark-ON/Light-ON	-20 C	60 °C	Red LED		30 VDC	10 VDC	Background Suppression
BANNER ENGINEERING Q20NDXL	800 µs	NEMA 6P IEC IP67	1.5 m	4.9 ft	Cable	78.74 in	2 m	NPN - Dark-ON/Light-ON	-20 C	60 °C	Infrared (850nm)		30 VDC	10 VDC	Diffuse
BANNER ENGINEERING Q20NLV	800 µs	NEMA 6P IEC IP67	6 m	236.22 in	Cable	78.74 in	2 m		-20 C	60 °C	Red	645 nm	30 VDC	10 VDC	NonPolarized Retroreflective
BANNER ENGINEERING Q20NDL	800 µs	NEMA 6P IEC IP67	800 mm	31.496 "	Cable	78.74 in	2 m	NPN - Dark-ON/Light-ON	-20 C	60 °C	Red (624nm)		30 VDC	10 VDC	Diffuse
BANNER ENGINEERING Q20NR	1 ms	NEMA 6P IEC IP67	12 m	472.441 in	Cable	78.74 in	2 m	NPN - Dark-ON/Light-ON	-20 C	60 °C	Red (624nm)		30 VDC	10 VDC	Through-Beam
BANNER ENGINEERING Q20ND	800 µs	IP67			Cable	78.74 in	2 m	NPN - Dark-ON/Light-ON	-20 C	60 °C	Red (624nm)		30 VDC	10 VDC	Diffuse	Adjustable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 100.00
Newark	Each	1	$ 100.00

Description

General part information

Q20N Series

Retroreflective, Polarized Optical Sensor 13.12' (4m) NPN - Dark-ON/Light-ON
