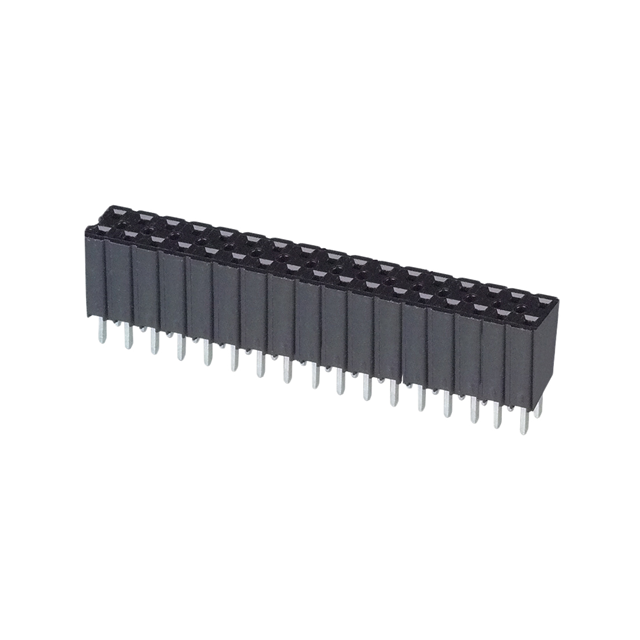

929852-01-17-RA
Active3M (TC)
80000909079 929852-01-17-RA=34/.100/STR/SKT/2R/.125/BM/10U/ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
929852-01-17-RA
Active3M (TC)
80000909079 929852-01-17-RA=34/.100/STR/SKT/2R/.125/BM/10U/ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 929852-01-17-RA |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Post [x] | 3.18 mm |
| Contact Length - Post [x] | 0.125 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Forked |
| Current Rating (Amps) | 2 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 8.25 mm |
| Insulation Height | 0.325 in |
| Insulation Material | Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 34 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Termination | Solder |
| Voltage Rating | 1500 V |
929852 Series
| Part | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish - Post | Contact Type | Insulation Height | Insulation Height | Contact Finish - Mating | Material Flammability Rating | Contact Material | Number of Rows | Connector Type | Fastening Type | Current Rating (Amps) | Mounting Type | Contact Shape | Number of Positions Loaded | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Positions | Pitch - Mating | Pitch - Mating | Insulation Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | -40 °C | 105 ░C | 3.18 mm | 0.125 in | Tin | Forked | 8.25 mm | 0.325 in | Gold | UL94 V-0 | Copper Alloy | 2 | Receptacle | Push-Pull | 2 A | Through Hole | Square | All | 2.54 mm | 0.1 in | 30 | 0.1 in | 2.54 mm | Black | 30 Áin | 0.76 Ám | 1500 V | Solder |
3M (TC) | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | -40 °C | 105 ░C | 3.18 mm | 0.125 in | Tin-Lead | Forked | 8.25 mm | 0.325 in | Gold | UL94 V-0 | Copper Alloy | 2 | Receptacle | Push-Pull | 2 A | Through Hole | Square | All | 2.54 mm | 0.1 in | 36 | 0.1 in | 2.54 mm | Black | 10 çin | 0.25 çm | 1500 V | Solder |
3M (TC) | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | -40 °C | 105 ░C | 3.18 mm | 0.125 in | Tin | Forked | 8.25 mm | 0.325 in | Gold | UL94 V-0 | Copper Alloy | 2 | Receptacle | Push-Pull | 2 A | Through Hole | Square | All | 2.54 mm | 0.1 in | 64 | 0.1 in | 2.54 mm | Black | 10 çin | 0.25 çm | 1500 V | Solder |
3M (TC) | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | -40 °C | 105 ░C | 3.18 mm | 0.125 in | Tin | Forked | 8.25 mm | 0.325 in | Gold | UL94 V-0 | Copper Alloy | 2 | Receptacle | Push-Pull | 2 A | Through Hole | Square | All | 2.54 mm | 0.1 in | 26 | 0.1 in | 2.54 mm | Black | 10 çin | 0.25 çm | 1500 V | Solder |
3M (TC) | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | -40 °C | 105 ░C | 3.18 mm | 0.125 in | Tin-Lead | Forked | 8.25 mm | 0.325 in | Gold | UL94 V-0 | Copper Alloy | 2 | Receptacle | Push-Pull | 2 A | Through Hole | Square | All | 2.54 mm | 0.1 in | 28 | 0.1 in | 2.54 mm | Black | 10 çin | 0.25 çm | 1500 V | Solder |
3M (TC) | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | -40 °C | 105 ░C | 3.18 mm | 0.125 in | Tin | Forked | 8.25 mm | 0.325 in | Gold | UL94 V-0 | Copper Alloy | 2 | Receptacle | Push-Pull | 2 A | Through Hole | Square | All | 2.54 mm | 0.1 in | 34 | 0.1 in | 2.54 mm | Black | 10 çin | 0.25 çm | 1500 V | Solder |
3M (TC) | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | -40 °C | 105 ░C | 3.18 mm | 0.125 in | Tin-Lead | Forked | 8.25 mm | 0.325 in | Gold | UL94 V-0 | Copper Alloy | 2 | Receptacle | Push-Pull | 2 A | Through Hole | Square | All | 2.54 mm | 0.1 in | 58 | 0.1 in | 2.54 mm | Black | 10 çin | 0.25 çm | 1500 V | Solder |
3M (TC) | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | -40 °C | 105 ░C | 3.18 mm | 0.125 in | Tin-Lead | Forked | 8.25 mm | 0.325 in | Gold | UL94 V-0 | Copper Alloy | 2 | Receptacle | Push-Pull | 2 A | Through Hole | Square | All | 2.54 mm | 0.1 in | 80 | 0.1 in | 2.54 mm | Black | 30 Áin | 0.76 Ám | 1500 V | Solder |
3M (TC) | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | -40 °C | 105 ░C | 3.18 mm | 0.125 in | Tin | Forked | 8.25 mm | 0.325 in | Gold | UL94 V-0 | Copper Alloy | 2 | Receptacle | Push-Pull | 2 A | Through Hole | Square | All | 2.54 mm | 0.1 in | 6 | 0.1 in | 2.54 mm | Black | 10 çin | 0.25 çm | 1500 V | Solder |
3M (TC) | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | -40 °C | 105 ░C | 3.18 mm | 0.125 in | Tin | Forked | 8.25 mm | 0.325 in | Gold | UL94 V-0 | Copper Alloy | 2 | Receptacle | Push-Pull | 2 A | Through Hole | Square | All | 2.54 mm | 0.1 in | 44 | 0.1 in | 2.54 mm | Black | 30 Áin | 0.76 Ám | 1500 V | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
929852 Series
34 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
