929852-01-22-RB

Active

3M (TC)

CONN RCPT 44POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

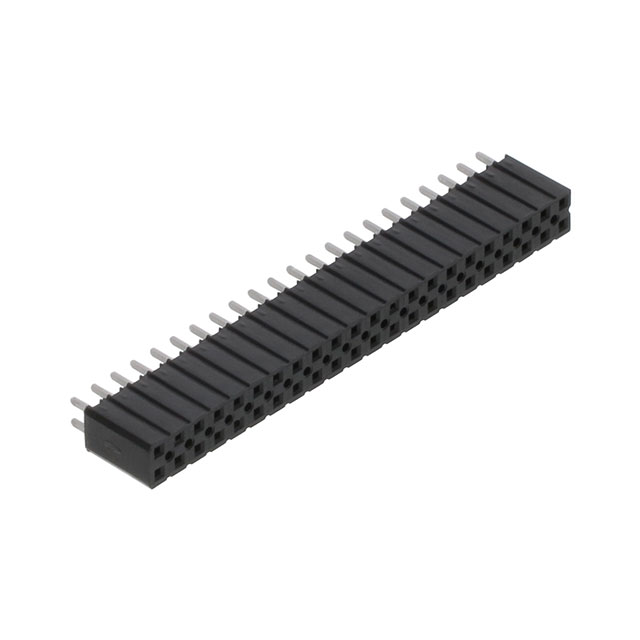

929852-01-22-RB

Active

3M (TC)

CONN RCPT 44POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	929852-01-22-RB

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	8.25 mm
Insulation Height	0.325 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	44
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	1500 V

929852 Series

Part	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Contact Type	Insulation Height	Insulation Height	Contact Finish - Mating	Material Flammability Rating	Contact Material	Number of Rows	Connector Type	Fastening Type	Current Rating (Amps)	Mounting Type	Contact Shape	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Termination
3M (TC) 929852-01-15-RB	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-40 °C	105 ░C	3.18 mm	0.125 in	Tin	Forked	8.25 mm	0.325 in	Gold	UL94 V-0	Copper Alloy	2	Receptacle	Push-Pull	2 A	Through Hole	Square	All	2.54 mm	0.1 in	30	0.1 in	2.54 mm	Black	30 Áin	0.76 Ám	1500 V	Solder
3M (TC) 929852-01-18-10	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-40 °C	105 ░C	3.18 mm	0.125 in	Tin-Lead	Forked	8.25 mm	0.325 in	Gold	UL94 V-0	Copper Alloy	2	Receptacle	Push-Pull	2 A	Through Hole	Square	All	2.54 mm	0.1 in	36	0.1 in	2.54 mm	Black	10 çin	0.25 çm	1500 V	Solder
3M (TC) 929852-01-32-RA	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-40 °C	105 ░C	3.18 mm	0.125 in	Tin	Forked	8.25 mm	0.325 in	Gold	UL94 V-0	Copper Alloy	2	Receptacle	Push-Pull	2 A	Through Hole	Square	All	2.54 mm	0.1 in	64	0.1 in	2.54 mm	Black	10 çin	0.25 çm	1500 V	Solder
3M (TC) 929852-01-13-RA	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-40 °C	105 ░C	3.18 mm	0.125 in	Tin	Forked	8.25 mm	0.325 in	Gold	UL94 V-0	Copper Alloy	2	Receptacle	Push-Pull	2 A	Through Hole	Square	All	2.54 mm	0.1 in	26	0.1 in	2.54 mm	Black	10 çin	0.25 çm	1500 V	Solder
3M (TC) 929852-01-14-10	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-40 °C	105 ░C	3.18 mm	0.125 in	Tin-Lead	Forked	8.25 mm	0.325 in	Gold	UL94 V-0	Copper Alloy	2	Receptacle	Push-Pull	2 A	Through Hole	Square	All	2.54 mm	0.1 in	28	0.1 in	2.54 mm	Black	10 çin	0.25 çm	1500 V	Solder
3M (TC) 929852-01-17-RA	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-40 °C	105 ░C	3.18 mm	0.125 in	Tin	Forked	8.25 mm	0.325 in	Gold	UL94 V-0	Copper Alloy	2	Receptacle	Push-Pull	2 A	Through Hole	Square	All	2.54 mm	0.1 in	34	0.1 in	2.54 mm	Black	10 çin	0.25 çm	1500 V	Solder
3M (TC) 929852-01-29-10	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-40 °C	105 ░C	3.18 mm	0.125 in	Tin-Lead	Forked	8.25 mm	0.325 in	Gold	UL94 V-0	Copper Alloy	2	Receptacle	Push-Pull	2 A	Through Hole	Square	All	2.54 mm	0.1 in	58	0.1 in	2.54 mm	Black	10 çin	0.25 çm	1500 V	Solder
3M (TC) 929852-01-40-30	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-40 °C	105 ░C	3.18 mm	0.125 in	Tin-Lead	Forked	8.25 mm	0.325 in	Gold	UL94 V-0	Copper Alloy	2	Receptacle	Push-Pull	2 A	Through Hole	Square	All	2.54 mm	0.1 in	80	0.1 in	2.54 mm	Black	30 Áin	0.76 Ám	1500 V	Solder
3M (TC) 929852-01-03-RA	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-40 °C	105 ░C	3.18 mm	0.125 in	Tin	Forked	8.25 mm	0.325 in	Gold	UL94 V-0	Copper Alloy	2	Receptacle	Push-Pull	2 A	Through Hole	Square	All	2.54 mm	0.1 in	6	0.1 in	2.54 mm	Black	10 çin	0.25 çm	1500 V	Solder
3M (TC) 929852-01-22-RB	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-40 °C	105 ░C	3.18 mm	0.125 in	Tin	Forked	8.25 mm	0.325 in	Gold	UL94 V-0	Copper Alloy	2	Receptacle	Push-Pull	2 A	Through Hole	Square	All	2.54 mm	0.1 in	44	0.1 in	2.54 mm	Black	30 Áin	0.76 Ám	1500 V	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	306	$ 5.46

Description

General part information

929852 Series

44 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold

Documents

Technical documentation and resources
