M85049/52S12W
ActiveAmphenol Interconnect India
CONN CAB CLAMP SZ12 OLIV 3/4-20
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsPlating
M85049/52S12W
ActiveAmphenol Interconnect India
CONN CAB CLAMP SZ12 OLIV 3/4-20
Deep-Dive with AI
DocumentsPlating
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M85049/52S12W | M85049/52 Series |
|---|---|---|
| Cable Exit | 180 ° | 180 ° |
| Cable Opening | - | 0.58 - 0.956 in |
| Cable Opening | - | 14.73 - 24.28 mm |
| Cable Opening | - | 12.7 - 24.38 mm |
| Cable Opening | - | 0.5 - 1.08 in |
| Cable Opening | - | 12.09 - 12.19 mm |
| Cable Opening | - | 21.08 mm |
| Cable Opening | - | 27.43 mm |
| Cable Opening | - | 0.204 - 1.081 in |
| Cable Opening | - | 5.18 - 27.46 mm |
| Cable Opening | - | 3.18 - 17.93 mm |
| Cable Opening | - | 0.125 - 0.706 in |
| Cable Opening [Max] [custom] | 10.67 mm | 7.37 - 10.67 mm |
| Cable Opening [Max] [custom] | 0.42 in | 0.29 - 0.48 in |
| Cable Opening [Min] [custom] | 7.37 mm | 4.83 - 8.92 mm |
| Cable Opening [Min] [custom] | 0.29 in | 0.19 - 0.351 in |
| Color | Olive | Olive Drab, Silver, Olive, Black |
| Diameter - Outside [diameter] | 1.14 " | 0.617 - 1.885 in |
| Diameter - Outside [diameter] | 28.96 mm | 15.67 - 47.88 mm |
| Features | Clamp Screws, Self-Locking | Clamp Screws, Self-Locking |
| For Use With/Related Products | MIL-DTL-26482 Series II, MIL-DTL-83723 Series I, III, MIL-DTL-5015 Series 3400 | MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III, MIL-DTL-83723 Series I, III, MIL-DTL-5015 Series 3400 |
| Material | Aluminum Alloy | Aluminum Alloy |
| Plating | Cadmium Nickel | Cadmium, Electroless Nickel, Cadmium Nickel, Anodized |
| Shell Size - Insert | 12 | 7 - 24 |
| Shell Size - Insert | - | 27, 18, 12, 14 |
| Shielding | - | Unshielded |
| Thread Size | 3/4-20 UNEF | 3/4-20 UNEF, 7/8-20 UNEF, 1 3/16-18 UNEF, 1/2-20 UNF, 1 5/16-18 UNEF, 1-20 UNEF, 5/8-24 UNEF |
| Type | Cable Clamp | Cable Clamp |
M85049/52 Series
CONN CABLE CLAMP SZ22 OLIVE
| Part | Type | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Features | Cable Opening [diameter] | Cable Opening [diameter] | Material | Plating | For Use With/Related Products | Shielding | Color | Shell Size - Insert | Cable Exit | Cable Opening [custom] | Cable Opening [custom] | Shell Size - Insert | Thread Size | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [diameter] | Cable Opening [custom] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Interconnect India M85049/52S22W | Cable Clamp | 44.7 mm | 1.76 in | Clamp Screws, Self-Locking | 0.644 in, 0.956 in | 16.36 mm, 24.28 mm | Aluminum Alloy | Cadmium | MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III | Unshielded | Olive Drab | 22 | 180 ° | |||||||||||||||
Amphenol Interconnect India M85049/52-1-18N | Cable Clamp | 30.94 mm | 1.218 " | Clamp Screws | Aluminum Alloy | Electroless Nickel | MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III | Unshielded | Silver | 180 ° | 13.21 mm, 18.03 mm | 0.52 in, 0.71 in | 18, 27 | |||||||||||||||
Amphenol Interconnect India M85049/52-1-12N | Cable Clamp | 21.84 mm | 0.86 in | Clamp Screws | Aluminum Alloy | Electroless Nickel | MIL-DTL-26482 Series II, MIL-DTL-5015 Series 3400, MIL-DTL-83723 Series I, III | Silver | 12 | 180 ° | 3/4-20 UNEF | 10.67 mm | 7.37 mm | 0.42 in | 0.29 in | |||||||||||||
Amphenol Interconnect India M85049/52-1-14W | Cable Clamp | 24.9 mm | 0.98 in | Clamp Screws | Aluminum Alloy | Cadmium Nickel | MIL-DTL-26482 Series II, MIL-DTL-5015 Series 3400, MIL-DTL-83723 Series I, III | Olive | 14 | 180 ° | 7/8-20 UNEF | 8.89 mm | 0.48 in | 0.35 in | 12.19 mm | |||||||||||||
Amphenol Interconnect India M85049/52-1-20N | Cable Clamp | 34.29 mm | 1.35 in | Clamp Screws | 0.58 in, 0.83 in | 14.73 mm | Aluminum Alloy | Electroless Nickel | MIL-DTL-26482 Series II, MIL-DTL-5015 Series 3400, MIL-DTL-83723 Series I, III | Silver | 20 | 180 ° | 1 3/16-18 UNEF | 21.08 mm | ||||||||||||||
Amphenol Interconnect India M85049/52S24N | Cable Clamp | 47.88 mm | 1.885 " | Clamp Screws, Self-Locking | Aluminum Alloy | Electroless Nickel | MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III | Unshielded | Silver | 24 | 180 ° | 18.03 mm | 0.71 in, 1.08 in | 27.43 mm | ||||||||||||||
Amphenol Interconnect India M85049/52S12N | Cable Clamp | 28.83 mm | 1.135 in | Clamp Screws, Self-Locking | Aluminum Alloy | Electroless Nickel | MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III | Unshielded | Silver | 7, 12 | 180 ° | 0.416 in | 10.57 mm | 7.39 mm | 0.291 in | |||||||||||||
Amphenol Interconnect India M85049/52-1-14N | Cable Clamp | 24.9 mm | 0.98 in | Clamp Screws | Aluminum Alloy | Electroless Nickel | MIL-DTL-26482 Series II, MIL-DTL-5015 Series 3400, MIL-DTL-83723 Series I, III | Silver | 14 | 180 ° | 7/8-20 UNEF | 8.89 mm | 0.48 in | 0.35 in | 12.19 mm | |||||||||||||
Amphenol Interconnect India M85049/52S14W | Cable Clamp | 32 mm | 1.26 in | Clamp Screws, Self-Locking | Aluminum Alloy | Cadmium | MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III | Unshielded | Olive Drab | 180 ° | 12, 14 | 8.92 mm | 0.476 in | 0.351 in | 12.09 mm | |||||||||||||
Amphenol Interconnect India M85049/52-1-8W | Cable Clamp | 15.75 mm | 0.62 " | Clamp Screws | Aluminum Alloy | Cadmium Nickel | MIL-DTL-26482 Series II, MIL-DTL-5015 Series 3400, MIL-DTL-83723 Series I, III | Olive | 8 | 180 ° | 1/2-20 UNF | 0.204 in | 5.18 mm | 3.18 mm | 0.125 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.95 | |
| 10 | $ 18.34 | |||
| 25 | $ 17.55 | |||
| 50 | $ 16.98 | |||
| 100 | $ 16.42 | |||
| 250 | $ 15.51 | |||
| 500 | $ 15.06 | |||
Description
General part information
M85049/52 Series

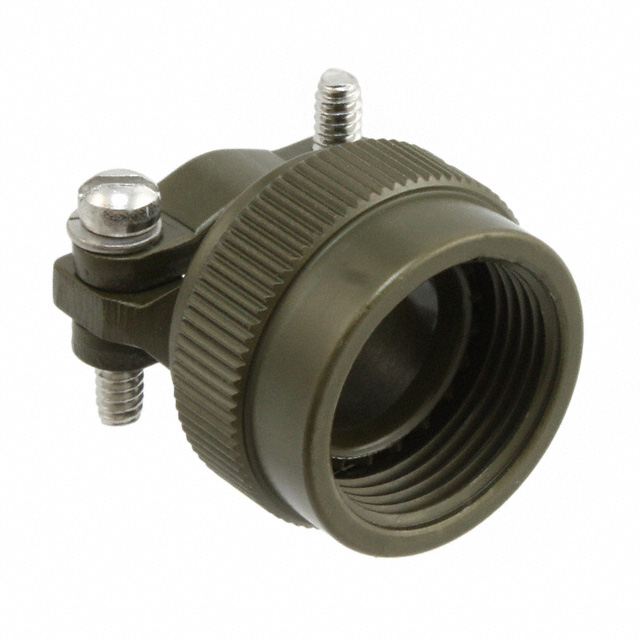

Olive Connector Cable Clamp 3/4-20 UNEF 12
