M85049/52-1-20N

Active

Amphenol Interconnect India

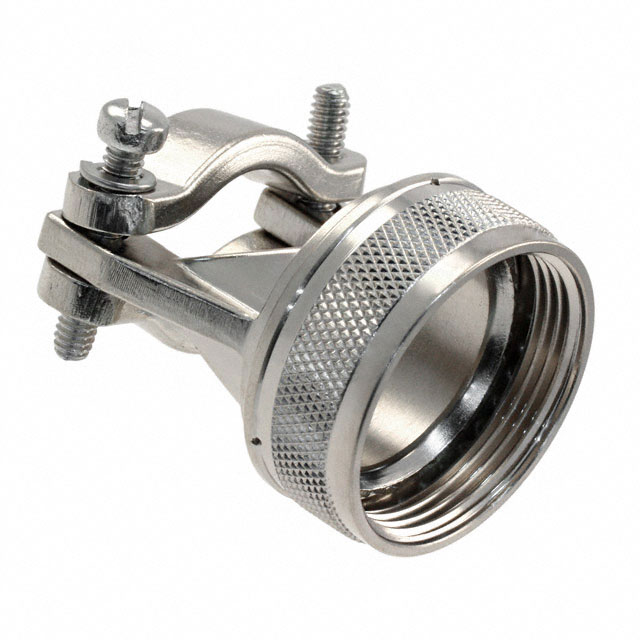

CONN CAB CLAMP SZ20 1 3/16-18

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPlating

M85049/52-1-20N

Active

Amphenol Interconnect India

CONN CAB CLAMP SZ20 1 3/16-18

Deep-Dive with AI

DocumentsPlating

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.95
		10	$ 14.14
		25	$ 13.60
		50	$ 13.05
		100	$ 12.33
		250	$ 11.24
		500	$ 10.52
		1000	$ 9.64

Description

General part information

M85049/52 Series

Silver Connector Cable Clamp 1 3/16-18 UNEF 20

Documents

Technical documentation and resources

Plating

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M85049/52-1-20N	M85049/52 Series

Cable Exit	180 °	180 °
Cable Opening	-	12.7 - 24.38 mm
Cable Opening	-	0.5 - 1.08 in
Cable Opening	-	7.37 - 10.67 mm
Cable Opening	-	4.83 - 8.92 mm
Cable Opening	-	0.29 - 0.48 in
Cable Opening	-	0.19 - 0.351 in
Cable Opening	-	12.09 - 12.19 mm
Cable Opening	-	27.43 mm
Cable Opening	-	0.204 - 1.081 in
Cable Opening	-	5.18 - 27.46 mm
Cable Opening	-	3.18 - 17.93 mm
Cable Opening	-	0.125 - 0.706 in
Cable Opening [diameter]	0.58 in, 0.83 in	0.58 - 0.956 in
Cable Opening [diameter]	14.73 mm	14.73 - 24.28 mm
Cable Opening [diameter]	21.08 mm	21.08 mm
Color	Silver	Olive Drab, Silver, Olive, Black
Diameter - Outside [diameter]	1.35 in	0.617 - 1.885 in
Diameter - Outside [diameter]	34.29 mm	15.67 - 47.88 mm
Features	Clamp Screws	Clamp Screws, Self-Locking
For Use With/Related Products	MIL-DTL-26482 Series II, MIL-DTL-83723 Series I, III, MIL-DTL-5015 Series 3400	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III, MIL-DTL-83723 Series I, III, MIL-DTL-5015 Series 3400
Material	Aluminum Alloy	Aluminum Alloy
Plating	Electroless Nickel	Cadmium, Electroless Nickel, Cadmium Nickel, Anodized
Shell Size - Insert	20	7 - 24
Shell Size - Insert	-	27, 18, 12, 14
Shielding	-	Unshielded
Thread Size	1 3/16-18 UNEF	3/4-20 UNEF, 7/8-20 UNEF, 1 3/16-18 UNEF, 1/2-20 UNF, 1 5/16-18 UNEF, 1-20 UNEF, 5/8-24 UNEF
Type	Cable Clamp	Cable Clamp

M85049/52 Series

CONN CABLE CLAMP SZ22 OLIVE

Part	Type	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Features	Cable Opening [diameter]	Cable Opening [diameter]	Material	Plating	For Use With/Related Products	Shielding	Color	Shell Size - Insert	Cable Exit	Cable Opening [custom]	Cable Opening [custom]	Shell Size - Insert	Thread Size	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [diameter]	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]
Amphenol Interconnect India M85049/52S22W	Cable Clamp	44.7 mm	1.76 in	Clamp Screws, Self-Locking	0.644 in, 0.956 in	16.36 mm, 24.28 mm	Aluminum Alloy	Cadmium	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III	Unshielded	Olive Drab	22	180 °
Amphenol Interconnect India M85049/52-1-18N	Cable Clamp	30.94 mm	1.218 "	Clamp Screws			Aluminum Alloy	Electroless Nickel	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III	Unshielded	Silver		180 °	13.21 mm, 18.03 mm	0.52 in, 0.71 in	18, 27
Amphenol Interconnect India M85049/52-1-12N	Cable Clamp	21.84 mm	0.86 in	Clamp Screws			Aluminum Alloy	Electroless Nickel	MIL-DTL-26482 Series II, MIL-DTL-5015 Series 3400, MIL-DTL-83723 Series I, III		Silver	12	180 °				3/4-20 UNEF	10.67 mm	7.37 mm	0.42 in	0.29 in
Amphenol Interconnect India M85049/52-1-14W	Cable Clamp	24.9 mm	0.98 in	Clamp Screws			Aluminum Alloy	Cadmium Nickel	MIL-DTL-26482 Series II, MIL-DTL-5015 Series 3400, MIL-DTL-83723 Series I, III		Olive	14	180 °				7/8-20 UNEF		8.89 mm	0.48 in	0.35 in	12.19 mm
Amphenol Interconnect India M85049/52-1-20N	Cable Clamp	34.29 mm	1.35 in	Clamp Screws	0.58 in, 0.83 in	14.73 mm	Aluminum Alloy	Electroless Nickel	MIL-DTL-26482 Series II, MIL-DTL-5015 Series 3400, MIL-DTL-83723 Series I, III		Silver	20	180 °				1 3/16-18 UNEF						21.08 mm
Amphenol Interconnect India M85049/52S24N	Cable Clamp	47.88 mm	1.885 "	Clamp Screws, Self-Locking			Aluminum Alloy	Electroless Nickel	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III	Unshielded	Silver	24	180 °	18.03 mm	0.71 in, 1.08 in									27.43 mm
Amphenol Interconnect India M85049/52S12N	Cable Clamp	28.83 mm	1.135 in	Clamp Screws, Self-Locking			Aluminum Alloy	Electroless Nickel	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III	Unshielded	Silver	7, 12	180 °												0.416 in	10.57 mm	7.39 mm	0.291 in
Amphenol Interconnect India M85049/52-1-14N	Cable Clamp	24.9 mm	0.98 in	Clamp Screws			Aluminum Alloy	Electroless Nickel	MIL-DTL-26482 Series II, MIL-DTL-5015 Series 3400, MIL-DTL-83723 Series I, III		Silver	14	180 °				7/8-20 UNEF		8.89 mm	0.48 in	0.35 in	12.19 mm
Amphenol Interconnect India M85049/52S14W	Cable Clamp	32 mm	1.26 in	Clamp Screws, Self-Locking			Aluminum Alloy	Cadmium	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III	Unshielded	Olive Drab		180 °			12, 14			8.92 mm	0.476 in	0.351 in	12.09 mm
Amphenol Interconnect India M85049/52-1-8W	Cable Clamp	15.75 mm	0.62 "	Clamp Screws			Aluminum Alloy	Cadmium Nickel	MIL-DTL-26482 Series II, MIL-DTL-5015 Series 3400, MIL-DTL-83723 Series I, III		Olive	8	180 °				1/2-20 UNF								0.204 in	5.18 mm	3.18 mm	0.125 in
