M85049/52-1-18N

Active

Amphenol Interconnect India

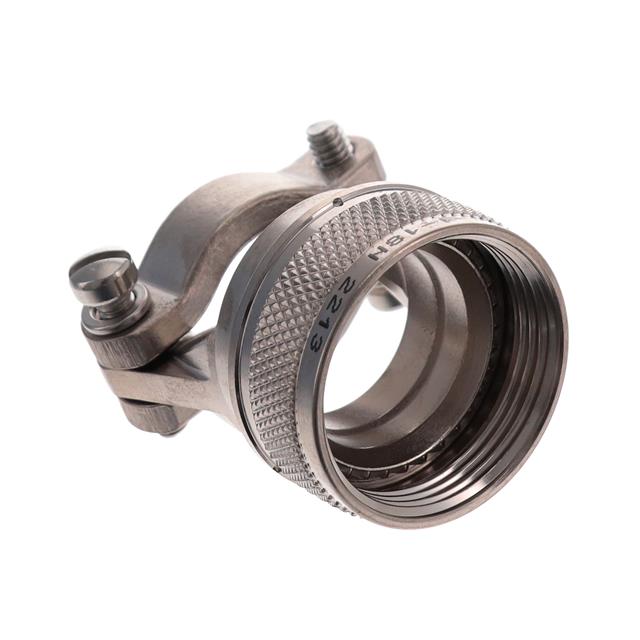

CONN CABLE CLAMP SZ18 27 SILVER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.47
		10	$ 13.71
		25	$ 13.18
		50	$ 12.65
		100	$ 11.95
		250	$ 10.90
		500	$ 10.19
		1000	$ 9.35

Description

General part information

M85049/52 Series

Silver Connector Cable Clamp 18, 27

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M85049/52-1-18N	M85049/52 Series

Cable Exit	180 °	180 °
Cable Opening	-	0.58 - 0.956 in
Cable Opening	-	14.73 - 24.28 mm
Cable Opening	-	7.37 - 10.67 mm
Cable Opening	-	4.83 - 8.92 mm
Cable Opening	-	0.29 - 0.48 in
Cable Opening	-	0.19 - 0.351 in
Cable Opening	-	12.09 - 12.19 mm
Cable Opening	-	21.08 mm
Cable Opening	-	27.43 mm
Cable Opening	-	0.204 - 1.081 in
Cable Opening	-	5.18 - 27.46 mm
Cable Opening	-	3.18 - 17.93 mm
Cable Opening	-	0.125 - 0.706 in
Cable Opening [custom]	13.21 mm, 18.03 mm	12.7 - 24.38 mm
Cable Opening [custom]	0.71 in, 0.52 in	0.5 - 1.08 in
Color	Silver	Olive Drab, Silver, Olive, Black
Diameter - Outside [diameter]	30.94 mm	15.67 - 47.88 mm
Diameter - Outside [diameter]	1.218 "	0.617 - 1.885 in
Features	Clamp Screws	Clamp Screws, Self-Locking
For Use With/Related Products	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III, MIL-DTL-83723 Series I, III, MIL-DTL-5015 Series 3400
Material	Aluminum Alloy	Aluminum Alloy
Plating	Electroless Nickel	Cadmium, Electroless Nickel, Cadmium Nickel, Anodized
Shell Size - Insert	27, 18	27, 18, 12, 14
Shell Size - Insert	-	7 - 24
Shielding	Unshielded	Unshielded
Thread Size	-	3/4-20 UNEF, 7/8-20 UNEF, 1 3/16-18 UNEF, 1/2-20 UNF, 1 5/16-18 UNEF, 1-20 UNEF, 5/8-24 UNEF
Type	Cable Clamp	Cable Clamp

M85049/52 Series

CONN CABLE CLAMP SZ22 OLIVE

Part	Type	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Features	Cable Opening [diameter]	Cable Opening [diameter]	Material	Plating	For Use With/Related Products	Shielding	Color	Shell Size - Insert	Cable Exit	Cable Opening [custom]	Cable Opening [custom]	Shell Size - Insert	Thread Size	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [diameter]	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]
Amphenol Interconnect India M85049/52S22W	Cable Clamp	44.7 mm	1.76 in	Clamp Screws, Self-Locking	0.644 in, 0.956 in	16.36 mm, 24.28 mm	Aluminum Alloy	Cadmium	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III	Unshielded	Olive Drab	22	180 °
Amphenol Interconnect India M85049/52-1-18N	Cable Clamp	30.94 mm	1.218 "	Clamp Screws			Aluminum Alloy	Electroless Nickel	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III	Unshielded	Silver		180 °	13.21 mm, 18.03 mm	0.52 in, 0.71 in	18, 27
Amphenol Interconnect India M85049/52-1-12N	Cable Clamp	21.84 mm	0.86 in	Clamp Screws			Aluminum Alloy	Electroless Nickel	MIL-DTL-26482 Series II, MIL-DTL-5015 Series 3400, MIL-DTL-83723 Series I, III		Silver	12	180 °				3/4-20 UNEF	10.67 mm	7.37 mm	0.42 in	0.29 in
Amphenol Interconnect India M85049/52-1-14W	Cable Clamp	24.9 mm	0.98 in	Clamp Screws			Aluminum Alloy	Cadmium Nickel	MIL-DTL-26482 Series II, MIL-DTL-5015 Series 3400, MIL-DTL-83723 Series I, III		Olive	14	180 °				7/8-20 UNEF		8.89 mm	0.48 in	0.35 in	12.19 mm
Amphenol Interconnect India M85049/52-1-20N	Cable Clamp	34.29 mm	1.35 in	Clamp Screws	0.58 in, 0.83 in	14.73 mm	Aluminum Alloy	Electroless Nickel	MIL-DTL-26482 Series II, MIL-DTL-5015 Series 3400, MIL-DTL-83723 Series I, III		Silver	20	180 °				1 3/16-18 UNEF						21.08 mm
Amphenol Interconnect India M85049/52S24N	Cable Clamp	47.88 mm	1.885 "	Clamp Screws, Self-Locking			Aluminum Alloy	Electroless Nickel	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III	Unshielded	Silver	24	180 °	18.03 mm	0.71 in, 1.08 in									27.43 mm
Amphenol Interconnect India M85049/52S12N	Cable Clamp	28.83 mm	1.135 in	Clamp Screws, Self-Locking			Aluminum Alloy	Electroless Nickel	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III	Unshielded	Silver	7, 12	180 °												0.416 in	10.57 mm	7.39 mm	0.291 in
Amphenol Interconnect India M85049/52-1-14N	Cable Clamp	24.9 mm	0.98 in	Clamp Screws			Aluminum Alloy	Electroless Nickel	MIL-DTL-26482 Series II, MIL-DTL-5015 Series 3400, MIL-DTL-83723 Series I, III		Silver	14	180 °				7/8-20 UNEF		8.89 mm	0.48 in	0.35 in	12.19 mm
Amphenol Interconnect India M85049/52S14W	Cable Clamp	32 mm	1.26 in	Clamp Screws, Self-Locking			Aluminum Alloy	Cadmium	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III	Unshielded	Olive Drab		180 °			12, 14			8.92 mm	0.476 in	0.351 in	12.09 mm
Amphenol Interconnect India M85049/52-1-8W	Cable Clamp	15.75 mm	0.62 "	Clamp Screws			Aluminum Alloy	Cadmium Nickel	MIL-DTL-26482 Series II, MIL-DTL-5015 Series 3400, MIL-DTL-83723 Series I, III		Olive	8	180 °				1/2-20 UNF								0.204 in	5.18 mm	3.18 mm	0.125 in
