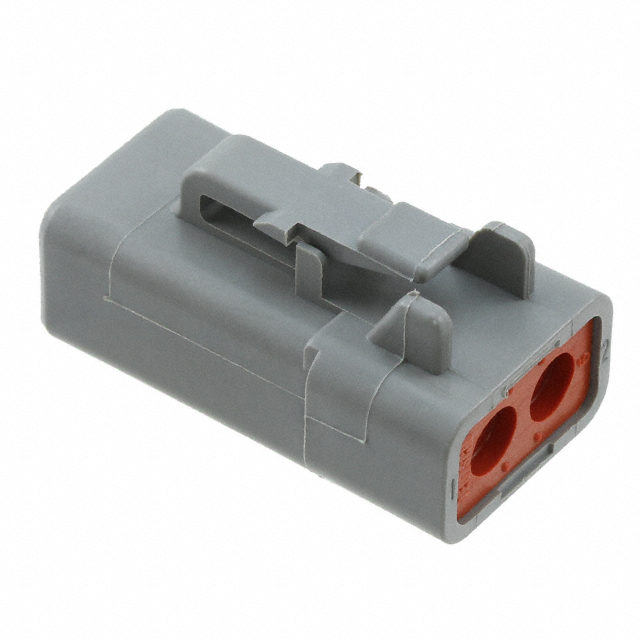

DTP06-2S - DTP06-2S

DTP06-2S

Active
TE Connectivity Raychem Cable Protection

CONN HOUSING PL 2 POS 6.71MM CRIMP ST CABLE MOUNT GRAY BOX

Deep-Dive with AI

Search across all available documentation for this part.

Documents48 VOLT EVALUATION STRATEGYENG_CD_DTP06-2S_C.pdf+8
DTP06-2S - DTP06-2S

DTP06-2S

Active
TE Connectivity Raychem Cable Protection

CONN HOUSING PL 2 POS 6.71MM CRIMP ST CABLE MOUNT GRAY BOX

Deep-Dive with AI

Documents48 VOLT EVALUATION STRATEGYENG_CD_DTP06-2S_C.pdf+8

Technical Specifications

Parameters and characteristics for this part

SpecificationDTP06-2S
ColorGray
Connector TypePlug
Contact TerminationCrimp
Contact TypeFemale Socket
Fastening TypeLatch Lock
FeaturesIP68, IP6K9K
Insulation MaterialPlastic
Mounting TypeFree Hanging (In-Line)
NoteContacts Not Included
Number of Positions2
Number of Rows1
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 3.37
10$ 3.06
25$ 2.90
50$ 2.83
100$ 2.69
250$ 2.36
500$ 2.29
1000$ 1.95
2500$ 1.82
LCSCPiece 1$ 2.09
10$ 2.05
30$ 2.01
100$ 1.98

Description

General part information

DEUTSCH DT Series

2 Position Housing, Housing for Female Terminals, Wire-to-Wire, 6.7 mm [.264 in] Centerline, Sealable, Gray, Wire & Cable, Power, Hybrid
