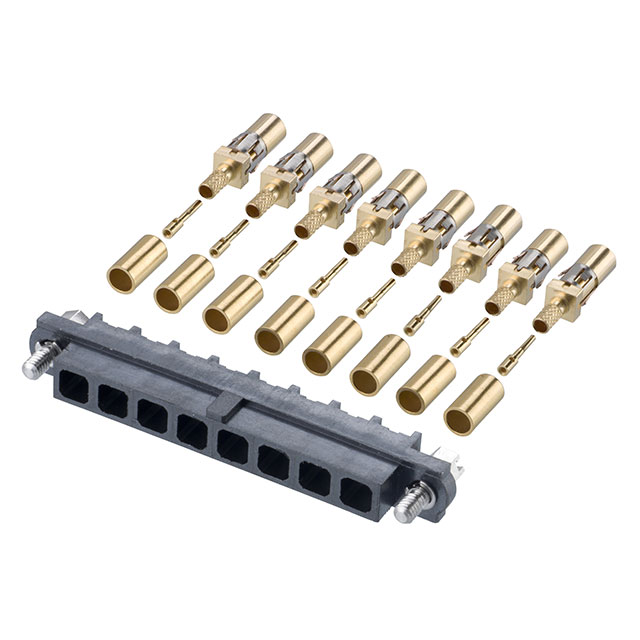

M80-FC305F1-08

Active

Harwin Inc.

8 POS. FEMALE SIL RG178 CABLE CONN. KIT, JACKSCREWS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet M80-263F102-00-00 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-FC305F1-08

Cable Termination	Crimp
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Features	Polarizing Key, Jackscrews
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Number of Rows	1
Pitch [x]	4 mm
Pitch [x]	0.157 in
Wire Type	Coaxial

M80-FC3 Series

Part	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Features	Contact Finish	Cable Termination	Connector Type	Number of Positions	Number of Rows	Color	Shielding	Length [x]	Pitch [x]	Pitch [x]	Wire Type	Mounting Type	Length	Length	Length
Harwin Inc. M80-FC305F1-04-0450L	0.157 in	4 mm	17.76 in	450 mm	Polarizing Key Screw Lock	Gold	Crimp	Socket to Individual Wire Leads	4	1	Individual Tan	Unshielded
Harwin Inc. M80-FC305F1-02-0300L	0.157 in	4 mm	0.984 '	300 mm	Polarizing Key Screw Lock	Gold	Crimp	Socket to Individual Wire Leads	2	1	Individual Tan	Unshielded	11.81 "
Harwin Inc. M80-FC305F1-08					Jackscrews Polarizing Key	Gold	Crimp	Receptacle	8	1	Black			4 mm	0.157 in	Coaxial	Free Hanging (In-Line)
Harwin Inc. M80-FC305F1-08-0450L	0.157 in	4 mm	17.76 in	450 mm	Polarizing Key Screw Lock	Gold	Crimp	Socket to Individual Wire Leads	8	1	Individual Tan	Unshielded
Harwin Inc. M80-FC305F1-04-0150L	0.157 in	4 mm			Polarizing Key Screw Lock	Gold	Crimp	Socket to Individual Wire Leads	4	1	Individual Tan	Unshielded						150 mm	5.91 "	0.492 ft
Harwin Inc. M80-FC305F1-08-0300F1	0.157 in	4 mm	0.984 '	300 mm	Polarizing Key Screw Lock	Gold	Crimp	Socket to Socket	8	1	Individual Tan	Unshielded	11.81 "
Harwin Inc. M80-FC305F1-02					Jackscrews Polarizing Key	Gold	Crimp	Receptacle	2	1	Black			4 mm	0.157 in	Coaxial	Free Hanging (In-Line)
Harwin Inc. M80-FC305F1-06-0450L	0.157 in	4 mm	17.76 in	450 mm	Polarizing Key Screw Lock	Gold	Crimp	Socket to Individual Wire Leads	6	1	Individual Tan	Unshielded
Harwin Inc. M80-FC305F1-06					Jackscrews Polarizing Key	Gold	Crimp	Receptacle	6	1	Black			4 mm	0.157 in	Coaxial	Free Hanging (In-Line)
Harwin Inc. M80-FC305F1-04					Jackscrews Polarizing Key	Gold	Crimp	Receptacle	4	1	Black			4 mm	0.157 in	Coaxial	Free Hanging (In-Line)
