M80-FC305F1-06-0450L

Active

Harwin Inc.

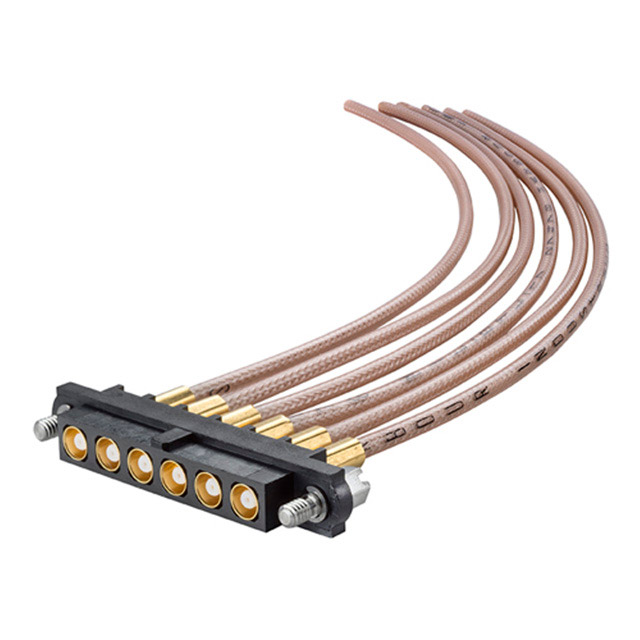

6 POS. FEMALE SIL RG178 CABLE ASSEMBLY, 450MM, SINGLE-END, JACKSCREWS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet M80, M83 Series Spec Sheet +3

M80-FC305F1-06-0450L

Active

Harwin Inc.

6 POS. FEMALE SIL RG178 CABLE ASSEMBLY, 450MM, SINGLE-END, JACKSCREWS

Deep-Dive with AI

DocumentsDatasheet M80, M83 Series Spec Sheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-FC305F1-06-0450L

Cable Termination	Crimp
Color	Individual, Tan
Connector Type	Socket to Individual Wire Leads
Contact Finish	Gold
Features	Screw Lock, Polarizing Key
Length [x]	17.76 in
Length [x]	450 mm
Number of Positions	6
Number of Rows	1
Pitch - Connector	0.157 in
Pitch - Connector	4 mm
Shielding	Unshielded

M80-FC3 Series

Part	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Features	Contact Finish	Cable Termination	Connector Type	Number of Positions	Number of Rows	Color	Shielding	Length [x]	Pitch [x]	Pitch [x]	Wire Type	Mounting Type	Length	Length	Length
Harwin Inc. M80-FC305F1-04-0450L	0.157 in	4 mm	17.76 in	450 mm	Polarizing Key Screw Lock	Gold	Crimp	Socket to Individual Wire Leads	4	1	Individual Tan	Unshielded
Harwin Inc. M80-FC305F1-02-0300L	0.157 in	4 mm	0.984 '	300 mm	Polarizing Key Screw Lock	Gold	Crimp	Socket to Individual Wire Leads	2	1	Individual Tan	Unshielded	11.81 "
Harwin Inc. M80-FC305F1-08					Jackscrews Polarizing Key	Gold	Crimp	Receptacle	8	1	Black			4 mm	0.157 in	Coaxial	Free Hanging (In-Line)
Harwin Inc. M80-FC305F1-08-0450L	0.157 in	4 mm	17.76 in	450 mm	Polarizing Key Screw Lock	Gold	Crimp	Socket to Individual Wire Leads	8	1	Individual Tan	Unshielded
Harwin Inc. M80-FC305F1-04-0150L	0.157 in	4 mm			Polarizing Key Screw Lock	Gold	Crimp	Socket to Individual Wire Leads	4	1	Individual Tan	Unshielded						150 mm	5.91 "	0.492 ft
Harwin Inc. M80-FC305F1-08-0300F1	0.157 in	4 mm	0.984 '	300 mm	Polarizing Key Screw Lock	Gold	Crimp	Socket to Socket	8	1	Individual Tan	Unshielded	11.81 "
Harwin Inc. M80-FC305F1-02					Jackscrews Polarizing Key	Gold	Crimp	Receptacle	2	1	Black			4 mm	0.157 in	Coaxial	Free Hanging (In-Line)
Harwin Inc. M80-FC305F1-06-0450L	0.157 in	4 mm	17.76 in	450 mm	Polarizing Key Screw Lock	Gold	Crimp	Socket to Individual Wire Leads	6	1	Individual Tan	Unshielded
Harwin Inc. M80-FC305F1-06					Jackscrews Polarizing Key	Gold	Crimp	Receptacle	6	1	Black			4 mm	0.157 in	Coaxial	Free Hanging (In-Line)
Harwin Inc. M80-FC305F1-04					Jackscrews Polarizing Key	Gold	Crimp	Receptacle	4	1	Black			4 mm	0.157 in	Coaxial	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 109.01
		10	$ 100.03
		30	$ 96.19
		50	$ 92.98
		100	$ 87.85
Newark	Each	10	$ 136.53
		25	$ 127.58
		50	$ 123.10
		100	$ 118.62

Description

General part information

M80-FC3 Series

6 Position Cable Assembly Rectangular Socket to Individual Wire Leads 1.48' (450.00mm)

Documents

Technical documentation and resources

Datasheet

M80, M83 Series Spec Sheet

Datasheet

M80-263F102-00-00

Manufacturer Catalogue EN

Datasheet

Technical Data Sheet EN

Datasheet
