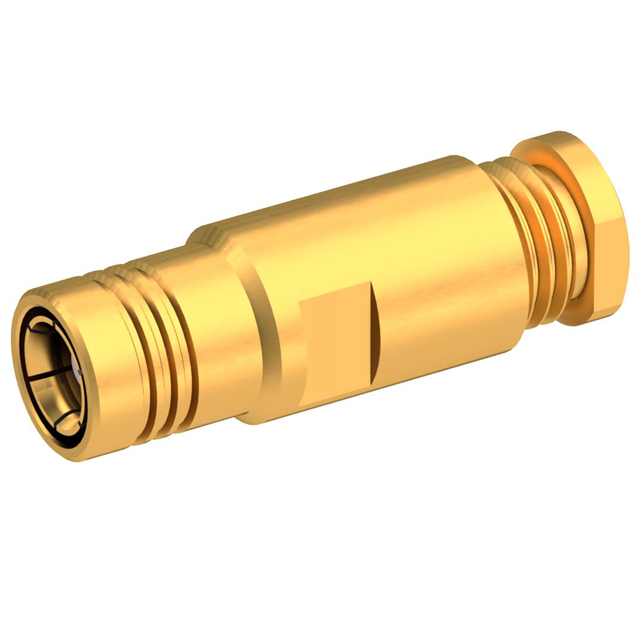

RF SMB CONNECTOR, FEMALE, CABLE MOUNT, CLAMP TERMINAL, PLUG

Deep-Dive with AI

Search across all available documentation for this part.

R114009000

Active

Radiall USA, Inc.

RF SMB CONNECTOR, FEMALE, CABLE MOUNT, CLAMP TERMINAL, PLUG

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R114009000

Body Finish	Gold
Body Material	Brass
Cable Group	195
Cable Group	RG-180
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	335 V

R11400 Series

Part	Number of Ports	Contact Termination	Center Contact Material	Voltage Rating	Cable Group	Center Contact Plating	Shield Termination	Frequency - Max [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Impedance	Fastening Type	Body Material	Connector Type	Housing Color	Body Finish	Mating Cycles	Connector Style	Cable Group
Radiall USA, Inc. R114005133	1	Solder	Beryllium Copper	335 V	187 188 316 RG-179	Gold	Clamp	4 GHz	Free Hanging (In-Line)	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	50 Ohms	Snap-On	Brass	Female Socket Plug	Gold	Gold	500	SMB
Radiall USA, Inc. R114003420W	1	Solder	Beryllium Copper	250 VDC	RG-178DS	Gold	Clamp	4 GHz	Free Hanging (In-Line)	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	50 Ohms	Snap-On	Brass	Female Socket Plug	Gold	Gold	500	SMB
Radiall USA, Inc. R114003000W	1	Solder	Beryllium Copper	250 VDC	RG-178	Gold	Clamp	4 GHz	Free Hanging (In-Line)	-55 °C	100 °C	Polytetrafluoroethylene (PTFE)	50 Ohms	Snap-On	Brass	Female Socket Plug	Gold	Gold	500	SMB	196
Radiall USA, Inc. R114005133W	1	Solder	Beryllium Copper	335 V	187 188 316 RG-179	Gold	Clamp	4 GHz	Free Hanging (In-Line)	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	50 Ohms	Snap-On	Brass	Female Socket Plug	Gold	Gold	500	SMB
Radiall USA, Inc. R114003420	1	Solder	Beryllium Copper	250 VDC	RG-178DS	Gold	Clamp	4 GHz	Free Hanging (In-Line)	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	50 Ohms	Snap-On	Brass	Female Socket Plug	Gold	Gold	500	SMB
Radiall USA, Inc. R114009000	1	Solder	Beryllium Copper	335 V	RG-180	Gold	Clamp	4 GHz	Free Hanging (In-Line)	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	50 Ohms	Snap-On	Brass	Female Socket Plug	Gold	Gold	500	SMB	195
Radiall USA, Inc. R114005000	1	Solder	Beryllium Copper	335 V	179 187 188 316 RG-174	Gold	Clamp	4 GHz	Free Hanging (In-Line)	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	50 Ohms	Snap-On	Brass	Female Socket Plug	Gold	Gold	500	SMB
Radiall USA, Inc. R114005000W	1	Solder	Beryllium Copper	250 VDC	179 187 188 316 RG-174	Gold	Clamp	4 GHz	Free Hanging (In-Line)	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	50 Ohms	Snap-On	Brass	Female Socket Plug	Gold	Gold	500	SMB
