R114005000

Active

Radiall USA, Inc.

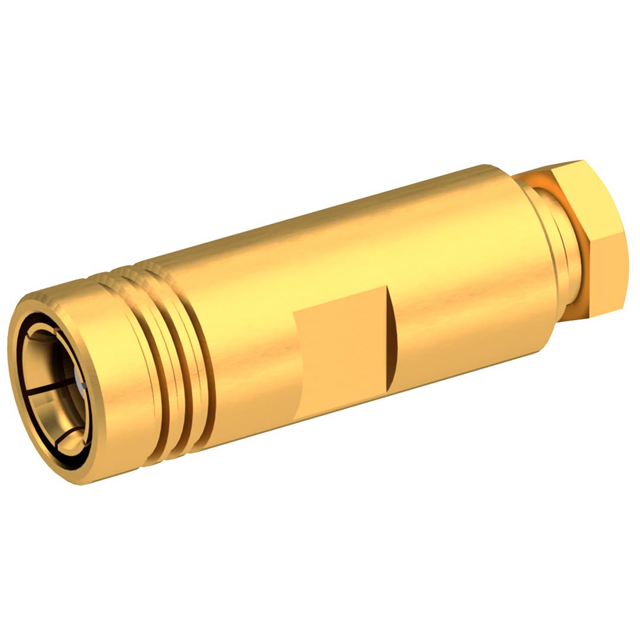

SMB / STRAIGHT PLUG CLAMP TYPE C

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R114005000

Body Finish	Gold
Body Material	Brass
Cable Group	RG-174, 188, 316, 187, 179
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	335 V

R11400 Series

Part	Number of Ports	Contact Termination	Center Contact Material	Voltage Rating	Cable Group	Center Contact Plating	Shield Termination	Frequency - Max [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Impedance	Fastening Type	Body Material	Connector Type	Housing Color	Body Finish	Mating Cycles	Connector Style	Cable Group
Radiall USA, Inc. R114005133	1	Solder	Beryllium Copper	335 V	187 188 316 RG-179	Gold	Clamp	4 GHz	Free Hanging (In-Line)	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	50 Ohms	Snap-On	Brass	Female Socket Plug	Gold	Gold	500	SMB
Radiall USA, Inc. R114003420W	1	Solder	Beryllium Copper	250 VDC	RG-178DS	Gold	Clamp	4 GHz	Free Hanging (In-Line)	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	50 Ohms	Snap-On	Brass	Female Socket Plug	Gold	Gold	500	SMB
Radiall USA, Inc. R114003000W	1	Solder	Beryllium Copper	250 VDC	RG-178	Gold	Clamp	4 GHz	Free Hanging (In-Line)	-55 °C	100 °C	Polytetrafluoroethylene (PTFE)	50 Ohms	Snap-On	Brass	Female Socket Plug	Gold	Gold	500	SMB	196
Radiall USA, Inc. R114005133W	1	Solder	Beryllium Copper	335 V	187 188 316 RG-179	Gold	Clamp	4 GHz	Free Hanging (In-Line)	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	50 Ohms	Snap-On	Brass	Female Socket Plug	Gold	Gold	500	SMB
Radiall USA, Inc. R114003420	1	Solder	Beryllium Copper	250 VDC	RG-178DS	Gold	Clamp	4 GHz	Free Hanging (In-Line)	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	50 Ohms	Snap-On	Brass	Female Socket Plug	Gold	Gold	500	SMB
Radiall USA, Inc. R114009000	1	Solder	Beryllium Copper	335 V	RG-180	Gold	Clamp	4 GHz	Free Hanging (In-Line)	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	50 Ohms	Snap-On	Brass	Female Socket Plug	Gold	Gold	500	SMB	195
Radiall USA, Inc. R114005000	1	Solder	Beryllium Copper	335 V	179 187 188 316 RG-174	Gold	Clamp	4 GHz	Free Hanging (In-Line)	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	50 Ohms	Snap-On	Brass	Female Socket Plug	Gold	Gold	500	SMB
Radiall USA, Inc. R114005000W	1	Solder	Beryllium Copper	250 VDC	179 187 188 316 RG-174	Gold	Clamp	4 GHz	Free Hanging (In-Line)	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	50 Ohms	Snap-On	Brass	Female Socket Plug	Gold	Gold	500	SMB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 16.93
		10	$ 13.03
		25	$ 11.78
		50	$ 10.94
		100	$ 10.18
		250	$ 9.28
		500	$ 8.67
		1000	$ 8.12

Description

General part information

R11400 Series

SMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder
