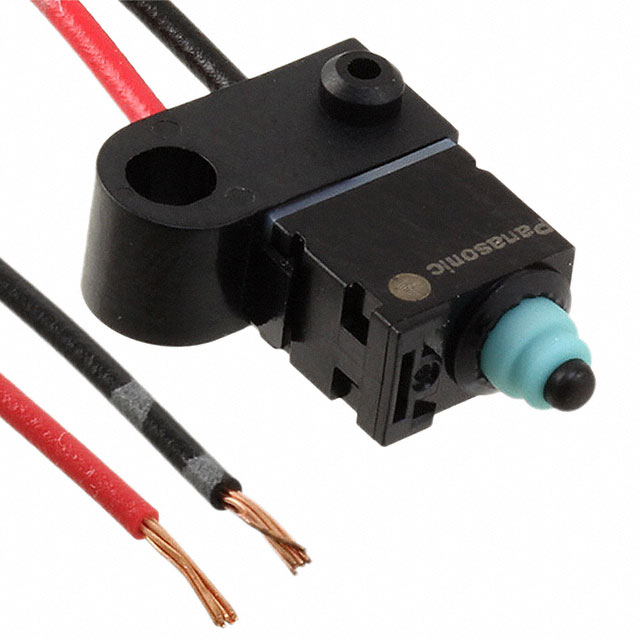

ASQMR11620A
ActivePanasonic Electric Works
SWITCH SNAP ACT FAIL DETECT 16V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ASQMR11620A
ActivePanasonic Electric Works
SWITCH SNAP ACT FAIL DETECT 16V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASQMR11620A |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPST-NC |
| Current Rating (Amps) | 1 mA |
| Electrical Life | 200000 Cycles |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Chassis Mount |
| Operating Force | 122 gf |
| Operating Position | 0.541 in |
| Operating Position | 13.75 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 1.6 mm |
| Overtravel | 0.063 in |
| Switch Function | On-Mom |
| Termination Style | Wire Leads |
| Voltage Rating - DC | 16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.95 | |
| 10 | $ 5.76 | |||
| 25 | $ 5.34 | |||
| 40 | $ 5.14 | |||
| 80 | $ 4.86 | |||
| 230 | $ 4.46 | |||
| 440 | $ 4.23 | |||
| 945 | $ 3.97 | |||
Description
General part information
ASQMR11 Series
Switch SPST-NC Chassis Mount
