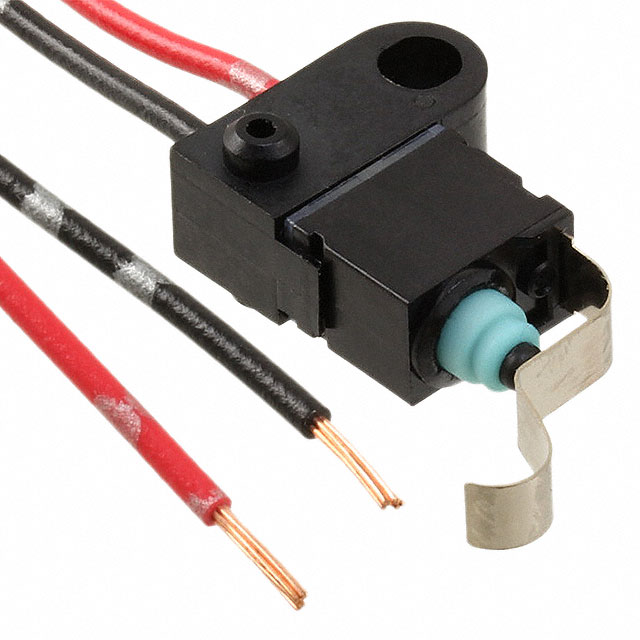

ASQMR11628A

Active

Panasonic Electric Works

SWITCH SNAP ACT FAIL DETECT 16V

Search across all available documentation for this part.

Active

Panasonic Electric Works

SWITCH SNAP ACT FAIL DETECT 16V

Technical Specifications

Parameters and characteristics for this part

Part	Circuit	Switch Function	Voltage Rating - DC	Mounting Type	Actuator Type	Operating Position	Operating Position	Ingress Protection	Termination Style	Overtravel	Overtravel	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Current Rating (Amps)	Electrical Life
Panasonic Electric Works ASQMR11628A	SPST-NC	On-Mom	16 V	Chassis Mount	Lever Simulated Roller	17.4 mm	0.685 in	IP67 - Dust Tight Waterproof	Wire Leads	0.081 in	2.05 mm	85 °C	-40 °C	153 gf	1 mA	200000 Cycles
Panasonic Electric Works ASQMR11630A	SPST-NO	Off-Mom	16 V	Chassis Mount	Round (Pin Plunger)	13.75 mm	0.541 in	IP67 - Dust Tight Waterproof	Wire Leads	0.063 in	1.6 mm	85 °C	-40 °C	122 gf	1 mA	200000 Cycles
Panasonic Electric Works ASQMR11620A	SPST-NC	On-Mom	16 V	Chassis Mount	Round (Pin Plunger)	13.75 mm	0.541 in	IP67 - Dust Tight Waterproof	Wire Leads	0.063 in	1.6 mm	85 °C	-40 °C	122 gf	1 mA	200000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPST-NC Chassis Mount
