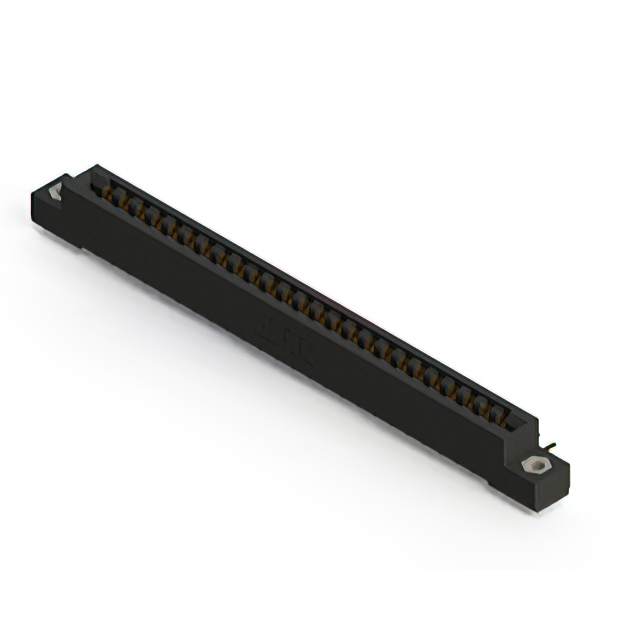

357-025-557-107

Active

EDAC Inc.

357 SERIES (.156" (3.96MM) CONTA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

357-025-557-107

Active

EDAC Inc.

357 SERIES (.156" (3.96MM) CONTA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	357-025-557-107

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	50
Number of Positions/Bay/Row [custom]	25
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Wire Wrap
Termination Rows	1

357-025 Series

...

Part	Color	Card Type	Termination	Pitch [x]	Pitch [x]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row [custom]	Mounting Type	Gender	Number of Rows	Contact Finish	Contact Type	Termination Rows	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Number of Positions
EDAC Inc. 357-025-525-103	Black	Non Specified - Single Edge	Solder	0.156 in	3.96 mm	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	25	Through Hole	Female	1	Gold	Semi Bellows	1	Single	-40 °C	105 ░C	10 Áin	0.25 Ám	Copper Alloy
EDAC Inc. 357-025-459-103	Black	Non Specified - Single Edge	Solder	0.156 in	3.96 mm	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	25	Through Hole Right Angle	Female	1	Tin	Semi Bellows	1	Single	-40 °C	105 ░C			Copper Alloy
EDAC Inc. 357-025-557-107	Black	Non Specified - Dual Edge	Wire Wrap	0.156 in	3.96 mm		Flush Mount M3 Threaded Insert Top Opening		Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	25	Through Hole Right Angle	Female	2	Gold	Semi Bellows	1	Dual	-40 °C	105 ░C	10 Áin	0.25 Ám	Copper Alloy	50
EDAC Inc. 357-025-559-108	Black	Non Specified - Single Edge	Solder	0.156 in	3.96 mm		4-40 Flush Mount Threaded Insert Top Opening		Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	25	Through Hole Right Angle	Female	1	Gold	Semi Bellows	1	Single	-40 °C	105 ░C	10 Áin	0.25 Ám	Copper Alloy
EDAC Inc. 357-025-557-102	Black	Non Specified - Dual Edge	Wire Wrap	0.156 in	3.96 mm	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	25	Through Hole Right Angle	Female	2	Gold	Semi Bellows	1	Dual	-40 °C	105 ░C	10 Áin	0.25 Ám	Copper Alloy	50
EDAC Inc. 357-025-457-103	Black	Non Specified - Dual Edge	Solder	0.156 in	3.96 mm	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	25	Through Hole Right Angle	Female	2	Tin	Semi Bellows	1	Dual	-40 °C	105 ░C			Copper Alloy	50
EDAC Inc. 357-025-559-112	Black	Non Specified - Single Edge	Solder	0.156 in	3.96 mm	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	25	Through Hole Right Angle	Female	1	Gold	Semi Bellows	1	Single	-40 °C	105 ░C	10 Áin	0.25 Ám	Copper Alloy
EDAC Inc. 357-025-405-107	Black	Non Specified - Single Edge	Solder Eyelet(s)	0.156 in	3.96 mm		Flush Mount M3 Threaded Insert Top Opening		Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	25	Through Hole	Female	1	Tin	Semi Bellows	1	Single	-40 °C	105 ░C			Copper Alloy
EDAC Inc. 357-025-431-112	Black	Non Specified - Single Edge	Solder	0.156 in	3.96 mm	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	25	Through Hole	Female	1	Tin	Semi Bellows	1	Single	-40 °C	105 ░C			Copper Alloy
EDAC Inc. 357-025-557-103	Black	Non Specified - Dual Edge	Wire Wrap	0.156 in	3.96 mm	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	25	Through Hole Right Angle	Female	2	Gold	Semi Bellows	1	Dual	-40 °C	105 ░C	10 Áin	0.25 Ám	Copper Alloy	50

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 29.67

Description

General part information

357-025 Series

50 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
