357-025-459-103
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
357-025-459-103
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 357-025-459-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Bay/Row [custom] | 25 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
357-025 Series
...
| Part | Color | Card Type | Termination | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Mounting Type | Gender | Number of Rows | Contact Finish | Contact Type | Termination Rows | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Black | Non Specified - Single Edge | Solder | 0.156 in | 3.96 mm | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 25 | Through Hole | Female | 1 | Gold | Semi Bellows | 1 | Single | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Copper Alloy | |
EDAC Inc. | Black | Non Specified - Single Edge | Solder | 0.156 in | 3.96 mm | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 25 | Through Hole Right Angle | Female | 1 | Tin | Semi Bellows | 1 | Single | -40 °C | 105 ░C | Copper Alloy | |||
EDAC Inc. | Black | Non Specified - Dual Edge | Wire Wrap | 0.156 in | 3.96 mm | Flush Mount M3 Threaded Insert Top Opening | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 25 | Through Hole Right Angle | Female | 2 | Gold | Semi Bellows | 1 | Dual | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Copper Alloy | 50 | ||
EDAC Inc. | Black | Non Specified - Single Edge | Solder | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 25 | Through Hole Right Angle | Female | 1 | Gold | Semi Bellows | 1 | Single | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Copper Alloy | |||
EDAC Inc. | Black | Non Specified - Dual Edge | Wire Wrap | 0.156 in | 3.96 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 25 | Through Hole Right Angle | Female | 2 | Gold | Semi Bellows | 1 | Dual | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Copper Alloy | 50 |
EDAC Inc. | Black | Non Specified - Dual Edge | Solder | 0.156 in | 3.96 mm | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 25 | Through Hole Right Angle | Female | 2 | Tin | Semi Bellows | 1 | Dual | -40 °C | 105 ░C | Copper Alloy | 50 | ||
EDAC Inc. | Black | Non Specified - Single Edge | Solder | 0.156 in | 3.96 mm | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 25 | Through Hole Right Angle | Female | 1 | Gold | Semi Bellows | 1 | Single | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Copper Alloy | |
EDAC Inc. | Black | Non Specified - Single Edge | Solder Eyelet(s) | 0.156 in | 3.96 mm | Flush Mount M3 Threaded Insert Top Opening | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 25 | Through Hole | Female | 1 | Tin | Semi Bellows | 1 | Single | -40 °C | 105 ░C | Copper Alloy | |||||
EDAC Inc. | Black | Non Specified - Single Edge | Solder | 0.156 in | 3.96 mm | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 25 | Through Hole | Female | 1 | Tin | Semi Bellows | 1 | Single | -40 °C | 105 ░C | Copper Alloy | |||
EDAC Inc. | Black | Non Specified - Dual Edge | Wire Wrap | 0.156 in | 3.96 mm | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 25 | Through Hole Right Angle | Female | 2 | Gold | Semi Bellows | 1 | Dual | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Copper Alloy | 50 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
357-025 Series

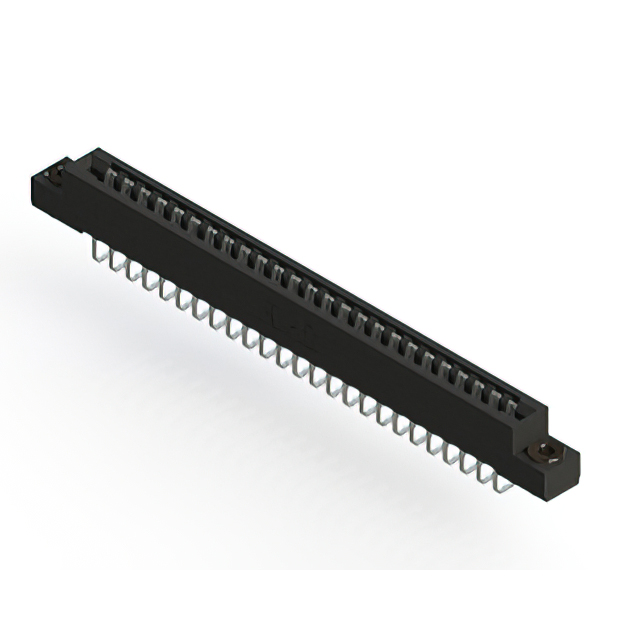

25 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Black
