494083-E
ActiveTE Connectivity Raychem Cable Protection

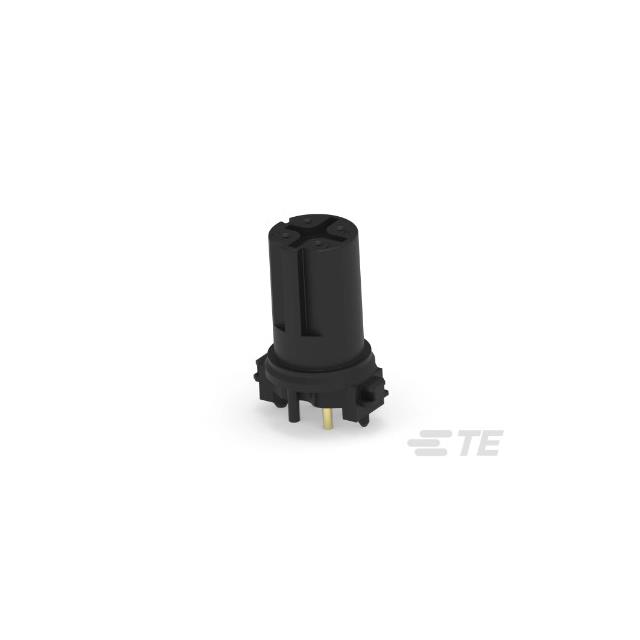

M12 FEMALE, D CODE, 4P, 17MM THR
Deep-Dive with AI
Search across all available documentation for this part.
494083-E
ActiveTE Connectivity Raychem Cable Protection
M12 FEMALE, D CODE, 4P, 17MM THR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 494083-E |
|---|---|
| Color | Black |
| Connector Type | Female Sockets, Insert |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Features | Board Guide, Insert Only, Requires Shell |
| Ingress Protection | IP67, IP65 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | D |
| Shell Size - Insert | M12-4 |
| Shielding | Unshielded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 6.13 | |
| 10 | $ 5.54 | |||
| 25 | $ 5.24 | |||
| 50 | $ 5.11 | |||
| 100 | $ 4.86 | |||
| 300 | $ 4.34 | |||
| 500 | $ 4.09 | |||
| 1000 | $ 3.58 | |||
| 2500 | $ 3.40 | |||
Description
General part information
M12 Connector Series
4 Position Circular Connector, Cable-to-Board, Printed Circuit Board, Power, Signal & High Speed Data, Board Mount, D Code, M12 Connector
