354131-E

Active

TE Connectivity Raychem Cable Protection

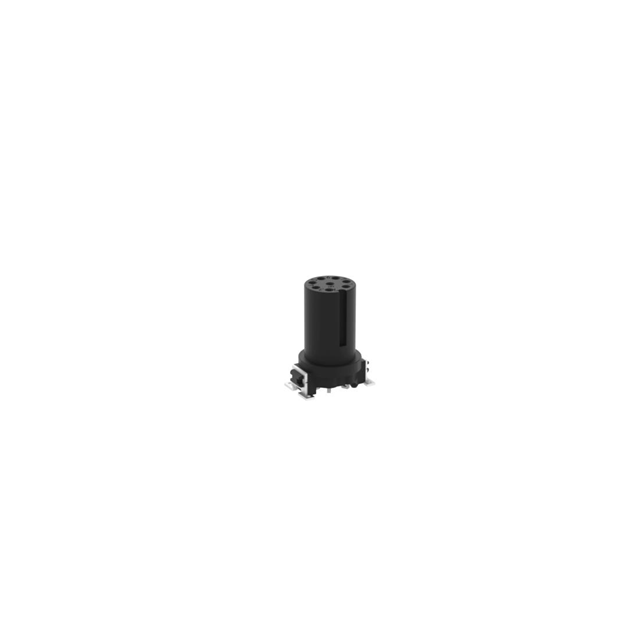

CONN M12 CIRCULAR SKT 8 POS SOLDER ST SMD 8 TERMINAL 1 PORT T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsApplication spec. for M8 / M12 Header Vertical Code A, B, D, X UL_CERT_E84703_20140116_C1 +2

354131-E

Active

TE Connectivity Raychem Cable Protection

CONN M12 CIRCULAR SKT 8 POS SOLDER ST SMD 8 TERMINAL 1 PORT T/R

Deep-Dive with AI

DocumentsApplication spec. for M8 / M12 Header Vertical Code A, B, D, X UL_CERT_E84703_20140116_C1 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	354131-E

Color	Black
Connector Type	Female Sockets, Insert
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Features	Board Guide, Insert Only, Requires Shell
Ingress Protection	IP67, IP65
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	A
Shell Size - Insert	M12-8
Shielding	Unshielded
Termination	Solder Eyelet(s)

M12 Connector Series

Part	Ingress Protection	Color	Current Rating (Amps)	Shell Size - Insert	Connector Type	Contact Material	Features	Orientation	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Positions	Termination	Insert Material	Mounting Type	Shielding	Voltage Rating	Primary Material	Shell Material
TE Connectivity Raychem Cable Protection 484936-E	IP67 - Dust Tight Waterproof	Black	4 A	M12-4	Female Sockets Insert	Copper Alloy	Board Guide Insert Only Requires Shell	D	Gold	-25 °C	85 °C	UL94 V-0	4	Solder	Liquid Crystal Polymer (LCP)	Surface Mount	Unshielded
TE Connectivity Raychem Cable Protection 494167-E	IP65 IP67	Black		M12-4	Insert Male Pins	Copper Alloy	Board Guide Insert Only Requires Shell	A	Gold	-25 °C	85 °C	UL94 V-0	4	Solder		Surface Mount	Unshielded
TE Connectivity Raychem Cable Protection 225454-E	IP67 - Dust Tight Waterproof	Black	2 A	M12-8	Insert Male Pins		Board Guide Insert Only Requires Shell	A	Gold	-25 °C	85 °C	UL94 V-0	8	Solder	Liquid Crystal Polymer (LCP)	Through Hole Right Angle	Unshielded	30 VDC	Plastic	Liquid Crystal Polymer (LCP)
TE Connectivity Raychem Cable Protection 484719-E
TE Connectivity Raychem Cable Protection 354131-E	IP65 IP67	Black		M12-8	Female Sockets Insert	Copper Alloy	Board Guide Insert Only Requires Shell	A	Gold	-25 °C	85 °C	UL94 V-0	8	Solder Eyelet(s)		Surface Mount	Unshielded
TE Connectivity Raychem Cable Protection 225242-E	IP67 - Dust Tight Waterproof	Black	4 A	M12-5	Insert Male Pins		Insert Only Requires Shell	A	Gold	-25 °C	85 °C			Solder		Through Hole Right Angle	Shielded	60 VDC	Plastic	Liquid Crystal Polymer (LCP)
TE Connectivity Raychem Cable Protection 384891-E	IP67 - Dust Tight Waterproof	Black	4 A	M12-5	Female Sockets Insert	Copper Alloy	Board Guide Insert Only Requires Shell	B	Gold	-25 °C	85 °C	UL94 V-0		Solder	Liquid Crystal Polymer (LCP)	Surface Mount	Unshielded	60 VDC
TE Connectivity Raychem Cable Protection 454952-E	IP65 IP67	Black		M12-8	Female Sockets Insert	Copper Alloy	Board Guide Insert Only Requires Shell	A	Gold	-25 °C	85 °C	UL94 V-0	8	Solder Eyelet(s)		Surface Mount	Unshielded
TE Connectivity Raychem Cable Protection 235045-E	IP65 IP67	Black		M12-8	Insert Male Pins	Copper Alloy	Insert Only Requires Shell	A	Gold	-25 °C	85 °C	UL94 V-0	8	Solder		Through Hole Right Angle	Shielded
TE Connectivity Raychem Cable Protection 494083-E	IP65 IP67	Black		M12-4	Female Sockets Insert	Copper Alloy	Board Guide Insert Only Requires Shell	D	Gold	-25 °C	85 °C	UL94 V-0	4	Solder		Through Hole	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	100	$ 5.90
		500	$ 5.19
		1000	$ 4.85
		2500	$ 4.72
Digikey	Cut Tape (CT)	1	$ 11.27
		10	$ 9.98
		25	$ 9.60
		50	$ 9.22
	Digi-Reel®	1	$ 11.27
		10	$ 9.98
		25	$ 9.60
		50	$ 9.22
	Tape & Reel (TR)	100	$ 6.34

Description

General part information

M12 Connector Series

8 Position Circular Connector, Cable-to-Board, Printed Circuit Board, Power, Signal & High Speed Data, Board Mount, A Code, M12 Connector

Documents

Technical documentation and resources

354131-E

Deep-Dive with AI

354131-E

Deep-Dive with AI

Technical Specifications

M12 Connector Series

Pricing

Description

M12 Connector Series

Documents

Application spec. for M8 / M12 Header Vertical Code A, B, D, X

UL_CERT_E84703_20140116_C1

Product spec for M8/ M12 -M17 CIRCULAR CONNECTOR, A, B, D-CODE

ERNI M8M12 Circular Connectors

M12 Connector Series
