MR3010H05B1-RSR
ActiveMechatronics Bearing Group

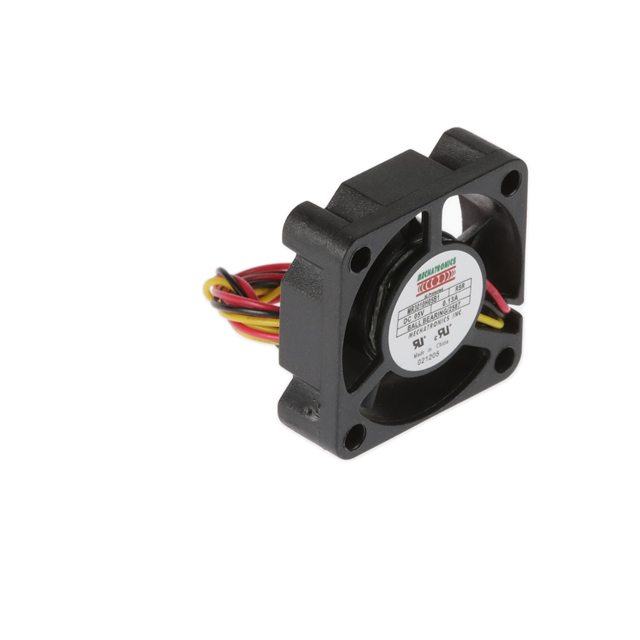

FAN AXIAL 30X10MM BALL 5VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
MR3010H05B1-RSR
ActiveMechatronics Bearing Group
FAN AXIAL 30X10MM BALL 5VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MR3010H05B1-RSR |
|---|---|
| Air Flow | 0.179 mł/min |
| Air Flow | 6.4 CFM |
| Approval Agency | CE, cUL, TUV, UL |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Speed Sensor (Tach) |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 31.6 dB(A) |
| RPM | 10000 RPM |
| Size / Dimension [x] | 30 mm |
| Size / Dimension [z] | 30 mm |
| Static Pressure | 0.26 in H2O |
| Static Pressure | 64.8 Pa |
| Termination | 3 Wire Leads |
| Voltage - Rated | 5 V |
| Weight | 0.018 lb |
| Weight | 8.16 g |
| Width [y] | 10 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 15.21 | |
| 10 | $ 14.52 | |||
| 25 | $ 13.65 | |||
| 50 | $ 13.13 | |||
| 100 | $ 12.10 | |||
| 300 | $ 11.32 | |||
| 500 | $ 11.15 | |||
Description
General part information
MR3010 Series
Fan Tubeaxial 5VDC Square - 30mm L x 30mm H Ball 6.4 CFM (0.179m³/min) 3 Wire Leads
