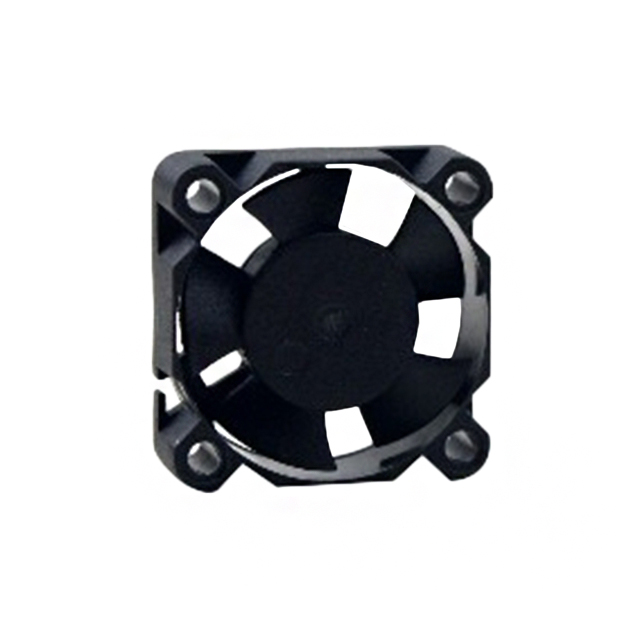

MR3010E12B1-RSR

Active

Mechatronics Bearing Group

FAN AXIAL 30X10MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAC/DC Fans & Blowers Catalog Datasheet +1

MR3010E12B1-RSR

Active

Mechatronics Bearing Group

FAN AXIAL 30X10MM 12VDC WIRE

Deep-Dive with AI

DocumentsAC/DC Fans & Blowers Catalog Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MR3010E12B1-RSR

Air Flow	0.216 m³/min
Air Flow	7.7 CFM
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach)
Material - Blade	Plastic
Material - Frame	Plastic
Noise	34 dB(A)
RPM	11500 RPM
Size / Dimension [x]	30 mm
Size / Dimension [z]	30 mm
Static Pressure	94.6 Pa
Static Pressure	0.38 in H2O
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Weight	0.018 lb
Weight	8.16 g
Width [y]	10 mm

MR3010 Series

Part	Static Pressure	Static Pressure	Termination	Fan Type	Bearing Type	Size / Dimension [x]	Size / Dimension [z]	Air Flow	Air Flow	Weight	Weight	Width [y]	Material - Frame	Features	Approval Agency	Material - Blade	RPM	Voltage - Rated	Noise	Current Rating (Amps)	Air Flow
Mechatronics Bearing Group MR3010E12B1-RSR	94.6 Pa	0.38 in H2O	3 Wire Leads	Tubeaxial	Ball	30 mm	30 mm	0.216 m³/min	7.7 CFM	0.018 lb	8.16 g	10 mm	Plastic	Auto Restart Speed Sensor (Tach)	CE cUL TUV UL	Plastic	11500 RPM	12 VDC	34 dB(A)
Mechatronics Bearing Group MR3010L05D-RSR	27.4 Pa	0.11 in H2O	2 Wire Leads	Tubeaxial	Sleeve	30 mm	30 mm	0.115 m³/min	4.1 CFM	0.018 lb	8.16 g	10 mm	Plastic	Auto Restart	CE cUL TUV UL	Plastic	6000 RPM	5 V	20.5 dB(A)	70 mA
Mechatronics Bearing Group MR3010H12B2-RSR	64.8 Pa	0.26 in H2O	3 Wire Leads	Tubeaxial	Ball	30 mm	30 mm	0.179 mł/min	6.4 CFM	0.018 lb	8.16 g	10 mm	Plastic	Auto Restart Locked Rotor Sensor	CE cUL TUV UL	Plastic	10000 RPM	12 VDC	31.6 dB(A)	0.09 A
Mechatronics Bearing Group MR3010L05B1-RSR	27.4 Pa	0.11 in H2O	3 Wire Leads	Tubeaxial	Ball	30 mm	30 mm	0.115 m³/min	4.1 CFM	0.018 lb	8.16 g	10 mm	Plastic	Auto Restart Speed Sensor (Tach)	CE cUL TUV UL	Plastic	6000 RPM	5 V	20.5 dB(A)	70 mA
Mechatronics Bearing Group MR3010H05B1+6-RSR	64.8 Pa	0.26 in H2O	4 Wire Leads	Tubeaxial	Ball	30 mm	30 mm	0.179 mł/min	6.4 CFM			10 mm	Plastic	Auto Restart PWM Control Speed Sensor (Tach)		Plastic	10000 RPM	5 V	31.6 dB(A)
Mechatronics Bearing Group MR3010H05B2-RSR	64.8 Pa	0.26 in H2O	3 Wire Leads	Tubeaxial	Ball	30 mm	30 mm	0.179 mł/min	6.4 CFM	0.018 lb	8.16 g	10 mm	Plastic	Auto Restart Locked Rotor Sensor	CE cUL TUV UL	Plastic	10000 RPM	5 V	31.6 dB(A)
Mechatronics Bearing Group MR3010L12B1-RSR	27.4 Pa	0.11 in H2O	3 Wire Leads	Tubeaxial	Ball	30 mm	30 mm	0.115 m³/min	4.1 CFM	0.018 lb	8.16 g	10 mm	Plastic	Auto Restart Speed Sensor (Tach)	CE cUL TUV UL	Plastic	6000 RPM	12 VDC	20.5 dB(A)	50 mA
Mechatronics Bearing Group MR3010E12B-RSR	94.6 Pa	0.38 in H2O	2 Wire Leads	Tubeaxial	Ball	30 mm	30 mm	0.216 m³/min	7.7 CFM	0.018 lb	8.16 g	10 mm	Plastic	Auto Restart	CE cUL TUV UL	Plastic	11500 RPM	12 VDC	34 dB(A)
Mechatronics Bearing Group MR3010E12B2-RSR	94.6 Pa	0.38 in H2O	3 Wire Leads	Tubeaxial	Ball	30 mm	30 mm	0.216 m³/min		0.018 lb	8.16 g	10 mm	Plastic	Auto Restart Locked Rotor Sensor	CE cUL TUV UL	Plastic	11500 RPM	12 VDC	34 dB(A)		7.7 CFM
Mechatronics Bearing Group MR3010H05B1-RSR	64.8 Pa	0.26 in H2O	3 Wire Leads	Tubeaxial	Ball	30 mm	30 mm	0.179 mł/min	6.4 CFM	0.018 lb	8.16 g	10 mm	Plastic	Auto Restart Speed Sensor (Tach)	CE cUL TUV UL	Plastic	10000 RPM	5 V	31.6 dB(A)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 15.21
		10	$ 14.52
		25	$ 13.65
		50	$ 13.13
		100	$ 12.10
		300	$ 11.32
		500	$ 11.15

Description

General part information

MR3010 Series

Fan Tubeaxial 12VDC Square - 30mm L x 30mm H Ball 7.7 CFM (0.216m³/min) 3 Wire Leads
