SPC582B-DIS

Active

STMicroelectronics

DISCOVERY BOARD, LINE POWER ARCHITECTURE ROHS COMPLIANT: YES

Find alt

Alpha

SPC582B-DIS

Active

STMicroelectronics

DISCOVERY BOARD, LINE POWER ARCHITECTURE ROHS COMPLIANT: YES

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

SPC582 Series

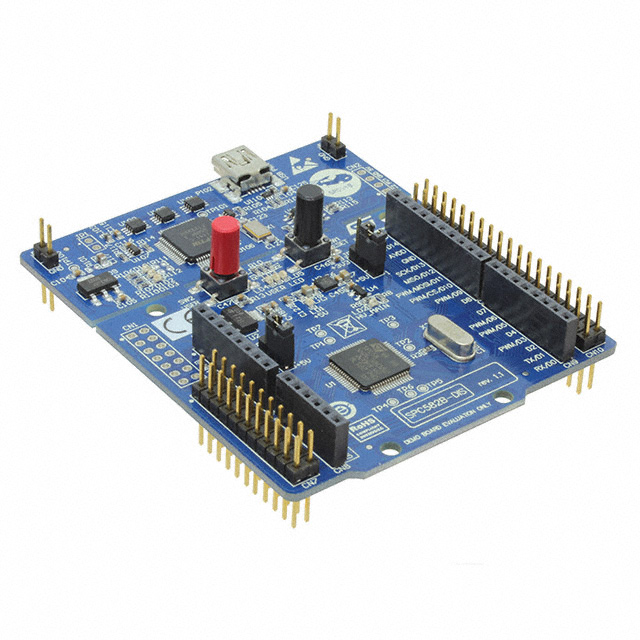

The discovery board SPC582-DIS helps you to discover SPC58B Line Power Architecture®Microcontrollers with full access to CPUs, I/O signals and peripherals at budget price.

Dedicated connectors allow plugging Arduino shields (Arduino-compatible).

Free ready-to-run application firmware examples are available inside SPC5Studio to support quick evaluation and development.

Technical Specifications

Parameters and characteristics for this part

Specification	SPC582B-DIS

Contents	Board
Core Processor	e200
Interconnect System	Arduino R3 Shield
Mounting Type	Fixed
Platform	Discovery
Suggested Programming Environment	SPC5Studio
Type	MCU 32-Bit
Utilized IC / Part	SPC582B

SPC582 Series

32-bit Power Architecture MCU for Automotive General Purpose Applications - Chorus family

Part	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	EEPROM Size (Width)	EEPROM Size (Depth)	Speed	Program Memory Type	Grade	Converter Architecture	A/D Channels	A/D Resolution (bits)	Program Memory Width	Program Memory Size	Program Memory Depth	RAM Size Depth	RAM Size Width	Peripherals	Voltage - Supply (Vcc/Vdd)	Oscillator Type	Core Size (Bit Width)	Connectivity	Package Name	Package Width	Package Length	Package / Case	Number of I/O	Core Processor	Qualification	Core Configuration	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Suggested Programming Environment	Interconnect System	Contents	Utilized IC / Part	Platform	Type
STMicroelectronics SPC582B50E1CG00X	Surface Mount	125 °C	-40 °C	8 bit	64 K	80 MHz	FLASH	Automotive	SAR	27 count	12 bit	8 bit	512 KB	512 K	96 K	8 bit	DMA WDT	3.3 V 5 V	Internal	32 Bit	CANbus I2C LINbus SPI	64-eTQFP	10 mm	10 mm	64-TQFP Exposed Pad	48	e200z2	AEC-Q100	Single-Core
STMicroelectronics SPC582B54E1CD00X	Surface Mount	105 °C	-40 °C	8 bit	64 K	80 MHz	FLASH	Automotive	SAR	27 count	12 bit	8 bit	768 KB	768 K	96 K	8 bit	DMA WDT		Internal	32 Bit	CANbus I2C LINbus SPI	64-eTQFP	10 mm	10 mm	64-TQFP Exposed Pad	32	e200z2	AEC-Q100	Single-Core	3 V	5.5 V
STMicroelectronics SPC582B54E1BD00X	Surface Mount	125 °C	-40 °C	8 bit	64 K	80 MHz	FLASH	Automotive	SAR	27 count	12 bit	8 bit	768 KB	768 K	96 K	8 bit	DMA WDT	3.3 V 5 V	Internal	32 Bit	CANbus I2C LINbus SPI	64-eTQFP	10 mm	10 mm	64-TQFP Exposed Pad	48	e200z2	AEC-Q100	Single-Core
STMicroelectronics SPC582B50E1AD00X	Surface Mount	125 °C	-40 °C	8 bit	64 K	48 MHz	FLASH	Automotive	SAR	27 count	12 bit	8 bit	512 KB	512 K	96 K	8 bit	DMA WDT	3.3 V 5 V	Internal	32 Bit	CANbus I2C LINbus SPI	64-eTQFP	10 mm	10 mm	64-TQFP Exposed Pad	48	e200z2	AEC-Q100	Single-Core
STMicroelectronics SPC582B54E3L000X	Surface Mount	125 °C	-40 °C	8 bit	64 K	64 MHz	FLASH	Automotive	SAR	27 count	12 bit	8 bit	768 KB	768 K	96 K	8 bit	DMA WDT		Internal	32 Bit	CANbus I2C LINbus SPI	100-eTQFP	14 mm	14 mm	100-TQFP Exposed Pad	32	e200z2	AEC-Q100	Single-Core	3 V	5.5 V
STMicroelectronics SPC582B54E1AD00X	Surface Mount	105 °C	-40 °C	8 bit	64 K	48 MHz	FLASH	Automotive	SAR	27 count	12 bit	8 bit	768 KB	768 K	96 K	8 bit	DMA WDT		Internal	32 Bit	CANbus I2C LINbus SPI	64-eTQFP	10 mm	10 mm	64-TQFP Exposed Pad	32	e200z2	AEC-Q100	Single-Core	3 V	5.5 V
STMicroelectronics SPC582B50E3CD00X	Surface Mount	125 °C	-40 °C	8 bit	64 K	80 MHz	FLASH	Automotive	SAR	27 count	12 bit	8 bit	512 KB	512 K	96 K	8 bit	DMA WDT	3.3 V 5 V	Internal	32 Bit	CANbus I2C LINbus SPI	100-eTQFP	14 mm	14 mm	100-TQFP Exposed Pad	80	e200z2	AEC-Q100	Single-Core
STMicroelectronics SPC582B-DIS	Fixed																										e200					SPC5Studio	Arduino R3 Shield	Board	SPC582B	Discovery	MCU 32-Bit
STMicroelectronics SPC582B54E1CG00X	Surface Mount	125 °C	-40 °C	8 bit	64 K	80 MHz	FLASH	Automotive	SAR	27 count	12 bit	8 bit	768 KB	768 K	96 K	8 bit	DMA WDT	3.3 V 5 V	Internal	32 Bit	CANbus I2C LINbus SPI	64-eTQFP	10 mm	10 mm	64-TQFP Exposed Pad	48	e200z2	AEC-Q100	Single-Core
