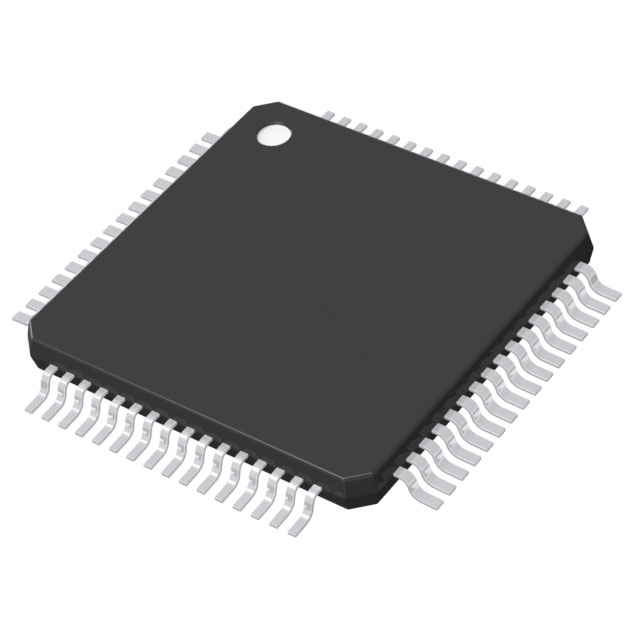

SPC582B54E1CD00X

Obsolete

STMicroelectronics

IC MCU 32BIT 768KB FLASH 64ETQFP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SPC582B54E1CD00X

Obsolete

STMicroelectronics

IC MCU 32BIT 768KB FLASH 64ETQFP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SPC582B54E1CD00X

Connectivity	SPI, LINbus, I2C, CANbus
Core Processor	e200z2
Core Size	32-Bit Single-Core
Data Converters [custom]	12
Data Converters [custom]	27
EEPROM Size	64 K
Grade	Automotive
Mounting Type	Surface Mount
Number of I/O	32
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	64-TQFP Exposed Pad
Peripherals	DMA, WDT
Program Memory Size	768 KB
Program Memory Type	FLASH
Qualification	AEC-Q100
RAM Size	96 K
Speed	80 MHz
Supplier Device Package	64-eTQFP (10x10)
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	3 V

SPC582B50E1 Series

32-bit Power Architecture MCU for Automotive General Purpose Applications - Chorus family

Part	Package / Case	RAM Size	Number of I/O	Grade	Mounting Type	EEPROM Size	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Peripherals	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Core Processor	Core Size	Speed	Program Memory Type	Qualification	Data Converters [custom]	Data Converters [custom]	Oscillator Type	Connectivity	Program Memory Size	Voltage - Supply (Vcc/Vdd)	Contents	Utilized IC / Part	Platform	Type	Suggested Programming Environment	Interconnect System
STMicroelectronics SPC582B54E1CD00X	64-TQFP Exposed Pad	96 K	32	Automotive	Surface Mount	64 K	64-eTQFP (10x10)	105 °C	-40 °C	DMA WDT	5.5 V	3 V	e200z2	32-Bit Single-Core	80 MHz	FLASH	AEC-Q100	12	27	Internal	CANbus I2C LINbus SPI	768 KB
STMicroelectronics SPC582B50E1AD00X	64-TQFP Exposed Pad	96 K	48	Automotive	Surface Mount	64 K	64-eTQFP (10x10)	125 °C	-40 °C	DMA WDT			e200z2	32-Bit Single-Core	48 MHz	FLASH	AEC-Q100	12	27	Internal	CANbus I2C LINbus SPI	512 KB	3.3 V 5 V
STMicroelectronics SPC582B54E3L000X	100-TQFP Exposed Pad	96 K	32	Automotive	Surface Mount	64 K	100-eTQFP (14x14)	125 °C	-40 °C	DMA WDT	5.5 V	3 V	e200z2	32-Bit Single-Core	64 MHz	FLASH	AEC-Q100	12	27	Internal	CANbus I2C LINbus SPI	768 KB
STMicroelectronics SPC582B54E1AD00X	64-TQFP Exposed Pad	96 K	32	Automotive	Surface Mount	64 K	64-eTQFP (10x10)	105 °C	-40 °C	DMA WDT	5.5 V	3 V	e200z2	32-Bit Single-Core	48 MHz	FLASH	AEC-Q100	12	27	Internal	CANbus I2C LINbus SPI	768 KB
STMicroelectronics SPC582B-DIS					Fixed								e200											Board(s)	SPC582B	Discovery	MCU 32-Bit	SPC5Studio	Arduino R3 Shield
STMicroelectronics SPC582B54E1CG00X	64-TQFP Exposed Pad	96 K	48	Automotive	Surface Mount	64 K	64-eTQFP (10x10)	125 °C	-40 °C	DMA WDT			e200z2	32-Bit Single-Core	80 MHz	FLASH	AEC-Q100	12	27	Internal	CANbus I2C LINbus SPI	768 KB	3.3 V 5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SPC582B50E1 Series

The discovery board SPC582-DIS helps you to discover SPC58B Line Power Architecture®Microcontrollers with full access to CPUs, I/O signals and peripherals at budget price.

Dedicated connectors allow plugging Arduino shields (Arduino-compatible).

Free ready-to-run application firmware examples are available inside SPC5Studio to support quick evaluation and development.
