3485-2400R

Active

3M (TC)

80610182224 3485-2400R=37/PLASTICJS/DSUB/RNDCAB/100PAK ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

3M (TC)

80610182224 3485-2400R=37/PLASTICJS/DSUB/RNDCAB/100PAK ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	3485-2400R

Accessory Type	Two Piece Backshell
Cable Exit	180 °
Cable Type	Round
Color	Gray
Compatible D-Sub Size	37pos, HD62pos
Compatible Shell Size	C
Hardware	Assembly Hardware
Material	Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions	37
Primary Material	Plastic
Shielding	Unshielded

Part	Color	Cable Exit	Number of Positions	Cable Type	Primary Material	Compatible D-Sub Size	Shielding	Hardware	Accessory Type	Material	Compatible Shell Size
3M (TC) 3485-2200R	Gray	180 °	15	Round	Plastic	15pos HD26pos	Unshielded	Assembly Hardware	Two Piece Backshell	Polybutylene Terephthalate (PBT) Glass Filled	A
3M (TC) 3485-1700F	Gray	180 °	24	Flat	Plastic		Unshielded	Assembly Hardware	Two Piece Backshell	Polybutylene Terephthalate (PBT) Glass Filled
3M (TC) 3485-1700R	Gray	180 °	24	Round	Plastic		Unshielded	Assembly Hardware	Two Piece Backshell	Polybutylene Terephthalate (PBT) Glass Filled
3M (TC) 3485-2300F	Gray	180 °		Flat	Plastic	25pos HD44pos	Unshielded	Assembly Hardware	Two Piece Backshell	Polybutylene Terephthalate (PBT) Glass Filled	B
3M (TC) 3485-2500F	Gray	180 °	50	Flat	Plastic	50pos HD78pos	Unshielded	Assembly Hardware	Two Piece Backshell	Polybutylene Terephthalate (PBT) Glass Filled	D
3M (TC) 3485-2800R	Gray	180 °	36	Round	Plastic		Unshielded	Assembly Hardware	Two Piece Backshell	Polybutylene Terephthalate (PBT) Glass Filled
3M (TC) 3485-2400R	Gray	180 °	37	Round	Plastic	37pos HD62pos	Unshielded	Assembly Hardware	Two Piece Backshell	Polybutylene Terephthalate (PBT) Glass Filled	C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 10.67
Newark	Each	500	$ 12.59

General part information

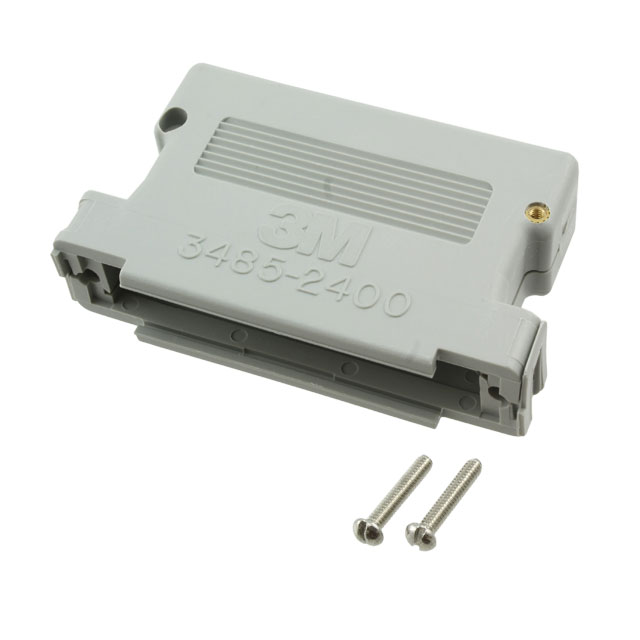

37 Position Two Piece Backshell Connector Gray 180° Unshielded
