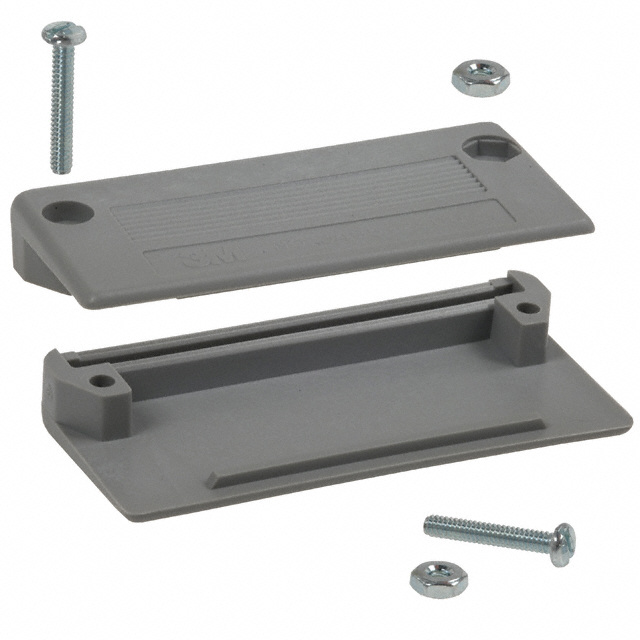

3485-2500F

Obsolete

3M (TC)

CONN BACKSHELL 50POS 180DEG GRAY

Search across all available documentation for this part.

Obsolete

3M (TC)

CONN BACKSHELL 50POS 180DEG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	3485-2500F

Accessory Type	Two Piece Backshell
Cable Exit	180 °
Cable Type	Flat
Color	Gray
Compatible D-Sub Size	50pos, HD78pos
Compatible Shell Size	D
Hardware	Assembly Hardware
Material	Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions	50
Primary Material	Plastic
Shielding	Unshielded

Part	Color	Cable Exit	Number of Positions	Cable Type	Primary Material	Compatible D-Sub Size	Shielding	Hardware	Accessory Type	Material	Compatible Shell Size
3M (TC) 3485-2200R	Gray	180 °	15	Round	Plastic	15pos HD26pos	Unshielded	Assembly Hardware	Two Piece Backshell	Polybutylene Terephthalate (PBT) Glass Filled	A
3M (TC) 3485-1700F	Gray	180 °	24	Flat	Plastic		Unshielded	Assembly Hardware	Two Piece Backshell	Polybutylene Terephthalate (PBT) Glass Filled
3M (TC) 3485-1700R	Gray	180 °	24	Round	Plastic		Unshielded	Assembly Hardware	Two Piece Backshell	Polybutylene Terephthalate (PBT) Glass Filled
3M (TC) 3485-2300F	Gray	180 °		Flat	Plastic	25pos HD44pos	Unshielded	Assembly Hardware	Two Piece Backshell	Polybutylene Terephthalate (PBT) Glass Filled	B
3M (TC) 3485-2500F	Gray	180 °	50	Flat	Plastic	50pos HD78pos	Unshielded	Assembly Hardware	Two Piece Backshell	Polybutylene Terephthalate (PBT) Glass Filled	D
3M (TC) 3485-2800R	Gray	180 °	36	Round	Plastic		Unshielded	Assembly Hardware	Two Piece Backshell	Polybutylene Terephthalate (PBT) Glass Filled
3M (TC) 3485-2400R	Gray	180 °	37	Round	Plastic	37pos HD62pos	Unshielded	Assembly Hardware	Two Piece Backshell	Polybutylene Terephthalate (PBT) Glass Filled	C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position Two Piece Backshell Connector Gray 180° Unshielded
