CONN D-SUB RCPT 17POS R/A SLDR

630-17W2240-5T3

Active

EDAC Inc.

CONN D-SUB RCPT 17POS R/A SLDR

Description Specifications Series Pricing CAD Documents

Description

General part information

630-17W Series

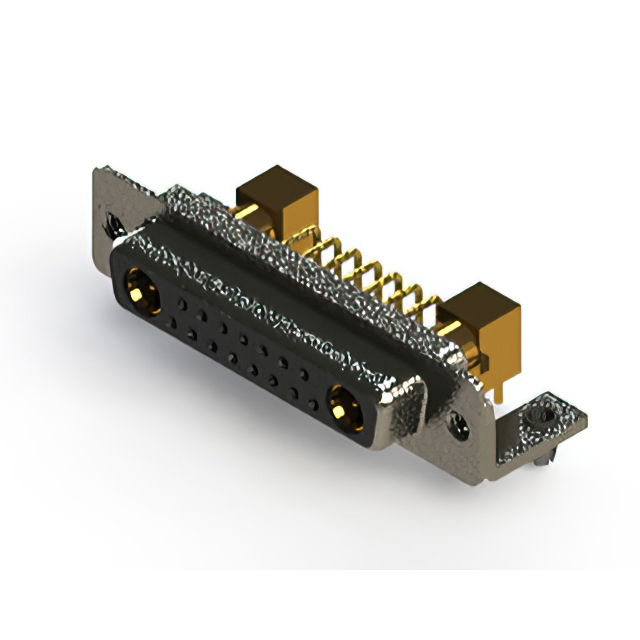

17 (15 + 2 Coax) Position D-Sub, Combo Receptacle, Female Sockets Connector

Technical Specifications

Parameters and characteristics for this part

Specification	630-17W2240-5T3

Backset Spacing	0.37 in
Color	Black
Connector Layout	DB, B
Connector Style	Combo, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Copper Alloy
Contact Type	Signal, Coax
Dielectric Material	Polyester Thermoplastic
Features	Mounting Brackets, Board Lock
Finish	Tin Plated
Flange Feature	Shell (4-40), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions (Special)	2
Number of Positions (Standard)	15
Number of Positions (Total)	17
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Part Code	17W2
Position Types	Coax
Shell Material	Steel
Shell Size	3
Termination	Solder
Voltage Rating	125 V

630-17W Series

...

Part	Flange Feature	Contact Finish	Termination	Features	Number of Rows	Number of Positions (Power)	Number of Positions (Normal)	Number of Positions (Total)	Mounting Type	Connector Style	Backset Spacing	Shell Size	Connector Layout	Part Code	Contact Type	Current Rating Options	Finish	Shell Material	Connector Type	Material Flammability Rating	Contact Finish Thickness	Voltage Rating	Dielectric Material	Operating Temperature (Max)	Operating Temperature (Min)	Color	Contact Material	Number of Positions (Special)	Position Types	Number of Positions (Standard)	Contact Finish Thickness (string set options)	Contact Finish Thickness
EDAC Inc. 630-17W5640-2TD	Mating Side (M3)	Gold	Solder	Board Lock Mounting Brackets	2	2	15	17	Right Angle Through Hole	Combo D-Sub	0.37 in	3	B DB	17W2	Power Signal	20A 5A	Tin Plated	Steel	Female Sockets Receptacle	UL94 V-0	30 µin	125 V	Polyester Thermoplastic	125 °C	-55 °C	Black	Copper Alloy
EDAC Inc. 630-17W5650-4T4	Housing Shell (4-40)	Gold	Solder	Mounting Brackets	2	2	15	17	Right Angle Through Hole	Combo D-Sub	0.37 in	3	B DB	17W2	Power Signal	40A 5A	Tin Plated	Steel	Female Sockets Receptacle	UL94 V-0	30 µin	125 V	Polyester Thermoplastic	125 °C	-55 °C	Black	Copper Alloy
EDAC Inc. 630-17W5640-3N2	Housing Shell (4-40)	Gold	Solder		2	2	15	17	Right Angle Through Hole	Combo D-Sub	0.37 in	3	B DB	17W2	Power Signal	30A 5A	Nickel Plated	Steel	Female Sockets Receptacle	UL94 V-0	30 µin	125 V	Polyester Thermoplastic	125 °C	-55 °C	Black	Copper Alloy
EDAC Inc. 630-17W2240-5T3	Housing Shell (4-40)	Gold	Solder	Board Lock Mounting Brackets	2			17	Right Angle Through Hole	Combo D-Sub	0.37 in	3	B DB	17W2	Coax Signal		Tin Plated	Steel	Female Sockets Receptacle	UL94 V-0	0	125 V	Polyester Thermoplastic	125 °C	-55 °C	Black	Copper Alloy	2	Coax	15	Flash	Flash
EDAC Inc. 630-17W2240-7N2	Housing Shell (4-40)	Gold	Solder		2			17	Right Angle Through Hole	Combo D-Sub	0.37 in	3	B DB	17W2	Coax Signal		Nickel Plated	Steel	Female Sockets Receptacle	UL94 V-0	0	125 V	Polyester Thermoplastic	125 °C	-55 °C	Black	Copper Alloy	2	Coax	15	Flash	Flash
EDAC Inc. 630-17W5640-3TD	Mating Side (M3)	Gold	Solder	Board Lock Mounting Brackets	2	2	15	17	Right Angle Through Hole	Combo D-Sub	0.37 in	3	B DB	17W2	Power Signal	30A 5A	Tin Plated	Steel	Female Sockets Receptacle	UL94 V-0	30 µin	125 V	Polyester Thermoplastic	125 °C	-55 °C	Black	Copper Alloy
EDAC Inc. 630-17W5240-7TC	Housing Shell (M3)	Gold	Solder	Mounting Brackets	2			17	Right Angle Through Hole	Combo D-Sub	0.37 in	3	B DB	17W2	Coax Signal		Tin Plated	Steel	Female Sockets Receptacle	UL94 V-0	0	125 V	Polyester Thermoplastic	125 °C	-55 °C	Black	Copper Alloy	2	Coax	15	Flash	Flash
EDAC Inc. 630-17W5240-4NC	Housing Shell (M3)	Gold	Solder	Mounting Brackets	2	2	15	17	Right Angle Through Hole	Combo D-Sub	0.37 in	3	B DB	17W2	Power Signal	40A 5A	Nickel Plated	Steel	Female Sockets Receptacle	UL94 V-0	0	125 V	Polyester Thermoplastic	125 °C	-55 °C	Black	Copper Alloy				Flash	Flash
EDAC Inc. 630-17W2640-5T2	Housing Shell (4-40)	Gold	Solder		2			17	Right Angle Through Hole	Combo D-Sub	0.37 in	3	B DB	17W2	Coax Signal		Tin Plated	Steel	Female Sockets Receptacle	UL94 V-0	30 µin	125 V	Polyester Thermoplastic	125 °C	-55 °C	Black	Copper Alloy	2	Coax	15
EDAC Inc. 630-17W5640-2NE	Mating Side (M3)	Gold	Solder	Mounting Brackets	2	2	15	17	Right Angle Through Hole	Combo D-Sub	0.37 in	3	B DB	17W2	Power Signal	20A 5A	Nickel Plated	Steel	Female Sockets Receptacle	UL94 V-0	30 µin	125 V	Polyester Thermoplastic	125 °C	-55 °C	Black	Copper Alloy
