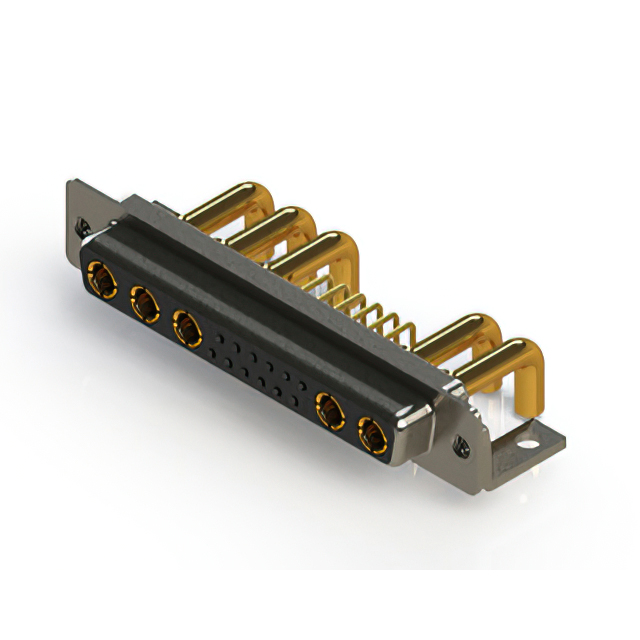

630-17W5650-4T4

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 630C SERIES, DC-17W5, RECEPTACLE, 17 CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

630-17W5650-4T4

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 630C SERIES, DC-17W5, RECEPTACLE, 17 CONTACTS

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630-17W5650-4T4

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	40 A, 5 A
Dielectric Material	Polyester Thermoplastic
Features	Mounting Brackets
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions [custom]	15
Number of Positions [custom]	2
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	17W2, 3 (DB, B)
Termination	Solder
Voltage Rating	125 VDC

630-17W Series

...

Part	Dielectric Material	Backset Spacing	Backset Spacing	Mounting Type	Number of Positions [custom]	Number of Positions [custom]	Contact Finish	Connector Style	Flange Feature	Contact Material	Number of Rows	Connector Type	Color	Contact Type	Shell Size, Connector Layout	Contact Finish Thickness	Contact Finish Thickness	Features	Termination	Material Flammability Rating	Voltage Rating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material, Finish	Number of Positions [custom]	Number of Positions [custom]	Contact Finish Thickness
EDAC Inc. 630-17W5640-2TD	Polyester Thermoplastic	9.4 mm	0.37 in	Through Hole Right Angle	15	2	Gold	Combo D-Sub	M3	Copper Alloy	2	Receptacle Female Sockets	Black	Signal and Power	17W2 3 (DB B)	0.76 Ám	30 Áin	Board Lock Mounting Brackets	Solder	UL94 V-0	125 VDC	5 A 20 A	-55 °C	125 °C
EDAC Inc. 630-17W5650-4T4	Polyester Thermoplastic	9.4 mm	0.37 in	Through Hole Right Angle	15	2	Gold	Combo D-Sub	Housing/Shell (4-40)	Copper Alloy	2	Receptacle Female Sockets	Black	Signal and Power	17W2 3 (DB B)	0.76 Ám	30 Áin	Mounting Brackets	Solder	UL94 V-0	125 VDC	5 A 40 A	-55 °C	125 °C
EDAC Inc. 630-17W5640-3N2	Polyester Thermoplastic	9.4 mm	0.37 in	Through Hole Right Angle	15	2	Gold	Combo D-Sub	Housing/Shell (4-40)	Copper Alloy	2	Receptacle Female Sockets	Black	Signal and Power	17W2 3 (DB B)	0.76 Ám	30 Áin		Solder	UL94 V-0	125 VDC	5 A 30 A	-55 °C	125 °C	Nickel Plated Steel
EDAC Inc. 630-17W2240-5T3	Polyester Thermoplastic	9.4 mm	0.37 in	Through Hole Right Angle	15		Gold	Combo D-Sub	Housing/Shell (4-40)	Copper Alloy	2	Receptacle Female Sockets	Black	Coax Signal	17W2 3 (DB B)			Board Lock Mounting Brackets	Solder	UL94 V-0	125 VDC		-55 °C	125 °C		2	17	Flash
EDAC Inc. 630-17W2240-7N2	Polyester Thermoplastic	9.4 mm	0.37 in	Through Hole Right Angle	15		Gold	Combo D-Sub	Housing/Shell (4-40)	Copper Alloy	2	Receptacle Female Sockets	Black	Coax Signal	17W2 3 (DB B)				Solder	UL94 V-0	125 VDC		-55 °C	125 °C	Nickel Plated Steel	2	17	Flash
EDAC Inc. 630-17W5640-3TD	Polyester Thermoplastic	9.4 mm	0.37 in	Through Hole Right Angle	15	2	Gold	Combo D-Sub	M3	Copper Alloy	2	Receptacle Female Sockets	Black	Signal and Power	17W2 3 (DB B)	0.76 Ám	30 Áin	Board Lock Mounting Brackets	Solder	UL94 V-0	125 VDC	5 A 30 A	-55 °C	125 °C
EDAC Inc. 630-17W5240-7TC	Polyester Thermoplastic	9.4 mm	0.37 in	Through Hole Right Angle	15		Gold	Combo D-Sub	Housing/Shell (M3)	Copper Alloy	2	Receptacle Female Sockets	Black	Coax Signal	17W2 3 (DB B)			Mounting Brackets	Solder	UL94 V-0	125 VDC		-55 °C	125 °C		2	17	Flash
EDAC Inc. 630-17W5240-7T6	Polyester Thermoplastic	9.4 mm	0.37 in	Through Hole Right Angle	15		Gold	Combo D-Sub	4-40	Copper Alloy	2	Receptacle Female Sockets	Black	Coax Signal	17W2 3 (DB B)				Solder	UL94 V-0	125 VDC		-55 °C	125 °C		2	17	Flash
EDAC Inc. 630-17W2240-4NC	Polyester Thermoplastic	9.4 mm	0.37 in	Through Hole Right Angle	15	2	Gold	Combo D-Sub	Housing/Shell (M3)	Copper Alloy	2	Receptacle Female Sockets	Black	Signal and Power	17W2 3 (DB B)			Mounting Brackets	Solder	UL94 V-0	125 VDC	5 A 40 A	-55 °C	125 °C	Nickel Plated Steel			Flash
EDAC Inc. 630-17W5640-4NE	Polyester Thermoplastic	9.4 mm	0.37 in	Through Hole Right Angle	15	2	Gold	Combo D-Sub	M3	Copper Alloy	2	Receptacle Female Sockets	Black	Signal and Power	17W2 3 (DB B)	0.76 Ám	30 Áin	Mounting Brackets	Solder	UL94 V-0	125 VDC	5 A 40 A	-55 °C	125 °C	Nickel Plated Steel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2000	$ 24.89
Newark	Each	1	$ 34.49
		1	$ 34.49
		5000	$ 30.49
		5000	$ 30.49

Description

General part information

630-17W Series

17 (15 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
