3210-10-001-12-00

Active

CnC Tech, LLC

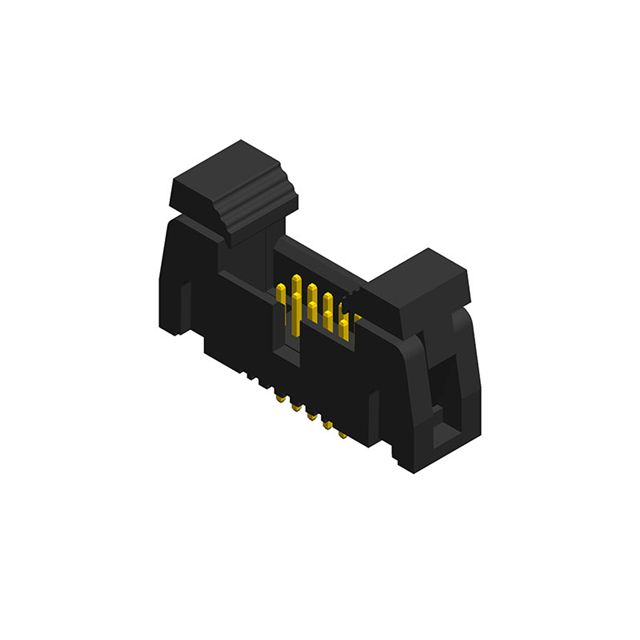

CONN HEADER VERT 10POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

Documents3210-xx-001-12-00 Drawing PRIOR TO 20/06 Datasheet +1

3210-10-001-12-00

Active

CnC Tech, LLC

CONN HEADER VERT 10POS 1.27MM

Deep-Dive with AI

Documents3210-xx-001-12-00 Drawing PRIOR TO 20/06 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3210-10-001-12-00

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Post	0.094 in
Contact Length - Post	2.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Lock/Eject Hooks, Short
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

3210-10 Series

Part	Pitch - Mating	Pitch - Mating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Termination	Contact Shape	Shrouding	Style	Features	Number of Positions Loaded	Contact Type	Mounting Type	Contact Finish Thickness - Mating	Fastening Type	Material Flammability Rating	Connector Type	Number of Rows	Contact Finish - Mating	Contact Material	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
CnC Tech, LLC 3210-10-003-11-00	0.05 in	1.27 mm	10	-40 °C	105 ░C	Polybutylene Terephthalate (PBT)	0.05 in	1.27 mm	Solder	Square	Shrouded - 2 Wall	Board to Cable/Wire	Keying Slot	All	Male Pin	Surface Mount	Flash	Push-Pull	UL94 V-0	Header	2	Gold	Brass
CnC Tech, LLC 3210-10-003-12-00	0.05 in	1.27 mm	10	-40 °C	105 ░C	Polybutylene Terephthalate (PBT)	0.05 in	1.27 mm	Solder	Square	Shrouded - 4 Wall	Board to Cable/Wire	Keying Slot	All	Male Pin	Surface Mount	Flash	Latch Lock/Eject Hooks Short	UL94 V-0	Header	2	Gold	Brass
CnC Tech, LLC 3210-10-001-11-00	0.05 in	1.27 mm	10	-40 °C	105 ░C	Polybutylene Terephthalate (PBT)	0.05 in	1.27 mm	Solder	Square	Shrouded - 2 Wall	Board to Cable/Wire	Keying Slot	All	Male Pin	Through Hole	Flash	Push-Pull	UL94 V-0	Header	2	Gold	Brass	0.094 in	2.4 mm
CnC Tech, LLC 3210-10-001-12-00	0.05 in	1.27 mm	10	-40 °C	105 ░C	Polybutylene Terephthalate (PBT)	0.05 in	1.27 mm	Solder	Square	Shrouded - 4 Wall	Board to Cable/Wire		All	Male Pin	Through Hole	Flash	Latch Lock/Eject Hooks Short	UL94 V-0	Header	2	Gold	Brass	0.094 in	2.4 mm
CnC Tech, LLC 3210-10-002-12-99	0.05 in	1.27 mm	10	-40 °C	105 ░C	Polybutylene Terephthalate (PBT)	0.05 in	1.27 mm	Solder	Square	Shrouded - 4 Wall	Board to Cable/Wire		All	Male Pin	Through Hole Right Angle		Latch Lock/Eject Hooks Short	UL94 V-0	Header	2		Brass	0.094 in	2.4 mm	5.6 mm	0.22 in	2.03 µm	80 µin
CnC Tech, LLC 3210-10-002-12-00	0.05 in	1.27 mm	10	-40 °C	105 ░C	Polyamide (PA6T) Nylon 6T Polyamide (PA9T) Nylon 9T	0.05 in	1.27 mm	Solder	Square	Shrouded - 4 Wall	Board to Cable/Wire		All	Male Pin	Through Hole Right Angle	Flash	Latch Lock/Eject Hooks Short	UL94 V-0	Header	2	Gold	Brass	0.094 in	2.4 mm	5.6 mm	0.22 in
CnC Tech, LLC 3210-10-002-11-00	0.05 in	1.27 mm	10	-40 °C	105 ░C	Polybutylene Terephthalate (PBT)	0.05 in	1.27 mm	Solder	Square	Shrouded - 2 Wall	Board to Cable/Wire		All	Male Pin	Through Hole Right Angle	Flash	Push-Pull	UL94 V-0	Header	2	Gold	Brass	0.094 in	2.4 mm	5.6 mm	0.22 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.03
		10	$ 0.87
		80	$ 0.78
		440	$ 0.64
		2340	$ 0.53
		7020	$ 0.49
		11700	$ 0.47

Description

General part information

3210-10 Series

Connector Header Through Hole 10 position 0.050" (1.27mm)
