3210-10-003-12-00

Active

CnC Tech, LLC

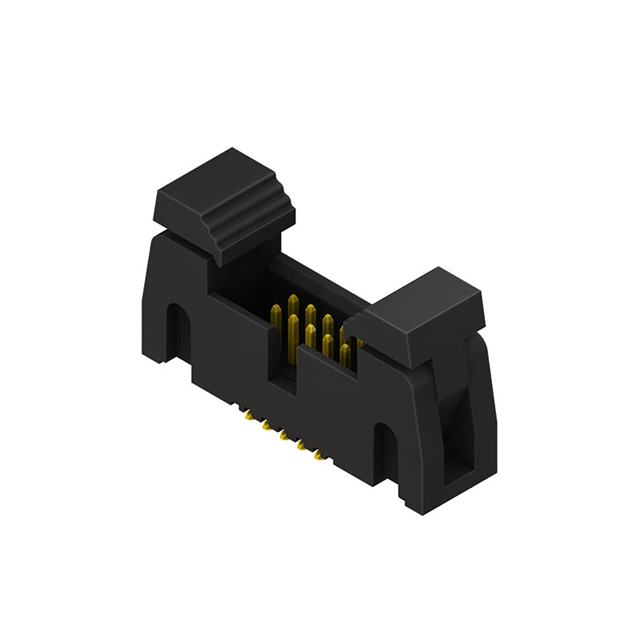

2 1.27MM -40℃~+105℃ BRASS VERTICAL WELDING SMD WIRE TO BOARD CONNECTOR ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIDC Header Mating Guide 3210-XX-003-12-00 Datasheet PRIOR to 20/06 +2

3210-10-003-12-00

Active

CnC Tech, LLC

2 1.27MM -40℃~+105℃ BRASS VERTICAL WELDING SMD WIRE TO BOARD CONNECTOR ROHS

Deep-Dive with AI

DocumentsIDC Header Mating Guide 3210-XX-003-12-00 Datasheet PRIOR to 20/06 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3210-10-003-12-00

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Lock/Eject Hooks, Short
Features	Keying Slot
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

3210-10 Series

Part	Pitch - Mating	Pitch - Mating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Termination	Contact Shape	Shrouding	Style	Features	Number of Positions Loaded	Contact Type	Mounting Type	Contact Finish Thickness - Mating	Fastening Type	Material Flammability Rating	Connector Type	Number of Rows	Contact Finish - Mating	Contact Material	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
CnC Tech, LLC 3210-10-003-11-00	0.05 in	1.27 mm	10	-40 °C	105 ░C	Polybutylene Terephthalate (PBT)	0.05 in	1.27 mm	Solder	Square	Shrouded - 2 Wall	Board to Cable/Wire	Keying Slot	All	Male Pin	Surface Mount	Flash	Push-Pull	UL94 V-0	Header	2	Gold	Brass
CnC Tech, LLC 3210-10-003-12-00	0.05 in	1.27 mm	10	-40 °C	105 ░C	Polybutylene Terephthalate (PBT)	0.05 in	1.27 mm	Solder	Square	Shrouded - 4 Wall	Board to Cable/Wire	Keying Slot	All	Male Pin	Surface Mount	Flash	Latch Lock/Eject Hooks Short	UL94 V-0	Header	2	Gold	Brass
CnC Tech, LLC 3210-10-001-11-00	0.05 in	1.27 mm	10	-40 °C	105 ░C	Polybutylene Terephthalate (PBT)	0.05 in	1.27 mm	Solder	Square	Shrouded - 2 Wall	Board to Cable/Wire	Keying Slot	All	Male Pin	Through Hole	Flash	Push-Pull	UL94 V-0	Header	2	Gold	Brass	0.094 in	2.4 mm
CnC Tech, LLC 3210-10-001-12-00	0.05 in	1.27 mm	10	-40 °C	105 ░C	Polybutylene Terephthalate (PBT)	0.05 in	1.27 mm	Solder	Square	Shrouded - 4 Wall	Board to Cable/Wire		All	Male Pin	Through Hole	Flash	Latch Lock/Eject Hooks Short	UL94 V-0	Header	2	Gold	Brass	0.094 in	2.4 mm
CnC Tech, LLC 3210-10-002-12-99	0.05 in	1.27 mm	10	-40 °C	105 ░C	Polybutylene Terephthalate (PBT)	0.05 in	1.27 mm	Solder	Square	Shrouded - 4 Wall	Board to Cable/Wire		All	Male Pin	Through Hole Right Angle		Latch Lock/Eject Hooks Short	UL94 V-0	Header	2		Brass	0.094 in	2.4 mm	5.6 mm	0.22 in	2.03 µm	80 µin
CnC Tech, LLC 3210-10-002-12-00	0.05 in	1.27 mm	10	-40 °C	105 ░C	Polyamide (PA6T) Nylon 6T Polyamide (PA9T) Nylon 9T	0.05 in	1.27 mm	Solder	Square	Shrouded - 4 Wall	Board to Cable/Wire		All	Male Pin	Through Hole Right Angle	Flash	Latch Lock/Eject Hooks Short	UL94 V-0	Header	2	Gold	Brass	0.094 in	2.4 mm	5.6 mm	0.22 in
CnC Tech, LLC 3210-10-002-11-00	0.05 in	1.27 mm	10	-40 °C	105 ░C	Polybutylene Terephthalate (PBT)	0.05 in	1.27 mm	Solder	Square	Shrouded - 2 Wall	Board to Cable/Wire		All	Male Pin	Through Hole Right Angle	Flash	Push-Pull	UL94 V-0	Header	2	Gold	Brass	0.094 in	2.4 mm	5.6 mm	0.22 in
