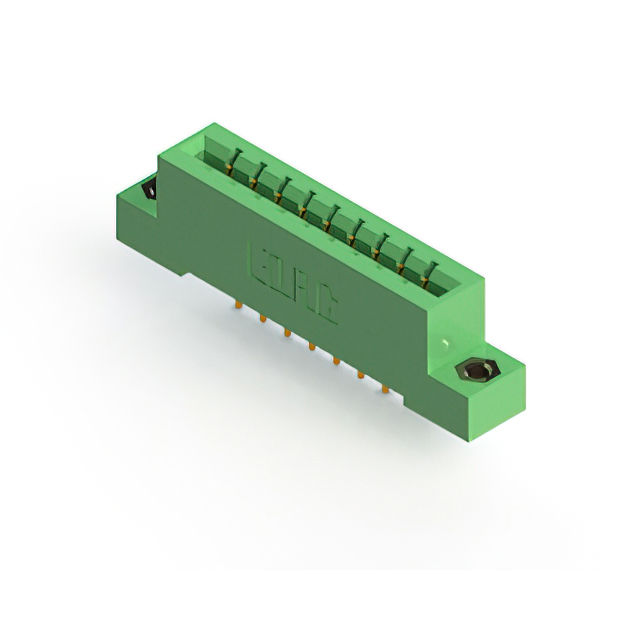

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 9 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN Enhanced Product Overview EN +1

333-009-540-107

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 9 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDrawing EN Enhanced Product Overview EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	333-009-540-107

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	9
Number of Positions/Bay/Row [custom]	9
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

333-009 Series

Part	Pitch [x]	Pitch [x]	Number of Positions	Material - Insulation	Number of Positions/Bay/Row [custom]	Gender	Termination	Contact Material	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Rows	Termination Rows	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Card Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Color	Contact Type	Read Out	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 333-009-558-107	0.156 in	3.96 mm	9	Polyester Thermoplastic	9	Female	Solder	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	Through Hole Right Angle	-40 °C	105 ░C	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Single Edge	Gold	10 Áin	0.25 Ám	Green	Cantilever	Single
EDAC Inc. 333-009-521-607	0.156 in	3.96 mm	9	Polyester Thermoplastic	9	Female	Solder	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	Through Hole	-40 °C	105 ░C	M3 Threaded Insert Top Mount Opening	Non Specified - Single Edge	Gold	10 Áin	0.25 Ám	Green	Cantilever	Single
EDAC Inc. 333-009-523-104	0.156 in	3.96 mm	9	Polyester Thermoplastic	9	Female	Solder	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	Through Hole	-40 °C	105 ░C	Flush Mount Top Opening Unthreaded	Non Specified - Single Edge	Gold	10 Áin	0.25 Ám	Green	Cantilever	Single	3.96 mm	0.156 in
EDAC Inc. 333-009-559-607	0.156 in	3.96 mm	9	Polyester Thermoplastic	9	Female	Wire Wrap	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	Through Hole Right Angle	-40 °C	105 ░C	M3 Threaded Insert Top Mount Opening	Non Specified - Single Edge	Gold	10 Áin	0.25 Ám	Green	Cantilever	Single
EDAC Inc. 333-009-542-612	0.156 in	3.96 mm	9	Polyester Thermoplastic	9	Female	Wire Wrap	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	Through Hole	-40 °C	105 ░C	Side Mount Opening Unthreaded	Non Specified - Single Edge	Gold	10 Áin	0.25 Ám	Green	Cantilever	Single			3.25 mm	0.128 in
EDAC Inc. 333-009-540-107	0.156 in	3.96 mm	9	Polyester Thermoplastic	9	Female	Wire Wrap	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	Through Hole	-40 °C	105 ░C	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Single Edge	Gold	10 Áin	0.25 Ám	Green	Cantilever	Single
EDAC Inc. 333-009-541-108	0.156 in	3.96 mm	9	Polyester Thermoplastic	9	Female	Wire Wrap	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	Through Hole	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Single Edge	Gold	10 Áin	0.25 Ám	Green	Cantilever	Single
EDAC Inc. 333-009-542-607	0.156 in	3.96 mm	9	Polyester Thermoplastic	9	Female	Wire Wrap	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	Through Hole	-40 °C	105 ░C	M3 Threaded Insert Top Mount Opening	Non Specified - Single Edge	Gold	10 Áin	0.25 Ám	Green	Cantilever	Single
EDAC Inc. 333-009-521-612	0.156 in	3.96 mm	9	Polyester Thermoplastic	9	Female	Solder	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	Through Hole	-40 °C	105 ░C	Side Mount Opening Unthreaded	Non Specified - Single Edge	Gold	10 Áin	0.25 Ám	Green	Cantilever	Single			3.25 mm	0.128 in
EDAC Inc. 333-009-542-603	0.156 in	3.96 mm	9	Polyester Thermoplastic	9	Female	Wire Wrap	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	Through Hole	-40 °C	105 ░C	Floating Bobbin Top Mount Opening	Non Specified - Single Edge	Gold	10 Áin	0.25 Ám	Green	Cantilever	Single	2.95 mm	0.116 in
