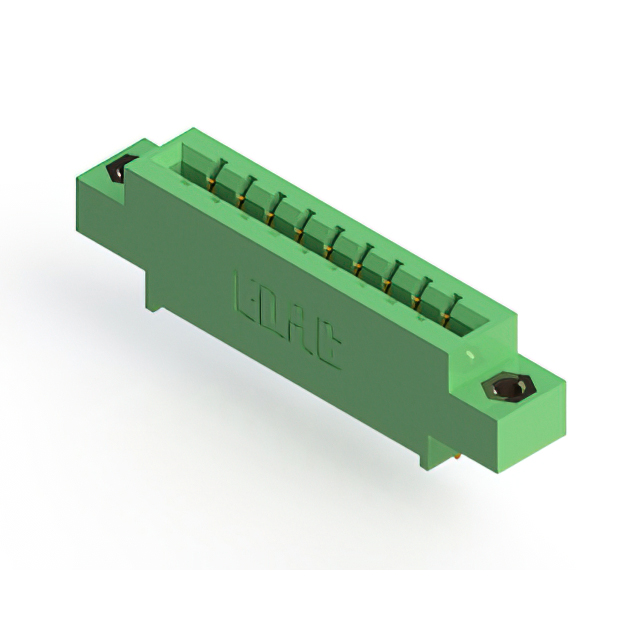

333-009-521-607
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 9 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, SOLDER TERMINAL, M3, GREEN INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
333-009-521-607
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 9 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, SOLDER TERMINAL, M3, GREEN INSULATOR,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 333-009-521-607 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | M3, Threaded Insert, Top Mount Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 9 |
| Number of Positions/Bay/Row [custom] | 9 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
333-009 Series
| Part | Pitch [x] | Pitch [x] | Number of Positions | Material - Insulation | Number of Positions/Bay/Row [custom] | Gender | Termination | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Termination Rows | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Card Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Color | Contact Type | Read Out | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.156 in | 3.96 mm | 9 | Polyester Thermoplastic | 9 | Female | Solder | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Through Hole Right Angle | -40 °C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Single Edge | Gold | 10 Áin | 0.25 Ám | Green | Cantilever | Single | ||||
EDAC Inc. | 0.156 in | 3.96 mm | 9 | Polyester Thermoplastic | 9 | Female | Solder | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Through Hole | -40 °C | 105 ░C | M3 Threaded Insert Top Mount Opening | Non Specified - Single Edge | Gold | 10 Áin | 0.25 Ám | Green | Cantilever | Single | ||||
EDAC Inc. | 0.156 in | 3.96 mm | 9 | Polyester Thermoplastic | 9 | Female | Solder | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Through Hole | -40 °C | 105 ░C | Flush Mount Top Opening Unthreaded | Non Specified - Single Edge | Gold | 10 Áin | 0.25 Ám | Green | Cantilever | Single | 3.96 mm | 0.156 in | ||
EDAC Inc. | 0.156 in | 3.96 mm | 9 | Polyester Thermoplastic | 9 | Female | Wire Wrap | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Through Hole Right Angle | -40 °C | 105 ░C | M3 Threaded Insert Top Mount Opening | Non Specified - Single Edge | Gold | 10 Áin | 0.25 Ám | Green | Cantilever | Single | ||||
EDAC Inc. | 0.156 in | 3.96 mm | 9 | Polyester Thermoplastic | 9 | Female | Wire Wrap | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Through Hole | -40 °C | 105 ░C | Side Mount Opening Unthreaded | Non Specified - Single Edge | Gold | 10 Áin | 0.25 Ám | Green | Cantilever | Single | 3.25 mm | 0.128 in | ||
EDAC Inc. | 0.156 in | 3.96 mm | 9 | Polyester Thermoplastic | 9 | Female | Wire Wrap | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Through Hole | -40 °C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Single Edge | Gold | 10 Áin | 0.25 Ám | Green | Cantilever | Single | ||||
EDAC Inc. | 0.156 in | 3.96 mm | 9 | Polyester Thermoplastic | 9 | Female | Wire Wrap | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Through Hole | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | Gold | 10 Áin | 0.25 Ám | Green | Cantilever | Single | ||||
EDAC Inc. | 0.156 in | 3.96 mm | 9 | Polyester Thermoplastic | 9 | Female | Wire Wrap | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Through Hole | -40 °C | 105 ░C | M3 Threaded Insert Top Mount Opening | Non Specified - Single Edge | Gold | 10 Áin | 0.25 Ám | Green | Cantilever | Single | ||||
EDAC Inc. | 0.156 in | 3.96 mm | 9 | Polyester Thermoplastic | 9 | Female | Solder | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Through Hole | -40 °C | 105 ░C | Side Mount Opening Unthreaded | Non Specified - Single Edge | Gold | 10 Áin | 0.25 Ám | Green | Cantilever | Single | 3.25 mm | 0.128 in | ||
EDAC Inc. | 0.156 in | 3.96 mm | 9 | Polyester Thermoplastic | 9 | Female | Wire Wrap | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Through Hole | -40 °C | 105 ░C | Floating Bobbin Top Mount Opening | Non Specified - Single Edge | Gold | 10 Áin | 0.25 Ám | Green | Cantilever | Single | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
333-009 Series
9 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
