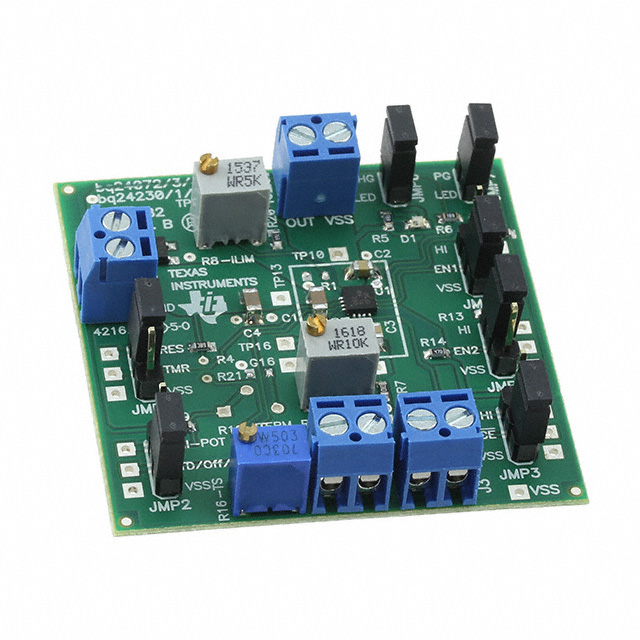

BQ24075TEVM
ActiveEVAL MODULE FOR BQ24075T
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ24075TEVM | BQ24075 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion |
| Battery Pack Voltage | - | 4.2 V |
| Charge Current - Max | - | 1.5 A |
| Contents | Board(s) | Board(s) |
| Current - Charging | - | Constant - Programmable |
| Embedded | False | False |
| Fault Protection | - | Reverse Current, Over Voltage, Over Temperature, Short Circuit |
| Function | Battery Charger | Battery Charger |
| Interface | - | USB |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 1 |
| Operating Temperature | - | -40 - 0 °C |
| Operating Temperature | - | 125 ¯C |
| Package / Case | - | 16-VFQFN Exposed Pad |
| Primary Attributes | Li-Ion / Li-Pol (1 Cell) | Li-Ion / Li-Pol (1 Cell) |
| Programmable Features | - | Current, Timer |
| Secondary Attributes | Charge Timer | Charge Timer |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 16-VQFN (3x3) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ24075T | BQ24075, BQ24075T |
| Voltage - Supply (Max) | - | 6.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 118.80 | |
BQ24075 Series
Standalone 1-cell 1.5-A linear battery charger, Power Path, 4.2-V VBAT and 5.5-V VOUT
| Part | Current - Charging | Battery Pack Voltage | Battery Chemistry | Number of Cells | Supplier Device Package | Voltage - Supply (Max) [Max] | Interface | Operating Temperature [Min] | Operating Temperature [Max] | Fault Protection | Programmable Features | Package / Case | Mounting Type | Charge Current - Max [Max] | Function | Contents | Embedded | Secondary Attributes | Supplied Contents | Utilized IC / Part | Type | Primary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ24075TRGTT | Constant - Programmable | 4.2 V | Lithium Ion | 1 | 16-VQFN (3x3) | 6.4 V | USB | 0 °C | 125 ¯C | Over Temperature, Over Voltage, Reverse Current, Short Circuit | Current, Timer | 16-VFQFN Exposed Pad | Surface Mount | 1.5 A | ||||||||
Texas Instruments BQ24075EVM | Battery Charger | Board(s) | Charge Timer | Board(s) | BQ24075 | Power Management | Li-Ion / Li-Pol (1 Cell) | |||||||||||||||
Texas Instruments BQ24075TEVM | Battery Charger | Board(s) | Charge Timer | Board(s) | BQ24075T | Power Management | Li-Ion / Li-Pol (1 Cell) | |||||||||||||||
Texas Instruments BQ24075TRGTR | Constant - Programmable | 4.2 V | Lithium Ion | 1 | 16-VQFN (3x3) | 6.4 V | USB | 0 °C | 125 ¯C | Over Temperature, Over Voltage, Reverse Current, Short Circuit | Current, Timer | 16-VFQFN Exposed Pad | Surface Mount | 1.5 A | ||||||||
Texas Instruments BQ24075RGTT | Constant - Programmable | 4.2 V | Lithium Ion | 1 | 16-VQFN (3x3) | 6.4 V | USB | -40 °C | 125 ¯C | Over Temperature, Over Voltage, Reverse Current, Short Circuit | Current, Timer | 16-VFQFN Exposed Pad | Surface Mount | 1.5 A | ||||||||
Texas Instruments BQ24075RGTR | Constant - Programmable | 4.2 V | Lithium Ion | 1 | 16-VQFN (3x3) | 6.4 V | USB | -40 °C | 125 ¯C | Over Temperature, Over Voltage, Reverse Current, Short Circuit | Current, Timer | 16-VFQFN Exposed Pad | Surface Mount | 1.5 A |
Description
General part information
BQ24075 Series
The BQ2407x series of devices are integrated Li-Ion linear chargers and system power path management devices targeted at space-limited portable applications. The devices operate from either a USB port or an AC adapter and support charge currents up to 1.5 A. The input voltage range with input overvoltage protection supports unregulated adapters. The USB input current limit accuracy and start up sequence allow the BQ2407x to meet USB-IF inrush current specifications. Additionally, the input dynamic power management (VIN-DPM) prevents the charger from crashing incorrectly configured USB sources.
The BQ2407x features dynamic power path management (DPPM) that powers the system while simultaneously and independently charging the battery. The DPPM circuit reduces the charge current when the input current limit causes the system output to fall to the DPPM threshold; thus, supplying the system load at all times while monitoring the charge current separately. This feature reduces the number of charge and discharge cycles on the battery, allows for proper charge termination and enables the system to run with a defective or absent battery pack.
Additionally, the regulated system input enables instant system turn-on when plugged in even with a totally discharged battery. The power path management architecture also lets the battery supplement the system current requirements when the adapter cannot deliver the peak system currents, thus enabling the use of a smaller adapter.
