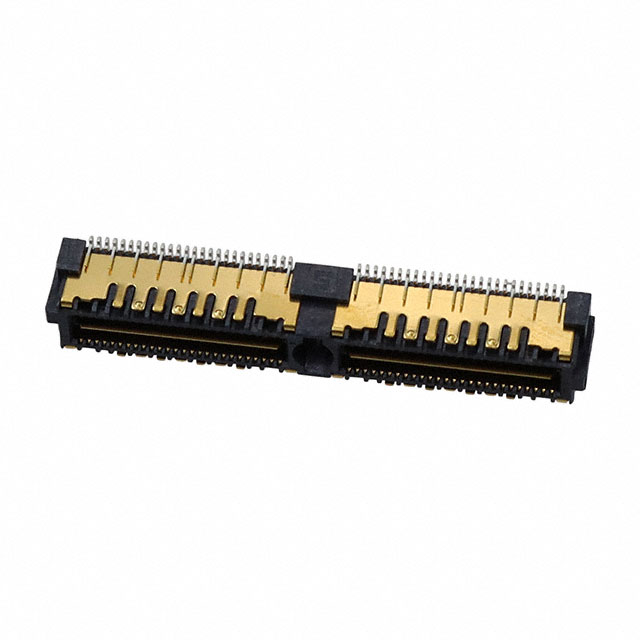

QMSS-032-06.75-L-D-DP-A
ActiveSamtec Inc.
0.64MM 2 64P VERTICAL WELDING SMD,P=0.64MM BOARD-TO-BOARD AND BACKPLANE CONNECTOR ROHS
Deep-Dive with AI
Search across all available documentation for this part.
QMSS-032-06.75-L-D-DP-A
ActiveSamtec Inc.
0.64MM 2 64P VERTICAL WELDING SMD,P=0.64MM BOARD-TO-BOARD AND BACKPLANE CONNECTOR ROHS
Technical Specifications
Parameters and characteristics for this part
| Specification | QMSS-032-06.75-L-D-DP-A |
|---|---|
| Connector Type | Differential Pair Array, Male |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Features | Board Guide, Shielded, Ground Bus (Plane) |
| Height Above Board | 0.265 in |
| Height Above Board | 6.73 mm |
| Mated Stacking Heights | 11 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 64 |
| Number of Rows | 2 |
| Pitch [x] | 0.64 mm |
| Pitch [x] | 0.025 in |
QMSS-032 Series
| Part | Mated Stacking Heights | Pitch [x] | Pitch [x] | Connector Type | Mounting Type | Number of Rows | Features | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Height Above Board | Height Above Board |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | 11 mm | 0.64 mm | 0.025 in | Differential Pair Array Male | Surface Mount | 2 | Board Guide Ground Bus (Plane) Power Pins (8) Shielded | 64 | 0.76 Ám | 30 Áin | Gold | 0.265 in | 6.73 mm |
Samtec Inc. | 11 mm | 0.64 mm | 0.025 in | Differential Pair Array Male | Surface Mount | 2 | Board Guide Ground Bus (Plane) Pick and Place Shielded | 64 | 0.25 Ám | 10 Áin | Gold | 0.265 in | 6.73 mm |
Samtec Inc. | 11 mm | 0.64 mm | 0.025 in | Differential Pair Array Male | Surface Mount | 2 | Board Guide Ground Bus (Plane) Shielded | 64 | 0.76 Ám | 30 Áin | Gold | 0.265 in | 6.73 mm |
Samtec Inc. | 11 mm | 0.64 mm | 0.025 in | Differential Pair Array Male | Surface Mount | 2 | Board Guide Ground Bus (Plane) Power Pins (4) Shielded | 64 | 0.25 Ám | 10 Áin | Gold | 0.265 in | 6.73 mm |
Samtec Inc. | 11 mm | 0.64 mm | 0.025 in | Differential Pair Array Male | Surface Mount | 2 | Board Guide Ground Bus (Plane) Pick and Place Shielded | 64 | 0.25 Ám | 10 Áin | Gold | 0.265 in | 6.73 mm |
Samtec Inc. | 11 mm | 0.64 mm | 0.025 in | Differential Pair Array Male | Surface Mount | 2 | Board Guide Ground Bus (Plane) Power Pins (4) Shielded | 64 | 0.76 Ám | 30 Áin | Gold | 0.265 in | 6.73 mm |
Samtec Inc. | 11 mm | 0.64 mm | 0.025 in | Differential Pair Array Male | Surface Mount | 2 | Board Guide Ground Bus (Plane) Shielded | 64 | 0.25 Ám | 10 Áin | Gold | 0.265 in | 6.73 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
QMSS-032 Series
64 Position Connector Differential Pair Array, Male Surface Mount Gold
