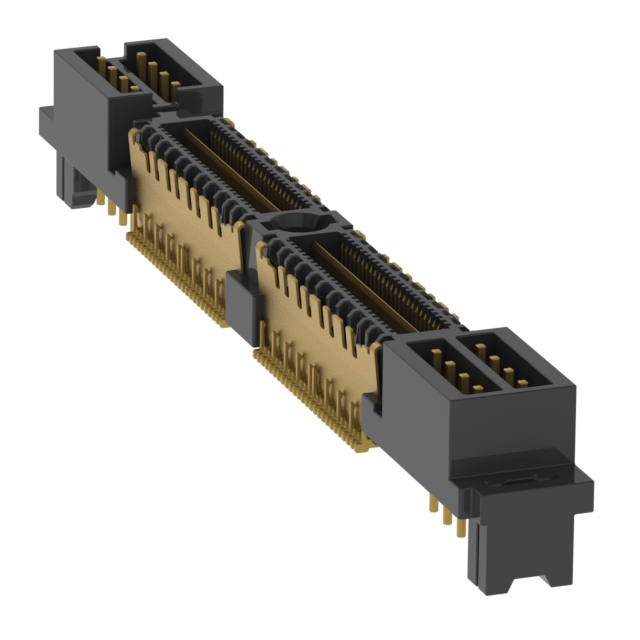

QMSS-032-01-H-D-DP-EM2-PC8

Active

Samtec Inc.

CONN DIFF ARRAY PLG 64P SMD GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QMSS-032-01-H-D-DP-EM2-PC8

Connector Type	Differential Pair Array, Male
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Shielded, Power Pins (8), Board Guide, Ground Bus (Plane)
Height Above Board	0.265 in
Height Above Board	6.73 mm
Mated Stacking Heights	11 mm
Mounting Type	Surface Mount
Number of Positions	64
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

QMSS-032 Series

Part	Mated Stacking Heights	Pitch [x]	Pitch [x]	Connector Type	Mounting Type	Number of Rows	Features	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Height Above Board	Height Above Board
Samtec Inc. QMSS-032-01-H-D-DP-EM2-PC8	11 mm	0.64 mm	0.025 in	Differential Pair Array Male	Surface Mount	2	Board Guide Ground Bus (Plane) Power Pins (8) Shielded	64	0.76 Ám	30 Áin	Gold	0.265 in	6.73 mm
Samtec Inc. QMSS-032-06.75-L-D-DP-K	11 mm	0.64 mm	0.025 in	Differential Pair Array Male	Surface Mount	2	Board Guide Ground Bus (Plane) Pick and Place Shielded	64	0.25 Ám	10 Áin	Gold	0.265 in	6.73 mm
Samtec Inc. QMSS-032-06.75-H-D-DP-A	11 mm	0.64 mm	0.025 in	Differential Pair Array Male	Surface Mount	2	Board Guide Ground Bus (Plane) Shielded	64	0.76 Ám	30 Áin	Gold	0.265 in	6.73 mm
Samtec Inc. QMSS-032-01-L-D-DP-EM2-PC4	11 mm	0.64 mm	0.025 in	Differential Pair Array Male	Surface Mount	2	Board Guide Ground Bus (Plane) Power Pins (4) Shielded	64	0.25 Ám	10 Áin	Gold	0.265 in	6.73 mm
Samtec Inc. QMSS-032-06.75-L-D-DP-A-GP-K	11 mm	0.64 mm	0.025 in	Differential Pair Array Male	Surface Mount	2	Board Guide Ground Bus (Plane) Pick and Place Shielded	64	0.25 Ám	10 Áin	Gold	0.265 in	6.73 mm
Samtec Inc. QMSS-032-06.75-H-D-DP-PC4	11 mm	0.64 mm	0.025 in	Differential Pair Array Male	Surface Mount	2	Board Guide Ground Bus (Plane) Power Pins (4) Shielded	64	0.76 Ám	30 Áin	Gold	0.265 in	6.73 mm
Samtec Inc. QMSS-032-06.75-L-D-DP-A	11 mm	0.64 mm	0.025 in	Differential Pair Array Male	Surface Mount	2	Board Guide Ground Bus (Plane) Shielded	64	0.25 Ám	10 Áin	Gold	0.265 in	6.73 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	26	$ 39.10

Description

General part information

QMSS-032 Series

64 Position Connector Differential Pair Array, Male Surface Mount Gold
